APC Smart-UPS SRT 10000VA 230V
SRT10KXLI
Novi proizvod
3 - 5 radnih dana
3 god.
Količina: 1 raspoloživ (kod dobavljača)
- Odstrani ovaj proizvod iz najdražih proizvoda
- Dodaj ovaj proizvod u najdraže proizvode
- Ispis
Podaci
| Width | 26.30 cm |
| Height | 43.20 cm |
| Depth | 71.50 cm |
| Battery Recharge Time | 1.5 h |
| Battery Life | 3...5 year(s) |
| Battery type | Lead-acid battery |
| Type of execution | Tower |
| Main Input Voltage | 230 V |
| Main Output Voltage | 230 V |
| Rated power in W | 10 kW |
| Rated power in VA | 10 kVA |
| Product or component type | Uninterruptible power supply (UPS) |
| Output Connection Type | 6 IEC 60320 C13, 3 IEC Jumpers, 4 IEC 60320 C19 |
| Provided equipment | User manual |
| Redundant | No |
| net. Weight | 111.82 kg |
| Mounting preference | No preference |
| Mounting mode | Rack-mounted with kit |
| USB compatible | Yes |
| Network frequency | 40...70 Hz auto-sensing |
| Input voltage limits | 100...275 V adjustable (for half load), 173...476 V adjustable (for half load) |
| Maximum configurable power in VA | 10 kVA |
| Maximum configurable power in W | 10 kW |
| Output frequency | 50/60 Hz +/- 3 Hz sync to mains |
| UPS type | Double conversion online |
| Wave type | Sine wave |
| Product certifications | CE, EAC, IRAM, RCM, VDE |
| Standards | EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018 |
| Ambient air temperature for operation | 0..40 °C |
| Relative humidity | 0…95 % |
| Operating altitude | 0...10000 ft |
| Ambient air temperature for storage | -15…45 °C |
| Storage Relative Humidity | 0…95 % |
| Storage altitude | 0.0000000000…15240.0000000000 m |
| Acoustic level | 55 dBA |
| Alarm | Audible and visible alarms : prioritized by severity |
| Surge energy rate | 480 J |
| Battery charger power | 876 W nominal |
| Mounting location | Front |
Više informacija
Output power 10.0 kW / 10.0 kVA
Maximum specified power(W) 10.0 kW / 10.0 kVA
Rated output voltage 230V
Distortion of the output voltage shape Less than 2%
Output frequency (synchronized with the power grid) 50/60Hz +/- 3 Hz
Other output voltages 220, 240
Peak load factor 03:01
Topology Double transformation
Type of voltage waveform Sinusoidal signal

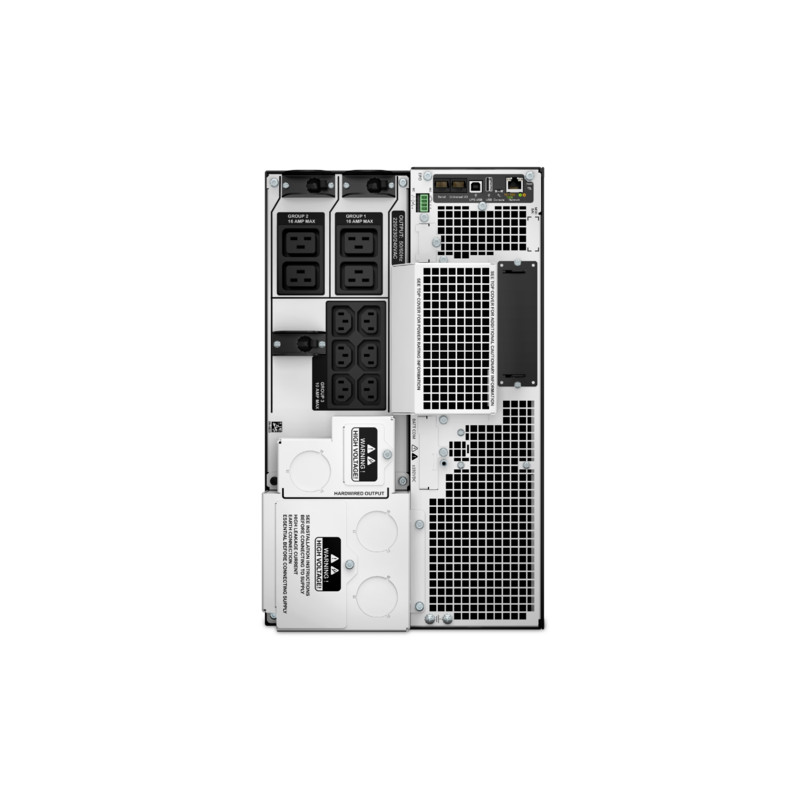

Output connectors
(6) IEC 320 C13 (Battery backup)
(4) IEC 320 C19 (Battery backup)
(1) Hard Wire 3-wire (H N+G) (Battery backup)
(3) IEC Jumpers (Battery backup)
Bypass Internal bypass (with automatic or manual activation)
Rated input voltage 230V, 400V 3PH
Input frequency 40-70 Hz (automatic detection)
Input connection type Hard Wire 3 wire (1PH+N+G), Hard Wire 5-wire (3PH + N + G)
Input voltage range when operating from the mains 160 - 275V
Variable (adjustable) input voltage range 100 - 275 (half load), 173 - 476 (half load)To
other input voltage values 220, 240, 380, 415
Maximum specified power(W) 10.0 kW / 10.0 kVA
Rated output voltage 230V
Distortion of the output voltage shape Less than 2%
Output frequency (synchronized with the power grid) 50/60Hz +/- 3 Hz
Other output voltages 220, 240
Peak load factor 03:01
Topology Double transformation
Type of voltage waveform Sinusoidal signal
Output connectors
(6) IEC 320 C13 (Battery backup)
(4) IEC 320 C19 (Battery backup)
(1) Hard Wire 3-wire (H N+G) (Battery backup)
(3) IEC Jumpers (Battery backup)
Bypass Internal bypass (with automatic or manual activation)
Rated input voltage 230V, 400V 3PH
Input frequency 40-70 Hz (automatic detection)
Input connection type Hard Wire 3 wire (1PH+N+G), Hard Wire 5-wire (3PH + N + G)
Input voltage range when operating from the mains 160 - 275V
Variable (adjustable) input voltage range 100 - 275 (half load), 173 - 476 (half load)To
other input voltage values 220, 240, 380, 415
