- Jamstvo: 3 god.
Vaša prava iz zakonskog jamstva
- Odstrani ovaj proizvod iz najdražih proizvoda
- Dodaj ovaj proizvod u najdraže proizvode
- Ispis
Specifikacije
- Width
- 13.00 cm
- Height
- 43.20 cm
- Depth
- 71.94 cm
- Battery Recharge Time
- 1.5 h
- Battery Life
- 3...5 year(s)
- Battery type
- Lead-acid battery
- Type of execution
- Rackmount / Tower
- Main Input Voltage
- 230 V
- Main Output Voltage
- 230 V
- Rated power in W
- 4.5 kW
- Rated power in VA
- 5 kVA
- Product or component type
- Uninterruptible power supply (UPS)
- Output Connection Type
- 6 IEC 60320 C13, 2 IEC Jumpers, 4 IEC 60320 C19
- Provided equipment
- USB cable
- Battery voltage
- 192 V
- Redundant
- No
- net. Weight
- 54.43 kg
- Mounting preference
- No preference
- Mounting mode
- Rack-mounted with kit
- USB compatible
- Yes
- Network frequency
- 40...70 Hz auto-sensing
- Input voltage limits
- 100...275 V adjustable (for half load)
- Maximum configurable power in VA
- 5000 VA
- Maximum configurable power in W
- 4500 W
- Output frequency
- 50/60 Hz +/- 3 Hz synchronized with the power grid
- UPS type
- Double conversion online
- Wave type
- Sine wave
- Product certifications
- CE, EAC, IRAM, RCM, VDE
- Standards
- EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018
- Ambient air temperature for operation
- 0..40 °C
- Relative humidity
- 0…95 %
- Operating altitude
- 0...10000 ft
- Ambient air temperature for storage
- -15…45 °C
- Storage Relative Humidity
- 0…95 %
- Storage altitude
- 0.0000000000…15240.0000000000 m
- Acoustic level
- 55 dBA
- Alarm
- Audible and visible alarms : prioritized by severity
- Surge energy rate
- 480 J
- Battery charger power
- 560 W nominal
- Mounting location
- Front
- Number of power module free slots
- 0
- Number of battery filled slots
- 2
- Number of battery free slots
- 0
- Fiscalization 2.0 Article
- G46.50.22
- Number of power module filled slots
- 0
Opis
Main features
- Working time with load: 4500W: 3m 59s
- Output power: 4.5kW / 5.0kVA

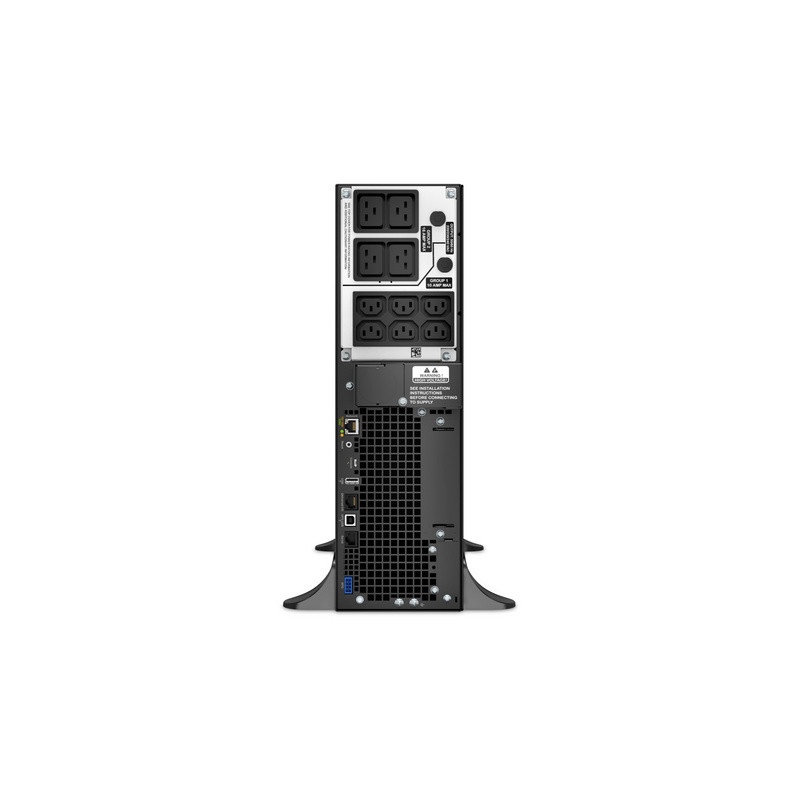

- Output connectors:
(4) IEC 60320 C19 (Battery backup)
(2) IEC Jumpers (Battery Backup)
(6) IEC 60320 C13 (Battery backup)
- Rated output voltage: 230V
- Rated input voltage: 230V
- Input connection type: Hard wire 3-wire (1P + N + E)
Exit
- Maximum set power (W): 4.5kW / 5.0kVA
- Distortion of the output voltage shape: Less than 2%
- Output frequency (synchronized with the power grid): 50/60 Hz +/- 3 Hz Synchronized with the power grid
- Other output voltages: 220V, 240V
- Peak load factor: 3:1
- Topology: Topology double conversion
- Type of voltage form: Sinusoidal signal
- Bypass: Internal bypass (with automatic or manual activation)
Entrance
- Input frequency: 40 - 70 Hz Auto detection
- Input voltage range during mains operation: 100 - 275 Adjustable (half load), 160–275V
- Other input voltage values: 220 V, 240 V
Batteries and battery life
- Battery Type: Lead acid battery
- Pre-installed batteries: 2
- Typical recharge time: 1.5hours
- Rated battery voltage: 192 V
- Replaceable battery: APCRBC140
- Expected battery life (years): 3 - 5
- RBC™ quantity: 1
- Charger power (W): 560 Watts
Communication and administrative tools
- Interface Port(s): RJ-45 10/100 Base-T, RJ-45 Serial, Smart-Slot, USB
- Control panel: Multifunctional monitoring and control console with LCD indicator
- Sound signal: Audio and visual signals with a system of priorities according to severity
- Emergency Power Off (EPO): Yes
- Number of SmartSlot™ interfaces available: 1
Surge protection and noise filtering
- Burst energy rating: 480joules
Physical parameters
- Maximum height: 432MM, 43.2cm
- Maximum width: 130MM, 13.0cm
- Maximum depth: 719MM, 71.94cm
- Net weight: 54.43 kg
- Gross weight: 63.6 kg
- Dimensions of the transport package: 330x610x960MM
- Color: Black
- Devices on the pallet: 6.0
Environmental Parameters
- Operating temperature: 0 - 40 °C
- Operating range of relative humidity: 0 - 95 (Non-condensing)%
- Operating range of altitude above sea level: 0 - 3048 meters
- Storage temperature: -15 - 45 °C
- Relative humidity of storage: 0 - 95 (Non-condensing) %
- Storage altitude: 0 - 15240 meters
- Acoustic noise level at a distance of 1 m from the surface of the device: 55.0dB(A)
- Operational heat dissipation: 931.0BTU/hour
- Protection class: IP20
Accordance
- Compliance with the requirements: CE, CE mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, VDE
- Working time with load: 4500W: 3m 59s
- Output power: 4.5kW / 5.0kVA
- Output connectors:
(4) IEC 60320 C19 (Battery backup)
(2) IEC Jumpers (Battery Backup)
(6) IEC 60320 C13 (Battery backup)
- Rated output voltage: 230V
- Rated input voltage: 230V
- Input connection type: Hard wire 3-wire (1P + N + E)
Exit
- Maximum set power (W): 4.5kW / 5.0kVA
- Distortion of the output voltage shape: Less than 2%
- Output frequency (synchronized with the power grid): 50/60 Hz +/- 3 Hz Synchronized with the power grid
- Other output voltages: 220V, 240V
- Peak load factor: 3:1
- Topology: Topology double conversion
- Type of voltage form: Sinusoidal signal
- Bypass: Internal bypass (with automatic or manual activation)
Entrance
- Input frequency: 40 - 70 Hz Auto detection
- Input voltage range during mains operation: 100 - 275 Adjustable (half load), 160–275V
- Other input voltage values: 220 V, 240 V
Batteries and battery life
- Battery Type: Lead acid battery
- Pre-installed batteries: 2
- Typical recharge time: 1.5hours
- Rated battery voltage: 192 V
- Replaceable battery: APCRBC140
- Expected battery life (years): 3 - 5
- RBC™ quantity: 1
- Charger power (W): 560 Watts
Communication and administrative tools
- Interface Port(s): RJ-45 10/100 Base-T, RJ-45 Serial, Smart-Slot, USB
- Control panel: Multifunctional monitoring and control console with LCD indicator
- Sound signal: Audio and visual signals with a system of priorities according to severity
- Emergency Power Off (EPO): Yes
- Number of SmartSlot™ interfaces available: 1
Surge protection and noise filtering
- Burst energy rating: 480joules
Physical parameters
- Maximum height: 432MM, 43.2cm
- Maximum width: 130MM, 13.0cm
- Maximum depth: 719MM, 71.94cm
- Net weight: 54.43 kg
- Gross weight: 63.6 kg
- Dimensions of the transport package: 330x610x960MM
- Color: Black
- Devices on the pallet: 6.0
Environmental Parameters
- Operating temperature: 0 - 40 °C
- Operating range of relative humidity: 0 - 95 (Non-condensing)%
- Operating range of altitude above sea level: 0 - 3048 meters
- Storage temperature: -15 - 45 °C
- Relative humidity of storage: 0 - 95 (Non-condensing) %
- Storage altitude: 0 - 15240 meters
- Acoustic noise level at a distance of 1 m from the surface of the device: 55.0dB(A)
- Operational heat dissipation: 931.0BTU/hour
- Protection class: IP20
Accordance
- Compliance with the requirements: CE, CE mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, VDE
