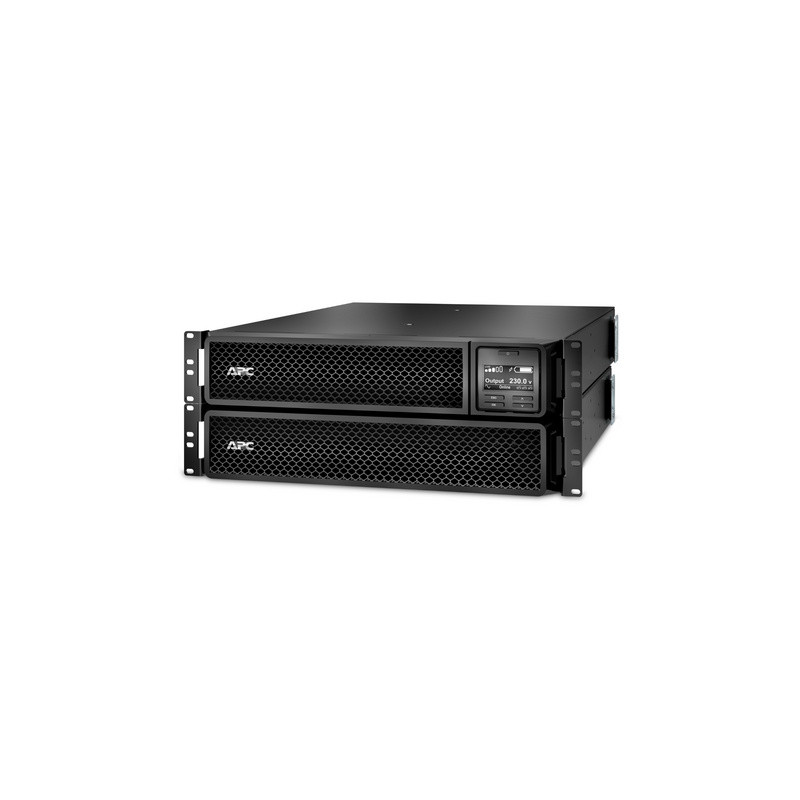

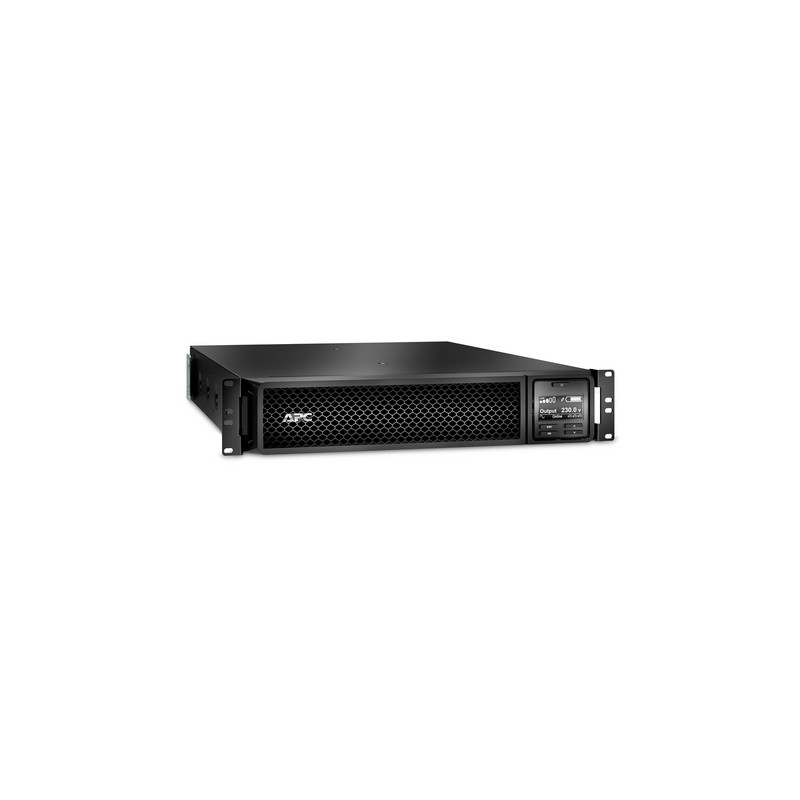

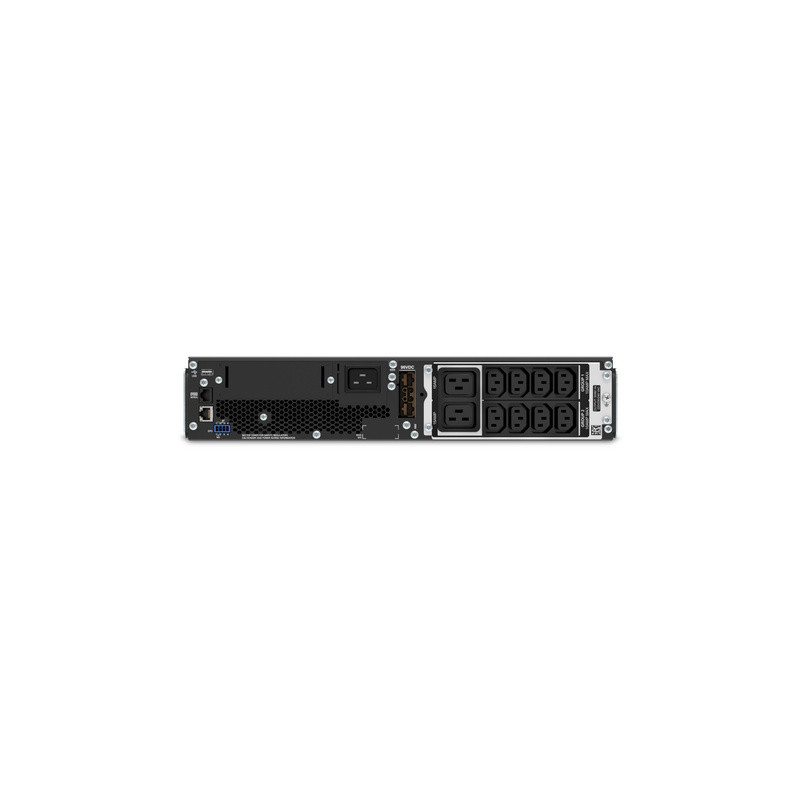

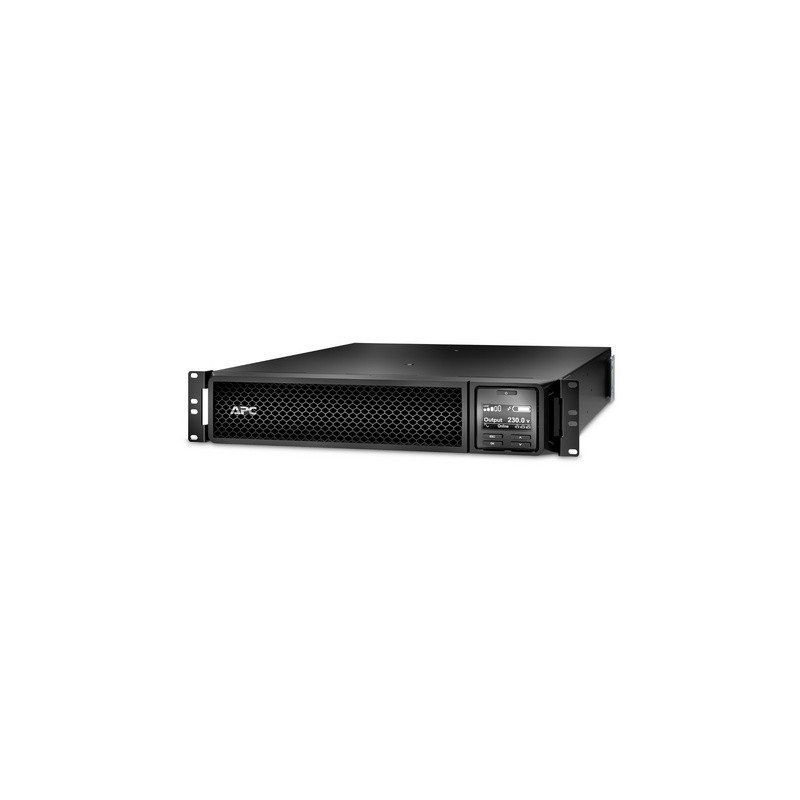

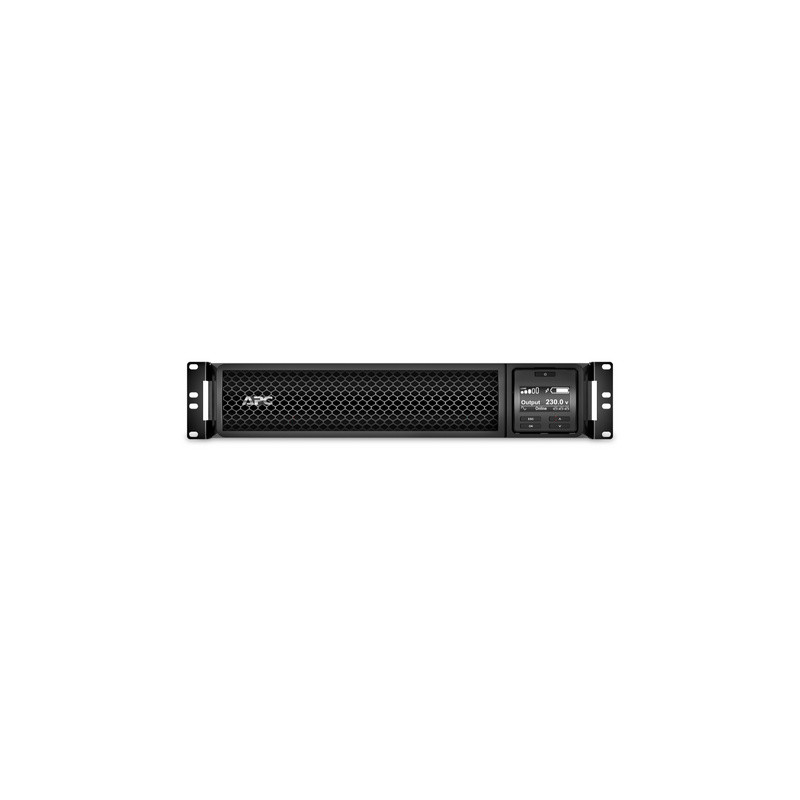

APC Smart-UPS SRT 3000VA RM 230V
SRT3000RMXLI
Novi proizvod
3 - 5 radnih dana
3 god.
Količina: 2 raspoloživa (kod dobavljača)
- Odstrani ovaj proizvod iz najdražih proizvoda
- Dodaj ovaj proizvod u najdraže proizvode
- Ispis
Podaci
| Width | 43.20 cm |
| Height | 8.50 cm |
| Depth | 63.50 cm |
| Battery Recharge Time | 3 h |
| Cable Length | 2.4 m |
| Battery Life | 3...5 year(s) |
| Battery type | Lead-acid battery |
| Type of execution | Rackmount |
| Main Input Voltage | 230 V |
| Main Output Voltage | 230 V |
| Rated power in W | 2.7 kW |
| Rated power in VA | 3 kVA |
| Product or component type | Uninterruptible power supply (UPS) |
| Input Connection Type | BS1363A British, IEC 320 C20, Schuko CEE 7 / EU1-16P |
| Output Connection Type | 8 IEC 60320 C13, 2 IEC Jumpers, 2 IEC 60320 C19 |
| Number of cables | 1 |
| Provided equipment | USB cable |
| Battery voltage | 96 V |
| Redundant | No |
| net. Weight | 31.30 kg |
| Mounting preference | Lower |
| Mounting mode | Rack-mounted |
| USB compatible | Yes |
| Network frequency | 40...70 Hz auto-sensing |
| Input voltage limits | 100...275 V adjustable (for half load) |
| Maximum configurable power in VA | 3000 VA |
| Maximum configurable power in W | 2700 W |
| Output frequency | 50/60 Hz +/- 3 Hz sync to mains |
| UPS type | Double conversion online |
| Wave type | Sine wave |
| Product certifications | CE, EAC, RCM, VDE, UK PSTI |
| Standards | EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018 |
| Ambient air temperature for operation | 0..40 °C |
| Relative humidity | 0…95 % |
| Operating altitude | 0...10000 ft |
| Ambient air temperature for storage | -15…45 °C |
| Storage Relative Humidity | 0…95 % |
| Storage altitude | 0.0000000000…15240.0000000000 m |
| Acoustic level | 55 dBA |
| Alarm | Audible and visible alarms : prioritized by severity |
| Surge energy rate | 340 J |
| Battery charger power | 168 W nominal |
| Mounting location | Front |
| Number of battery filled slots | 1 |
Više informacija
Main
Main input voltage
230 V
Other input voltage
220 V
240 V
Main output voltage
230 V
Other output voltage
220 V
240 V
Rated power, W
2700 W
Rated power in VA
3000 VA
Type of input connection
BS1363A British
IEC 60320 C20
Shuko CEE 7 / EU1-16P
Type of output connection
8 IEC 60320 C13
2 IEC jumpers
2 IEC 60320 C19
Number of racks
2U
Cable length
2.44 m
Number of cables
1
Battery Type
Lead-acid battery
Batteries and operating time
Number of filled battery slots
1
Battery recharge time
3 hours
Number of batteries to replace
1
Battery voltage
96 V
Battery charger power
Rated power 168 Watts
Battery power in VAH
Working time 505 VACH
Battery life
is 3...5 years
Spare battery
APCRBC152
Battery option
SRT96RMBP 1 1515 VACH
SRT96RMBP 2 2525 VACH
SRT96RMBP 3 3535 VACH
SRT96RMBP 4 4545 VACH
SRT96RMBP 5 5555 VACH
SRT96RMBP 6 6565 VACH
SRT96RMBP 8 8585 VACH
SRT96RMBP 10 10605 VACH
Extended working time
1
General
A subfamily of product websites
High density
The number of free slots of the power supply module
is 0
The number of filled slots of the power supply module
is 0
Redundant
No
Physical
Colour
Black
Height
8.5 cm
Width
43.2 cm
Depth
63.5 cm
Net weight
31.3 kg
Installation location
The front one
Installation preferences
Below
Installation mode
Rack-mounted
Possibility of installation on two racks
0
USB-compatible
Yes
Mounting position
Horizontal
Entrance
Network frequency
Auto-detection 40...70 Hz
The limits of the input voltage
are 100...275 V adjustable (half load)
Exit
The maximum adjustable power in watts
is 2700 watts
Harmonic distortion
Less than 2 %
Output frequency
50/60 Hz +/- 3 Hz, network synchronization
The Cross factor
3 : 1
Type of UPS
Double Conversion Online
Type of wave
The sine wave
Bypass type
Internal bypass (automatic and manual)
The maximum adjustable power in VA
is 3000 VA
Accordance
CE
EAC Product Certificates
RKM
VDE
Marking
CE marking
Standards
EN/IEC 62040-1:2019/A11:2021
EN/IEC 62040-2:2006/AC:2006
EN/IEC 62040-2:2018
Environmental
Ambient air temperature during operation
0...40 °C
Relative humidity
0...95 % non-condensing
Working height
0...10000 feet
Ambient temperature during storage
-15...45 °C
Relative humidity of storage
0...95% without condensation
Storage height
0.00...15240.00 m
The acoustic level
is 55 dBA
Heat dissipation
703 BTU/h
degree of protection IP
IP20
Communications and management
Free Slots
1
Anxiety
Audible and visual alarms: priorities according to severity
Emergency power off
Yes
Surge protection and filtration
Pulse energy rate
340 J
Main input voltage
230 V
Other input voltage
220 V
240 V
Main output voltage
230 V
Other output voltage
220 V
240 V
Rated power, W
2700 W
Rated power in VA
3000 VA
Type of input connection
BS1363A British
IEC 60320 C20
Shuko CEE 7 / EU1-16P
Type of output connection
8 IEC 60320 C13
2 IEC jumpers
2 IEC 60320 C19
Number of racks
2U
Cable length
2.44 m
Number of cables
1
Battery Type
Lead-acid battery
Batteries and operating time
Number of filled battery slots
1
Battery recharge time
3 hours
Number of batteries to replace
1
Battery voltage
96 V
Battery charger power
Rated power 168 Watts
Battery power in VAH
Working time 505 VACH
Battery life
is 3...5 years
Spare battery
APCRBC152
Battery option
SRT96RMBP 1 1515 VACH
SRT96RMBP 2 2525 VACH
SRT96RMBP 3 3535 VACH
SRT96RMBP 4 4545 VACH
SRT96RMBP 5 5555 VACH
SRT96RMBP 6 6565 VACH
SRT96RMBP 8 8585 VACH
SRT96RMBP 10 10605 VACH
Extended working time
1
General
A subfamily of product websites
High density
The number of free slots of the power supply module
is 0
The number of filled slots of the power supply module
is 0
Redundant
No
Physical
Colour
Black
Height
8.5 cm
Width
43.2 cm
Depth
63.5 cm
Net weight
31.3 kg
Installation location
The front one
Installation preferences
Below
Installation mode
Rack-mounted
Possibility of installation on two racks
0
USB-compatible
Yes
Mounting position
Horizontal
Entrance
Network frequency
Auto-detection 40...70 Hz
The limits of the input voltage
are 100...275 V adjustable (half load)
Exit
The maximum adjustable power in watts
is 2700 watts
Harmonic distortion
Less than 2 %
Output frequency
50/60 Hz +/- 3 Hz, network synchronization
The Cross factor
3 : 1
Type of UPS
Double Conversion Online
Type of wave
The sine wave
Bypass type
Internal bypass (automatic and manual)
The maximum adjustable power in VA
is 3000 VA
Accordance
CE
EAC Product Certificates
RKM
VDE
Marking
CE marking
Standards
EN/IEC 62040-1:2019/A11:2021
EN/IEC 62040-2:2006/AC:2006
EN/IEC 62040-2:2018
Environmental
Ambient air temperature during operation
0...40 °C
Relative humidity
0...95 % non-condensing
Working height
0...10000 feet
Ambient temperature during storage
-15...45 °C
Relative humidity of storage
0...95% without condensation
Storage height
0.00...15240.00 m
The acoustic level
is 55 dBA
Heat dissipation
703 BTU/h
degree of protection IP
IP20
Communications and management
Free Slots
1
Anxiety
Audible and visual alarms: priorities according to severity
Emergency power off
Yes
Surge protection and filtration
Pulse energy rate
340 J
