- Jamstvo: 3 god.
Vaša prava iz zakonskog jamstva
- Odstrani ovaj proizvod iz najdražih proizvoda
- Dodaj ovaj proizvod u najdraže proizvode
- Ispis
Specifikacije
- Width
- 8.50 cm
- Height
- 43.20 cm
- Depth
- 63.50 cm
- Battery Recharge Time
- 3 h
- Cable Length
- 2.4 m
- Mounting Position
- Vertical
- Battery Life
- 3...5 year(s)
- Type of execution
- Rackmount
- Main Input Voltage
- 230 V
- Main Output Voltage
- 230 V
- Rated power in W
- 2.7 kW
- Rated power in VA
- 3 kVA
- Product or component type
- Uninterruptible power supply (UPS)
- Input Connection Type
- BS1363A British, IEC 320 C20, Schuko CEE 7 / EU1-16P
- Output Connection Type
- 8 IEC 320 C13, 2 IEC Jumpers, 2 IEC 320 C19
- Number of cables
- 3
- Provided equipment
- CD with software, Removable country-specific power cord, Documentation CD, Installation guide, Removable support feet, USB cable, Warranty card
- Battery voltage
- 96 V
- Redundant
- No
- net. Weight
- 31.30 kg
- Mounting preference
- Lower
- Mounting mode
- Rack-mounted with kit
- USB compatible
- Yes
- Network frequency
- 40...70 Hz auto-sensing
- Input voltage limits
- 100...275 V adjustable (for half load)
- Maximum configurable power in VA
- 3000 VA
- Maximum configurable power in W
- 2700 W
- Output frequency
- 50/60 Hz +/- 3 Hz sync to mains
- UPS type
- Double conversion online, On-line
- Wave type
- Sine wave
- Product certifications
- CE, EAC, RCM, VDE, UK PSTI
- Standards
- EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018
- Ambient air temperature for operation
- 0..40 °C
- Relative humidity
- 0…95 %
- Operating altitude
- 0...10000 ft
- Ambient air temperature for storage
- -15…45 °C
- Storage Relative Humidity
- 0…95 %
- Storage altitude
- 0.0000000000…15240.0000000000 m
- Acoustic level
- 55 dBA
- Alarm
- Audible and visible alarms : prioritized by severity
- Surge energy rate
- 340 J
- Battery charger power
- 168 W rated
- Mounting location
- Front
- Number of battery replacement quantity
- 1
- Number of power module free slots
- 0
- Emergency power off
- Yes
- Replacement battery
- APCRBC152
- Extended runtime
- 1
- Product web sub-family
- High density
- Colour
- Black
- Output harmonic distortion
- Less than 2 %
- Bypass type
- Internal bypass (automatic and manual)
- Crest factor
- 3 : 1
- Heat dissipation
- 206.00 W
- Free slots
- 1
- Two post mountable
- 0
- Fiscalization 2.0 Article
- G46.50.22
- Number of power module filled slots
- 0
Opis
Main features
- Working time with load: 2700 W: 3m 58s
- Output power: 2.7 kW / 3.0 kVA

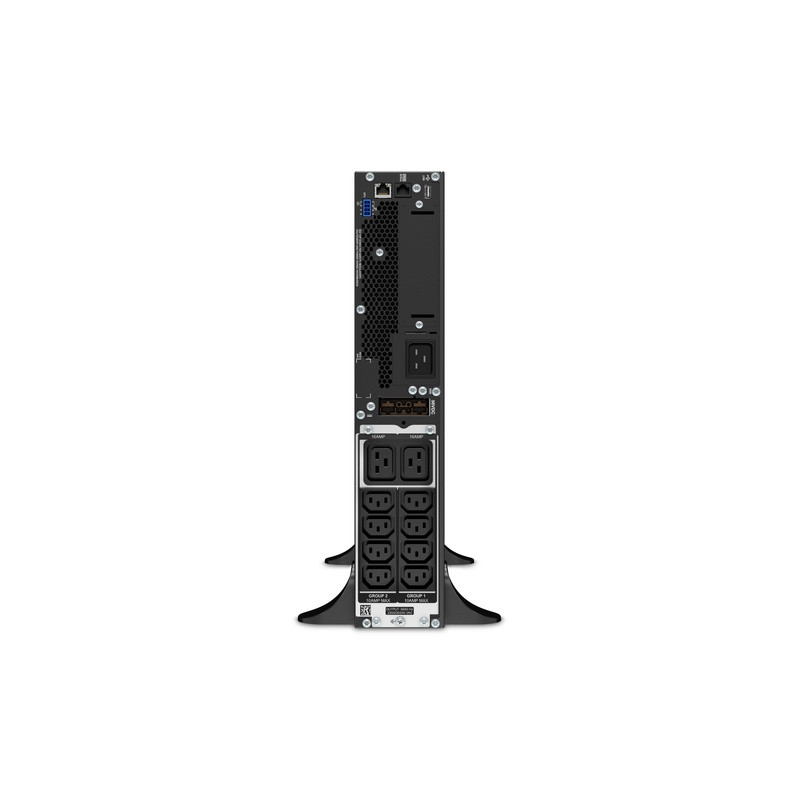

- Output connectors:
(8) IEC 60320 C13 (Battery backup)
(2) IEC 320 C19 (Battery backup)
(8) IEC 320 C13 (Battery backup)
(2) IEC Jumpers (Battery Backup)
(2) IEC 60320 C19 (Battery backup)
- Rated output voltage: 230V
- Rated input voltage: 230V
- Input connection type: BS1363A British, IEC 60320 C20, Schuko CEE 7 / EU1-16P
- Length of the cord: 2.4 meters
Exit
- Maximum specified power (W): 2.7 kW / 3.0 kVA
- Output voltage level: It can be configured to work with an output voltage of 220 : 230 or 240 V
- Distortion of the output voltage shape: Less than 2%
- Output frequency (synchronized with the power grid): 50/60 Hz +/- 3 Hz Synchronized with the power grid
- Other output voltages: 220 V, 240 V
- Peak load factor: 3:1
-Topology: Topology double transformation
- Type of voltage form: Sinusoidal signal
- Bypass: Internal bypass (with automatic or manual activation)
Entrance
- Input frequency: 40-70 Hz Auto-detection
- Input voltage range when operating from the mains: 100-275 Adjustable (half load), 160-275V
- Number of power cables: 3
- Other input voltage values: 220 V, 240 V
Batteries and battery life
- Battery Type: Lead-acid battery
- Typical recharge time: 3 hours
- Rated battery voltage: 96 V
- Replaceable battery: APCRBC152
- Expected battery life (years): 3-5
- RBC™ quantity: 1
- Charger Power (W): 168 Watts
Communication and administrative tools
- Interface Port (s): RJ-45 Serial, Smart-Slot, USB
- Control panel: Multifunctional monitoring and control console with LCD indicator
- Audio signal: Audio and visual signals with a system of priorities according to the degree of severity
- Emergency Power Off (EPO): Yes
- Number of available SmartSlot™ interfaces: 1
Surge protection and noise filtering
- Burst energy rating: 340 joules
Physical parameters
- Maximum height: 432MM, 43.2 cm
-Maximum width: 85MM, 8.5 cm
- Maximum DEPTH: 635MM, 63.5 cm
- Net weight: 31.3 KG
- Gross weight: 36.74 KG
- Dimensions of the TRANSPORT package: 246x599x871MM
- Color: Black
- Devices on the pallet: 6.0
Environmental parameters
- Operating temperature: 0 - 40 °C
- Operating range of relative humidity: 0-95 (Non-condensing) %
- Operating range of altitude above sea level: 0-3048 meters
- Storage temperature: -15-45 °C
- Storage Relative Humidity: 0-95 (Non-condensing) %
- Storage height above sea level: 0-15240 meters
- The level of acoustic noise at a distance of 1 m from the surface of the device: 55.0 dB (A)
- Heat dissipation in the operational mode: 703.0 BTU/hour
- Protection class: IP20
Compliance
- Compliance with the requirements: CE, CE mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE
Standard warranty: 3 years warranty for repair or replacement (except for the battery), for the battery — 2 years
- Working time with load: 2700 W: 3m 58s
- Output power: 2.7 kW / 3.0 kVA
- Output connectors:
(8) IEC 60320 C13 (Battery backup)
(2) IEC 320 C19 (Battery backup)
(8) IEC 320 C13 (Battery backup)
(2) IEC Jumpers (Battery Backup)
(2) IEC 60320 C19 (Battery backup)
- Rated output voltage: 230V
- Rated input voltage: 230V
- Input connection type: BS1363A British, IEC 60320 C20, Schuko CEE 7 / EU1-16P
- Length of the cord: 2.4 meters
Exit
- Maximum specified power (W): 2.7 kW / 3.0 kVA
- Output voltage level: It can be configured to work with an output voltage of 220 : 230 or 240 V
- Distortion of the output voltage shape: Less than 2%
- Output frequency (synchronized with the power grid): 50/60 Hz +/- 3 Hz Synchronized with the power grid
- Other output voltages: 220 V, 240 V
- Peak load factor: 3:1
-Topology: Topology double transformation
- Type of voltage form: Sinusoidal signal
- Bypass: Internal bypass (with automatic or manual activation)
Entrance
- Input frequency: 40-70 Hz Auto-detection
- Input voltage range when operating from the mains: 100-275 Adjustable (half load), 160-275V
- Number of power cables: 3
- Other input voltage values: 220 V, 240 V
Batteries and battery life
- Battery Type: Lead-acid battery
- Typical recharge time: 3 hours
- Rated battery voltage: 96 V
- Replaceable battery: APCRBC152
- Expected battery life (years): 3-5
- RBC™ quantity: 1
- Charger Power (W): 168 Watts
Communication and administrative tools
- Interface Port (s): RJ-45 Serial, Smart-Slot, USB
- Control panel: Multifunctional monitoring and control console with LCD indicator
- Audio signal: Audio and visual signals with a system of priorities according to the degree of severity
- Emergency Power Off (EPO): Yes
- Number of available SmartSlot™ interfaces: 1
Surge protection and noise filtering
- Burst energy rating: 340 joules
Physical parameters
- Maximum height: 432MM, 43.2 cm
-Maximum width: 85MM, 8.5 cm
- Maximum DEPTH: 635MM, 63.5 cm
- Net weight: 31.3 KG
- Gross weight: 36.74 KG
- Dimensions of the TRANSPORT package: 246x599x871MM
- Color: Black
- Devices on the pallet: 6.0
Environmental parameters
- Operating temperature: 0 - 40 °C
- Operating range of relative humidity: 0-95 (Non-condensing) %
- Operating range of altitude above sea level: 0-3048 meters
- Storage temperature: -15-45 °C
- Storage Relative Humidity: 0-95 (Non-condensing) %
- Storage height above sea level: 0-15240 meters
- The level of acoustic noise at a distance of 1 m from the surface of the device: 55.0 dB (A)
- Heat dissipation in the operational mode: 703.0 BTU/hour
- Protection class: IP20
Compliance
- Compliance with the requirements: CE, CE mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE
Standard warranty: 3 years warranty for repair or replacement (except for the battery), for the battery — 2 years
