APC

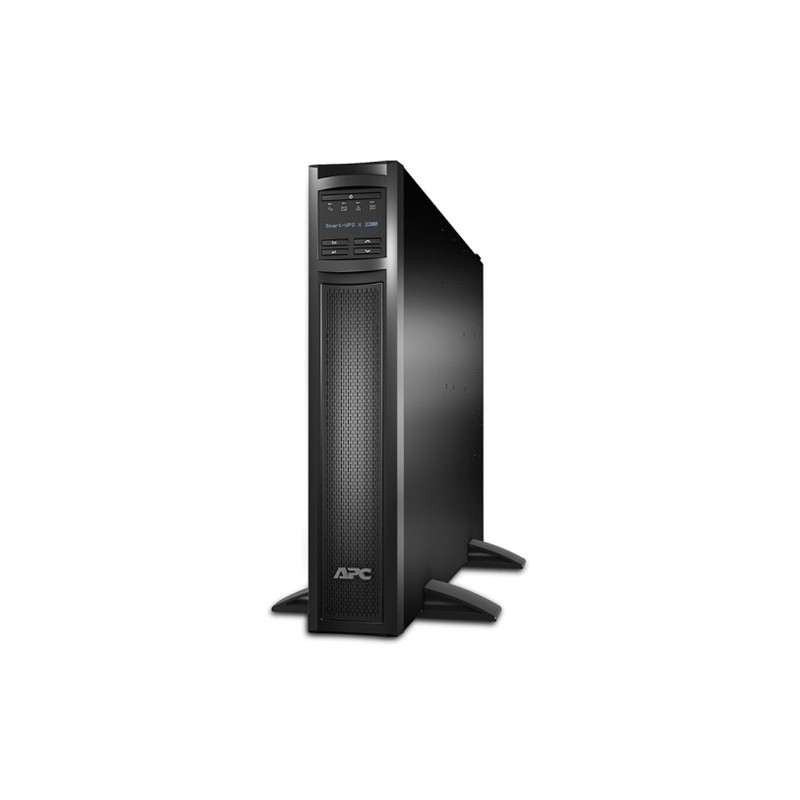

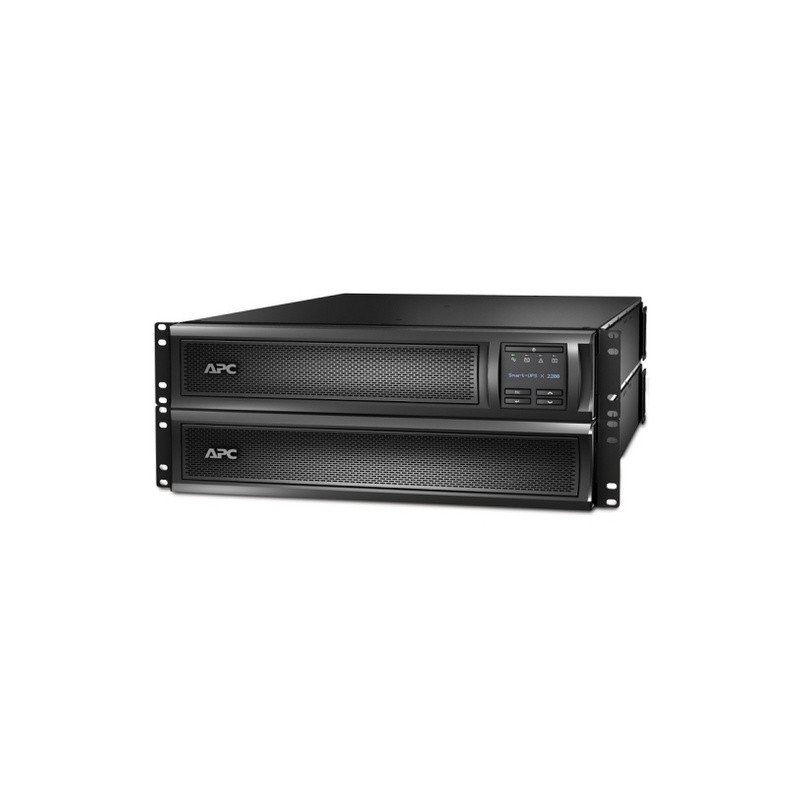

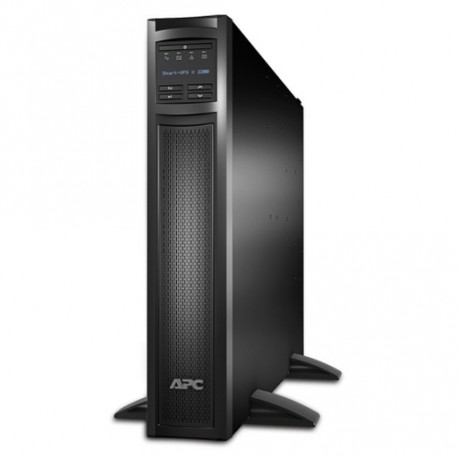

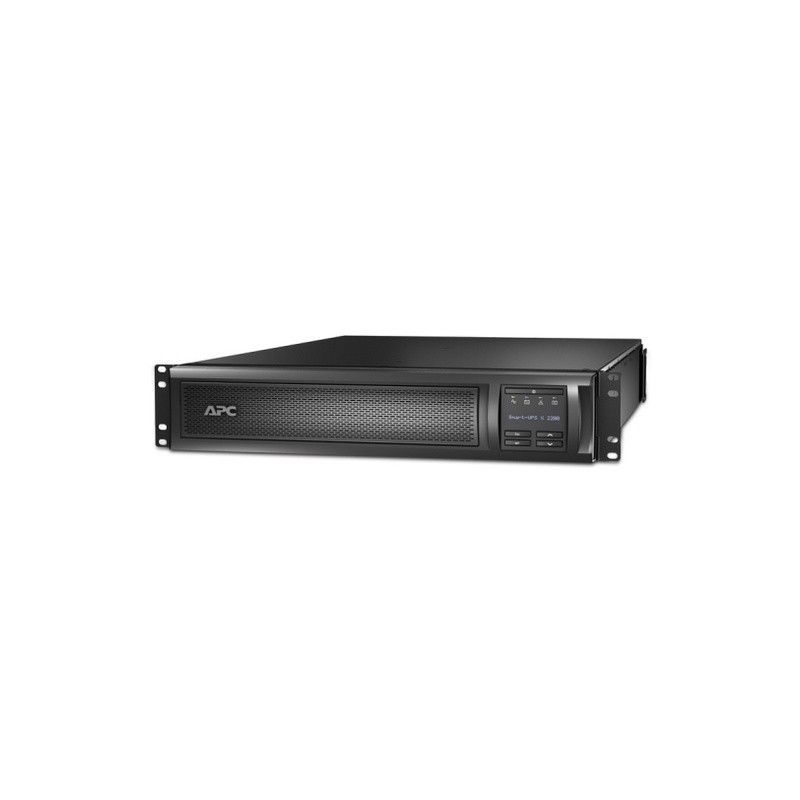

APC Smart-UPS X 2200VA Rack/Tower LCD 200-240V
- Jamstvo: 2 god.
Vaša prava iz zakonskog jamstva
- Odstrani ovaj proizvod iz najdražih proizvoda
- Dodaj ovaj proizvod u najdraže proizvode
- Ispis
Specifikacije
- Width
- 43.20 cm
- Height
- 8.50 cm
- Depth
- 66.70 cm
- Battery Recharge Time
- 3 h
- Cable Length
- 1.80 m
- Battery Life
- 3...5 year(s)
- Battery type
- Lead-acid battery
- Type of execution
- Rackmount / Tower
- Main Input Voltage
- 230 V
- Main Output Voltage
- 230 V
- Rated power in W
- 1980 W
- Rated power in VA
- 2.2 kVA
- Product or component type
- Uninterruptible power supply (UPS)
- Input Connection Type
- IEC 320 C20, Schuko CEE 7 / EU1-16P, BS1363A British

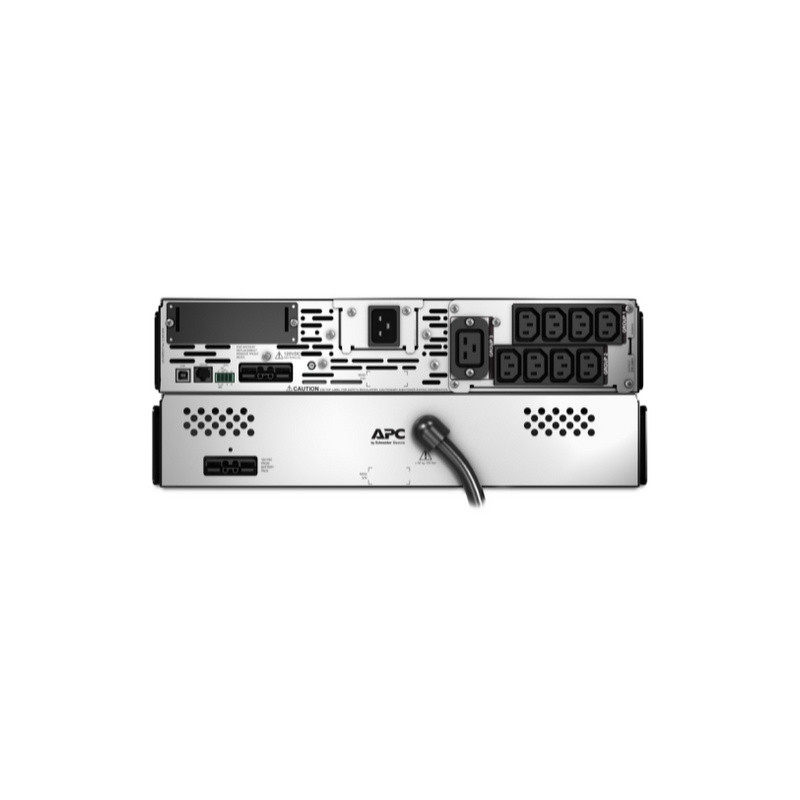

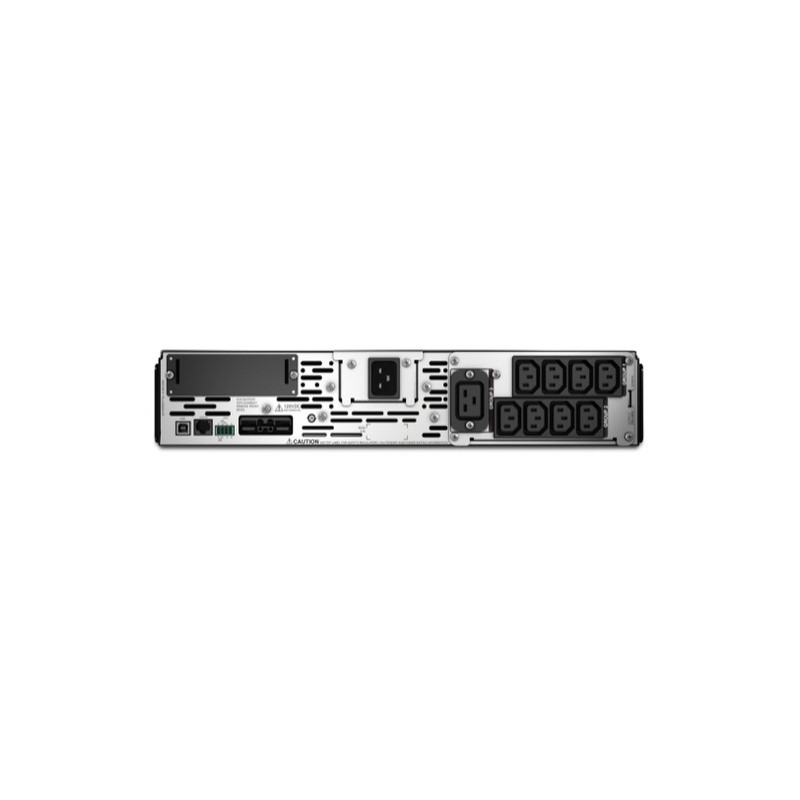

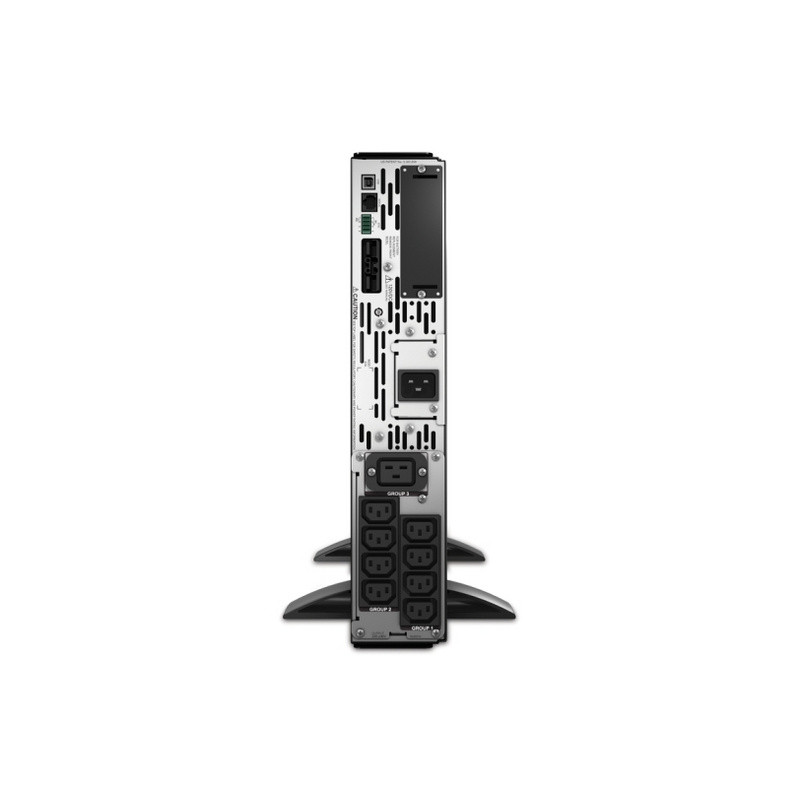

- Output Connection Type
- 8 IEC 320 C13, 2 IEC Jumpers, 1 IEC 320 C19
- Number of cables
- 1
- Provided equipment
- CD with software, Documentation CD, Smart UPS signalling RS-232 cable, User manual, USB cable, Rack mounting brackets
- Redundant
- No
- net. Weight
- 37.32 kg
- Mounting preference
- Lower
- Mounting mode
- Rack-mounted
- USB compatible
- Yes
- Network frequency
- 50/60 Hz +/- 3 Hz auto-sensing
- Input voltage limits
- 140...280 V
- Maximum configurable power in VA
- 2200 VA
- Maximum configurable power in W
- 1980 W
- Output frequency
- 50/60 Hz +/- 3 Hz sync to mains
- UPS type
- Line-Interactive
- Wave type
- Sine wave
- Transfer time
- 6 ms typical : 10 ms maximum
- Product certifications
- CE, EAC, IRAM, RCM, TISI, VDE, UK PSTI
- Standards
- EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018
- Ambient air temperature for operation
- 0..40 °C
- Relative humidity
- 0…95 %
- Operating altitude
- 0...10000 ft
- Ambient air temperature for storage
- -15…45 °C
- Storage Relative Humidity
- 0…95 %
- Storage altitude
- 0.0000000000…15240.0000000000 m
- Acoustic level
- 55 dBA
- Alarm
- Alarm when on battery : distinctive low battery alarm : configurable delays
- Surge energy rate
- 645 J
- Battery charger power
- 233 W nominal
- Mounting location
- Front
- Сontrol panel
- LED status display with load and battery bar-graphs and on line : on battery : replace battery : and overload indicators
- Noise suppression
- Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
- Fiscalization 2.0 Article
- G46.50.22
Opis
Main Input voltage
208 B
230 B
Other Input voltage
220 B
240 B
Main Output voltage
208 B
230 V
Other Output voltage
220 V
240 V
Rated power [W]
1980 W
Rated power
2200 VA
Product Type
Uninterruptible power supply (UPS)
Input Connection Type
IEC 320 C20
Schuko CEE 7 / EU1-16P
BS1363A British
output connection type
8 IEC 320 C13
2 IEC Jumpers
1 IEC 320 C19
Number of Units
2U
Length
1.83 m
Number of cables
1
Battery Type
Lead-acid battery
The possibility of increasing the time of autonomy
1
Pre-installed batteries
0
Free battery compartments
0
Typical recharge time
3 h
number of RBC™ cartridges
1
battery life
3…5 year(s)
Spare battery
APCRBC117
Charger power (W)
233 W rated
Number of power modules
1750
The number of slots occupied by power modules is
0
The number of unoccupied power modules
is 0
web product subcategory
Extended run
reserve
No
Harmonic distortion
Less than 5 %
The maximum specified power (VA)
is 2200 VA
Maximum set power (W)
1980 W
Switching time
2-4 ms
The typical time is 6 ms, the maximum is 10 ms
Type of UPS
Linearly interactive
Wave type
Sinusoidal signal
Output frequency
50/60 Hz +/- 3 Hz synchronized with the power grid
The acoustic level
is 55 dBA
Heat dissipation in mains operation mode
150 ‰
Altitude above sea level
0...10000 ft
Ambient temperature
0…40 °C
Ambient temperature during storage
-15…45 °C
Storage height
0,00…15240,00 m
Relative humidity
0...95 %
The relative humidity of storage
is 0...95 %
208 B
230 B
Other Input voltage
220 B
240 B
Main Output voltage
208 B
230 V
Other Output voltage
220 V
240 V
Rated power [W]
1980 W
Rated power
2200 VA
Product Type
Uninterruptible power supply (UPS)
Input Connection Type
IEC 320 C20
Schuko CEE 7 / EU1-16P
BS1363A British
output connection type
8 IEC 320 C13
2 IEC Jumpers
1 IEC 320 C19
Number of Units
2U
Length
1.83 m
Number of cables
1
Battery Type
Lead-acid battery
The possibility of increasing the time of autonomy
1
Pre-installed batteries
0
Free battery compartments
0
Typical recharge time
3 h
number of RBC™ cartridges
1
battery life
3…5 year(s)
Spare battery
APCRBC117
Charger power (W)
233 W rated
Number of power modules
1750
The number of slots occupied by power modules is
0
The number of unoccupied power modules
is 0
web product subcategory
Extended run
reserve
No
Harmonic distortion
Less than 5 %
The maximum specified power (VA)
is 2200 VA
Maximum set power (W)
1980 W
Switching time
2-4 ms
The typical time is 6 ms, the maximum is 10 ms
Type of UPS
Linearly interactive
Wave type
Sinusoidal signal
Output frequency
50/60 Hz +/- 3 Hz synchronized with the power grid
The acoustic level
is 55 dBA
Heat dissipation in mains operation mode
150 ‰
Altitude above sea level
0...10000 ft
Ambient temperature
0…40 °C
Ambient temperature during storage
-15…45 °C
Storage height
0,00…15240,00 m
Relative humidity
0...95 %
The relative humidity of storage
is 0...95 %
