APC
APC Smart-UPS X 3000VA Rack/

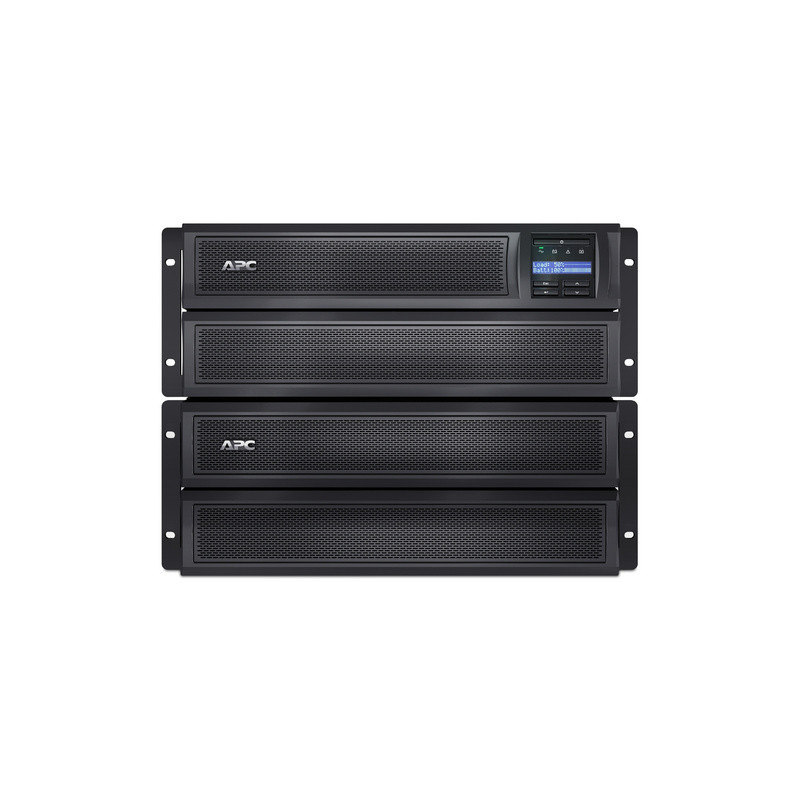

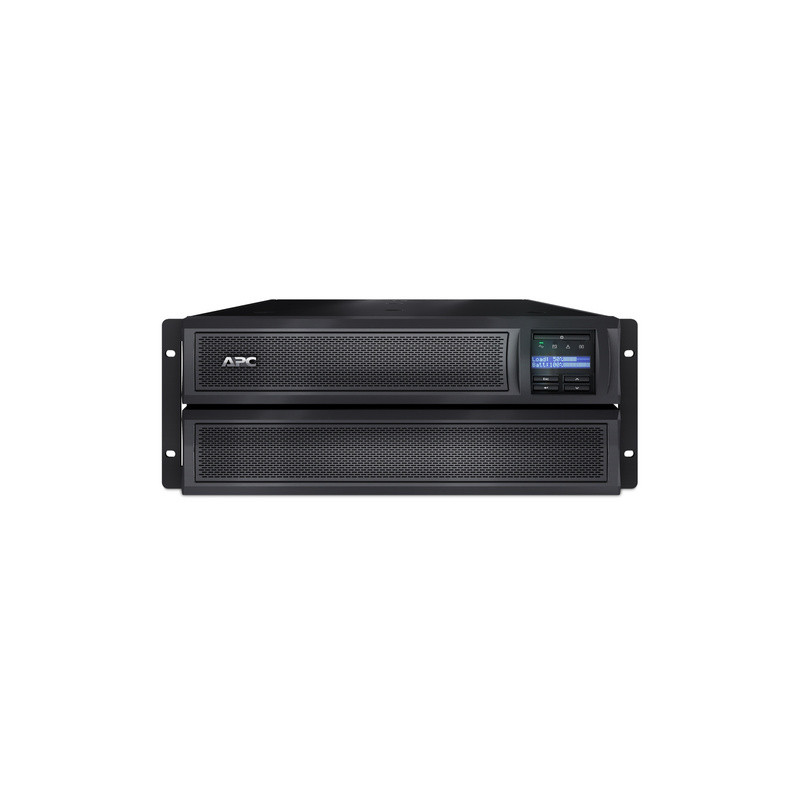

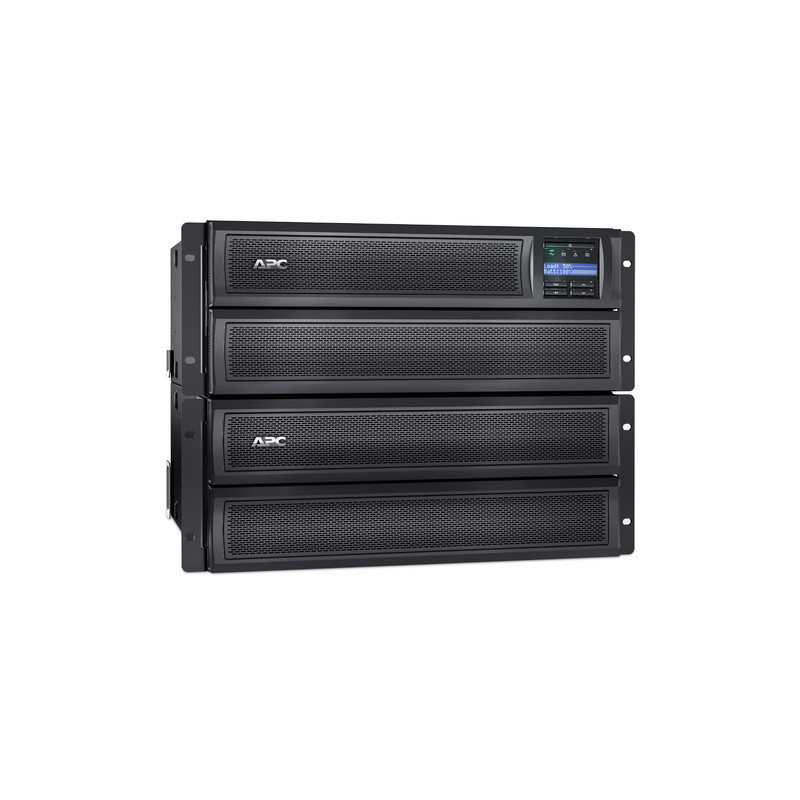

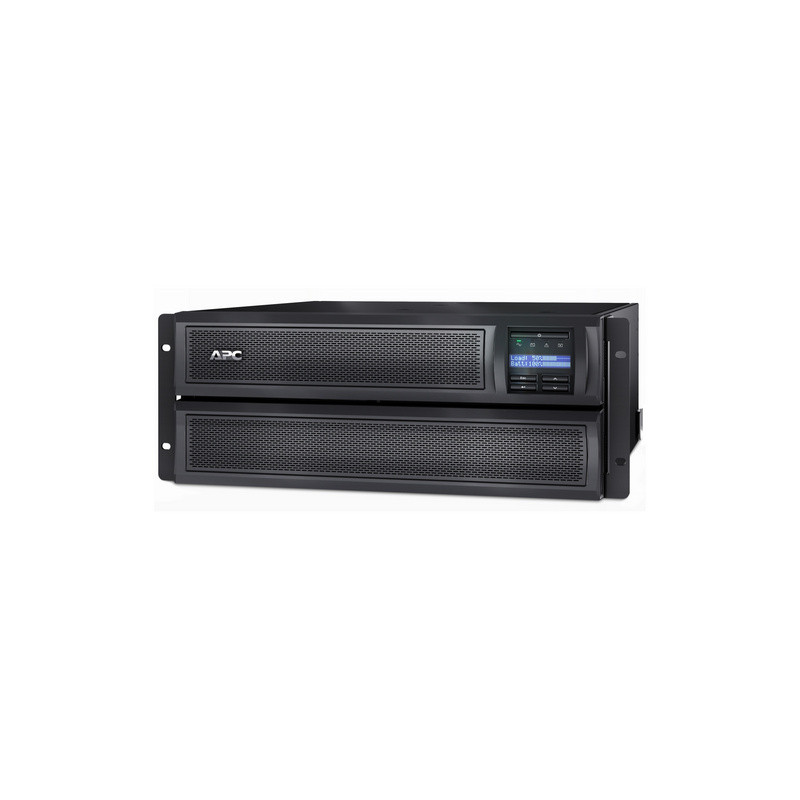

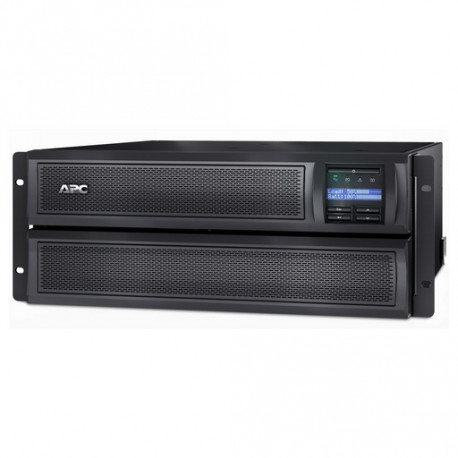

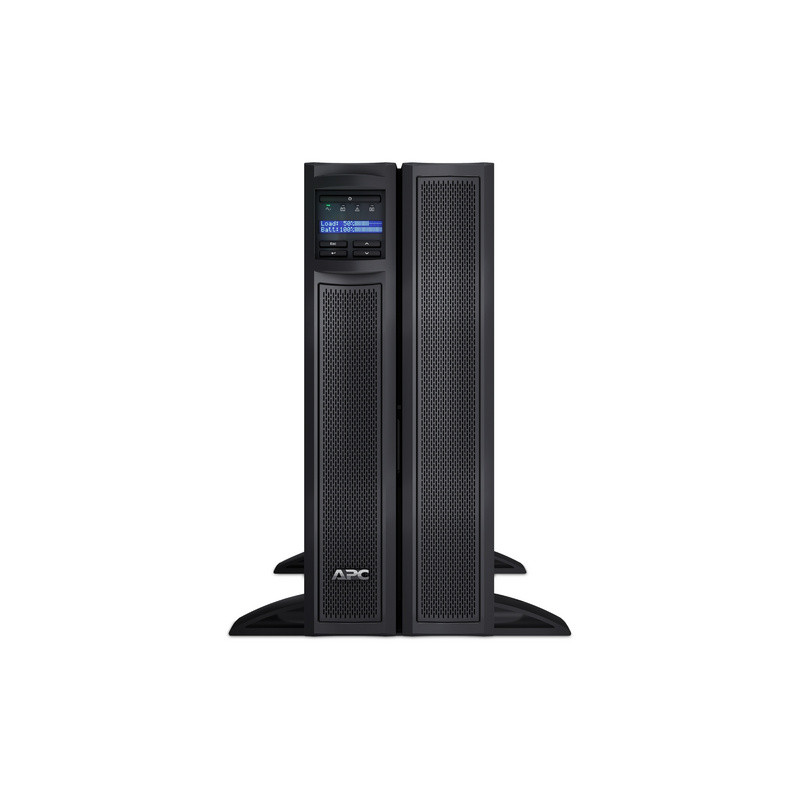

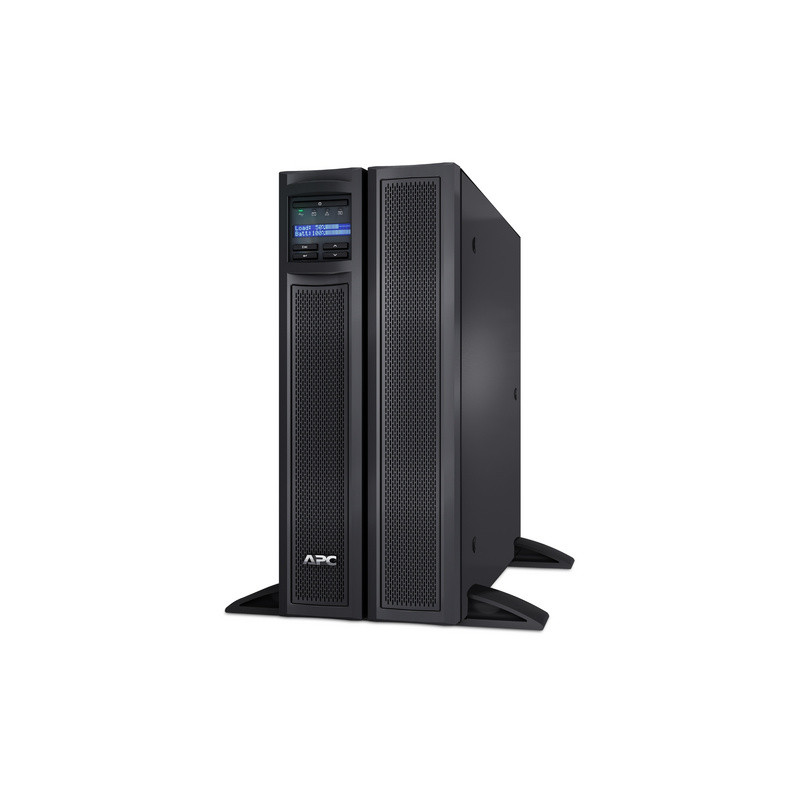

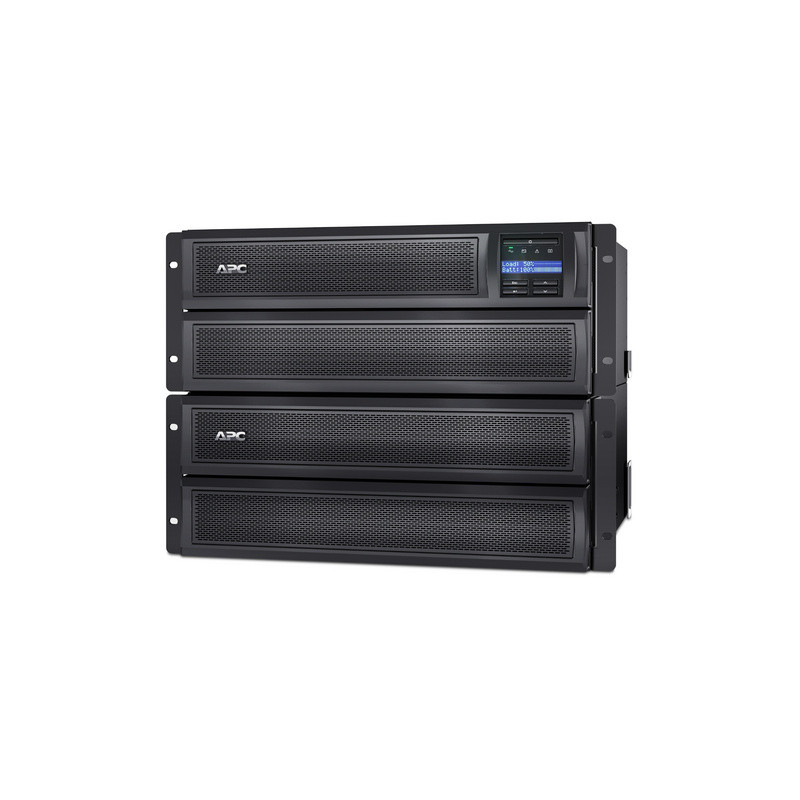

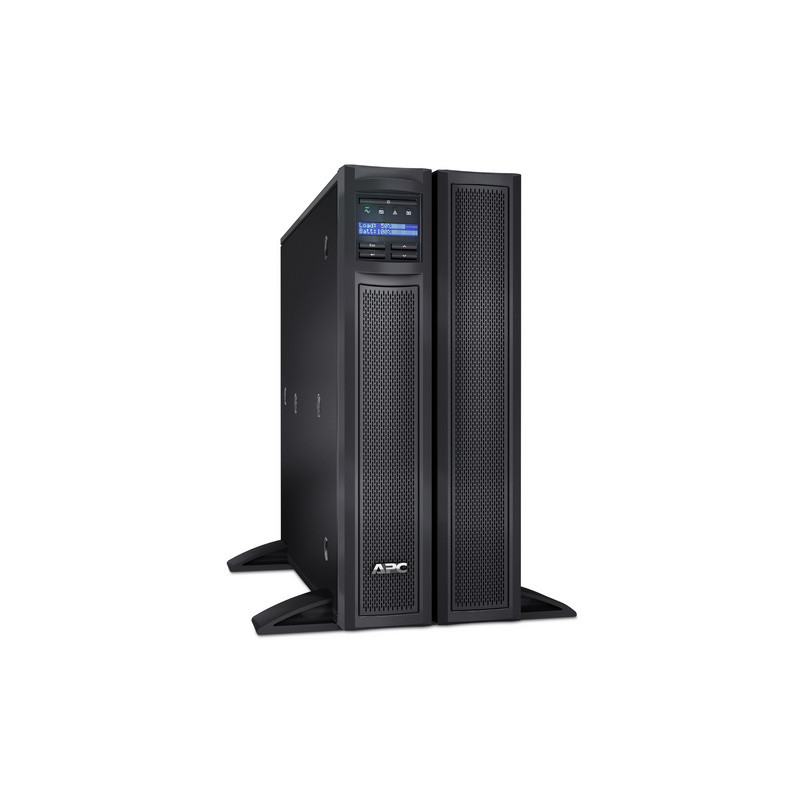

APC Smart-UPS X 3000VA Rack/Tower LCD 200-240V
Dobavljivo 2 kom kod dobavljača
Isporuka: 3 - 5 radnih dana
- Jamstvo: 3 god.
Vaša prava iz zakonskog jamstva
- Odstrani ovaj proizvod iz najdražih proizvoda
- Dodaj ovaj proizvod u najdraže proizvode
- Ispis
Specifikacije
- Width
- 17.80 cm
- Height
- 43.20 cm
- Depth
- 48.30 cm
- Battery Recharge Time
- 3 h
- Cable Length
- 1.80 m
- Battery Life
- 3...5 year(s)
- Battery type
- Lead-acid battery
- Type of execution
- Rackmount / Tower
- Main Input Voltage
- 230 V
- Main Output Voltage
- 230 V
- Rated power in W
- 2.7 kW
- Rated power in VA
- 3 kVA
- Product or component type
- Uninterruptible power supply (UPS)
- Input Connection Type
- IEC 320 C20, Schuko CEE 7 / EU1-16P, BS1363A British
- Output Connection Type

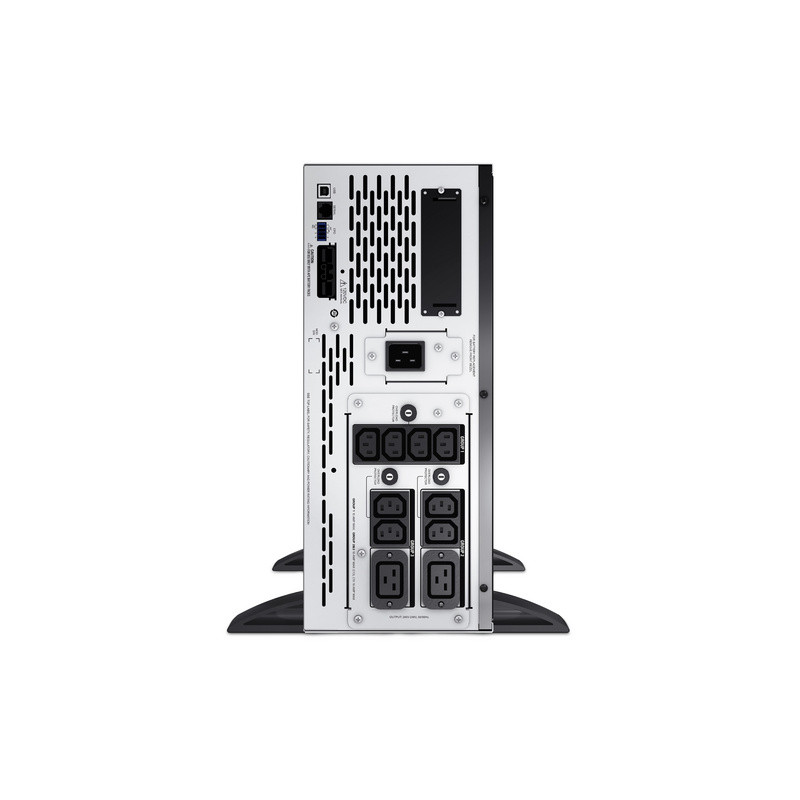

- 8 IEC 320 C13, 2 IEC Jumpers, 2 IEC 320 C19
- Number of cables
- 1
- Provided equipment
- CD with software, Documentation CD, Smart UPS signalling RS-232 cable, User manual, USB cable, Rack mounting brackets
- Redundant
- No
- net. Weight
- 38.64 kg
- Mounting preference
- Lower
- Mounting mode
- Rack-mountable
- USB compatible
- Yes
- Network frequency
- 50/60 Hz +/- 3 Hz auto-sensing
- Input voltage limits
- 140...280 V
- Maximum configurable power in VA
- 3000 VA
- Maximum configurable power in W
- 2700 W
- Output frequency
- 50/60 Hz +/- 3 Hz sync to mains
- UPS type
- Line-Interactive
- Wave type
- Sine wave
- Transfer time
- 6 ms typical : 10 ms maximum
- Product certifications
- CE, EAC, IRAM, RCM, TISI, VDE, UK PSTI
- Standards
- EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018
- Ambient air temperature for operation
- 0..40 °C
- Relative humidity
- 0…95 %
- Operating altitude
- 0...10000 ft
- Ambient air temperature for storage
- -15…45 °C
- Storage Relative Humidity
- 0…95 %
- Storage altitude
- 0.0000000000…15240.0000000000 m
- Acoustic level
- 55 dBA
- Alarm
- Alarm when on battery : distinctive low battery alarm : configurable delays
- Surge energy rate
- 645 J
- Battery charger power
- 245 W rated
- Mounting location
- Front
- Number of battery replacement quantity
- 1
- Number of power module free slots
- 0
- Number of battery filled slots
- 0
- Сontrol panel
- LED status display with on line : on battery : replace battery and overload indicators
- Noise suppression
- Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
- Number of battery free slots
- 0
- Fiscalization 2.0 Article
- G46.50.22
- Number of power module filled slots
- 0
Opis
Main Features:
- Main Input voltage 208 B, 230 B
- Other Input voltage 220 B, 240 B
- The main output voltage is 230 V
- Other Output voltage 208 B, 220 V, 240 V
- Rated power [W] 2700 W
- Rated power 3000 VA
- Input Connection Type IEC 320 C20, Schuko CEE 7 / EU1-16P, BS1363A British
- Output connection type - 8 IEC 320 C13? 2 IEC Jumpers, 2 IEC 320 C19
- Number of Unit 4U
- Length - 1.83 m
- Number of cables - 1
- Battery Type - Lead acid battery
Common:
- The number of power modules is 2400
- The number of slots occupied by power modules is 0
- The number of slots unoccupied by power modules is 0
- Product subcategory web - Extended run
- Spare - No
Physical parameters:
- The Color is Black
- Height 43.2 cm
- Width 17.8 cm
- Depth 48.3 cm
- Net weight 38.64 kg
- Installation location - Front
- Type of fastener - Bottom
- Mounting design - Rack-mounted
- Two-support mount - 1
- USB-compatible - Yes
Input:
- Input voltage limits 140...280 V
- Network frequency 50/60 Hz +/- 3 Hz auto detection
Output:
- Cross factor 3:1
- Harmonic distortion Less than 5%
- Maximum set power (VA) - 3000 VA
- Maximum set power (W) - 2700 W
- Switching time The typical time is 6 ms, the maximum is 10 ms
- UPS type is Linearly interactive
- Type of voltage form - Sinusoidal signal
- Output frequency - 50/60 Hz +/- 3 Hz synchronized with the power grid
Accordance:
- Certificates - CE, EAC, IRAM, RCM, TISI, VDE
- Standards - EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018
Environmental parameters:
- Acoustic level - 55 dBA
- Heat transfer - 184 ‰
- Altitude above sea level - 0...10000 ft
- Operating ambient temperature - 0...40 °C
- Ambient temperature during storage -15...45 °C
- Storage height - 0.00...15240,00 m
- Relative humidity - 0...95 %
- Relative humidity of storage - 0...95 %
Batteries and battery life:
- The possibility of increasing the time of autonomy - 1
- Pre-installed batteries - 0
- Free battery compartments - 0
- Typical recharge time is 3 h
- Number of RBC™ cartridges - 1
- Battery life - 3...5 year(s)
- Battery capacity in volt-ampere hours - 738 vach operating time
- Charger power (W) - 245 W rated
- Battery options SMX120BP 1 2214 VACH, SMX120BP 2 3690 VACH, SMX120BP 3 5166 VACH, SMX120BP 4 6642 VACH, SMX120BP 6 9594 VACH, SMX120BP 8 12546 VACH, SMX120BP 10 15498 VACH
Communication tools and admin tools:
- Control panel Multifunction LCD status and control panel
- Emergency Power Off (EPO) - Yes
- Free slots - 1
- Control panel LED status display with on line : on battery : replace battery and overload indicators
- Alarm - Alarm when on battery : distinctive low battery alarm : configurable delays
Protection against voltage surges and filtrations:
- Rating according to the level of absorbed energy vsp - 645 J
- Noise suppression Permanent multi-pole noise filter : residual voltage amplitude 0.3% according to IEEE standards : voltage surge limitation without time delay : compliance with UL 1449 requirements
- Main Input voltage 208 B, 230 B
- Other Input voltage 220 B, 240 B
- The main output voltage is 230 V
- Other Output voltage 208 B, 220 V, 240 V
- Rated power [W] 2700 W
- Rated power 3000 VA
- Input Connection Type IEC 320 C20, Schuko CEE 7 / EU1-16P, BS1363A British
- Output connection type - 8 IEC 320 C13? 2 IEC Jumpers, 2 IEC 320 C19
- Number of Unit 4U
- Length - 1.83 m
- Number of cables - 1
- Battery Type - Lead acid battery
Common:
- The number of power modules is 2400
- The number of slots occupied by power modules is 0
- The number of slots unoccupied by power modules is 0
- Product subcategory web - Extended run
- Spare - No
Physical parameters:
- The Color is Black
- Height 43.2 cm
- Width 17.8 cm
- Depth 48.3 cm
- Net weight 38.64 kg
- Installation location - Front
- Type of fastener - Bottom
- Mounting design - Rack-mounted
- Two-support mount - 1
- USB-compatible - Yes
Input:
- Input voltage limits 140...280 V
- Network frequency 50/60 Hz +/- 3 Hz auto detection
Output:
- Cross factor 3:1
- Harmonic distortion Less than 5%
- Maximum set power (VA) - 3000 VA
- Maximum set power (W) - 2700 W
- Switching time The typical time is 6 ms, the maximum is 10 ms
- UPS type is Linearly interactive
- Type of voltage form - Sinusoidal signal
- Output frequency - 50/60 Hz +/- 3 Hz synchronized with the power grid
Accordance:
- Certificates - CE, EAC, IRAM, RCM, TISI, VDE
- Standards - EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018
Environmental parameters:
- Acoustic level - 55 dBA
- Heat transfer - 184 ‰
- Altitude above sea level - 0...10000 ft
- Operating ambient temperature - 0...40 °C
- Ambient temperature during storage -15...45 °C
- Storage height - 0.00...15240,00 m
- Relative humidity - 0...95 %
- Relative humidity of storage - 0...95 %
Batteries and battery life:
- The possibility of increasing the time of autonomy - 1
- Pre-installed batteries - 0
- Free battery compartments - 0
- Typical recharge time is 3 h
- Number of RBC™ cartridges - 1
- Battery life - 3...5 year(s)
- Battery capacity in volt-ampere hours - 738 vach operating time
- Charger power (W) - 245 W rated
- Battery options SMX120BP 1 2214 VACH, SMX120BP 2 3690 VACH, SMX120BP 3 5166 VACH, SMX120BP 4 6642 VACH, SMX120BP 6 9594 VACH, SMX120BP 8 12546 VACH, SMX120BP 10 15498 VACH
Communication tools and admin tools:
- Control panel Multifunction LCD status and control panel
- Emergency Power Off (EPO) - Yes
- Free slots - 1
- Control panel LED status display with on line : on battery : replace battery and overload indicators
- Alarm - Alarm when on battery : distinctive low battery alarm : configurable delays
Protection against voltage surges and filtrations:
- Rating according to the level of absorbed energy vsp - 645 J
- Noise suppression Permanent multi-pole noise filter : residual voltage amplitude 0.3% according to IEEE standards : voltage surge limitation without time delay : compliance with UL 1449 requirements
