> >>>APC Smart-UPS 2200VA LCD RM 2U 230V with SmartConnect
Besplatna dostava APC Smart-UPS 2200VA LCD RM 2U 230V with SmartConnect Prikaži uvećano
Prije Dalje

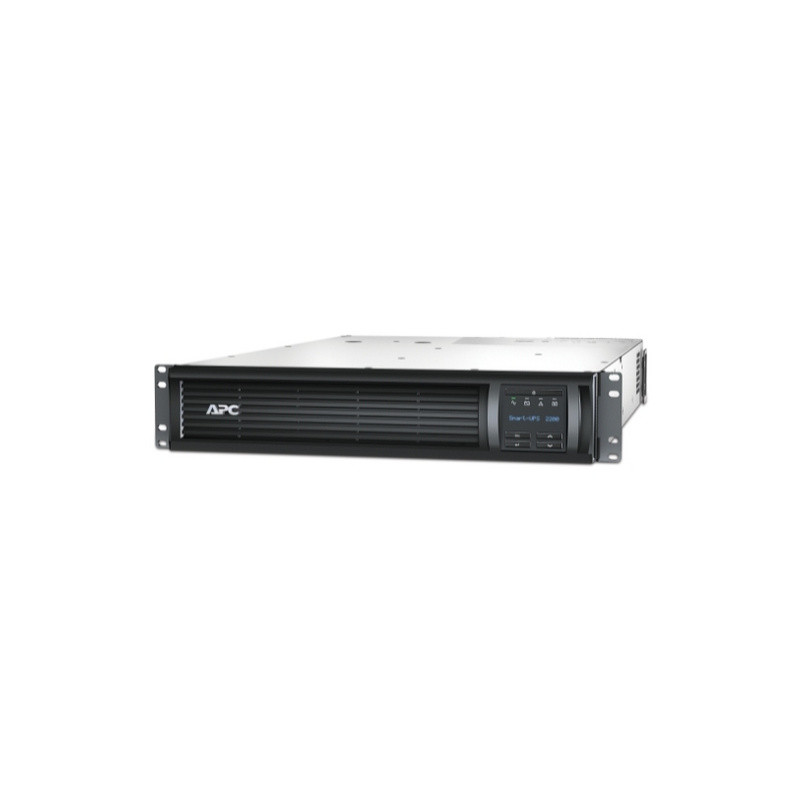

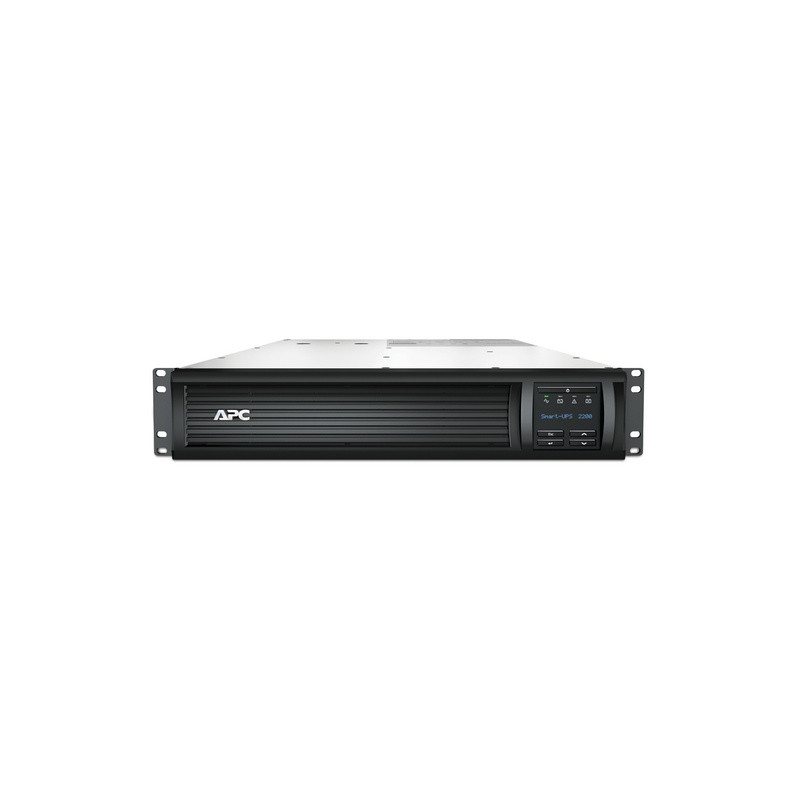

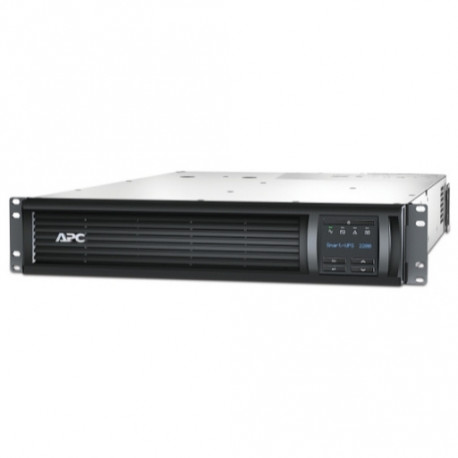

APC Smart-UPS 2200VA LCD RM 2U 230V with SmartConnect

SMT2200RMI2UC

Novi proizvod

3 - 5 radnih dana

3 god.

Količina: 3 raspoloživa (kod dobavljača)

Cijena za gotovinu (uplatu na račun):

1 849,38 € s PDV-om

Cijena za kartice:

2 034,32 € s PDV-om

Okvirna cijena po ratama:
12 * 169,53 € s PDV-om
6 * 339,05 € s PDV-om
3 * 678,11 € s PDV-om

Dodaj u listu želja

  • Diners Club International
  • Discover
  • Dinacard
  • WSPay
  • Google Pay

Podaci

Width 43.20 cm
Height 8.60 cm
Depth 68.30 cm
Battery Recharge Time 3 h
Cable Length 2.00 m
Battery Life 3...5 year(s)
Battery type Lead-acid battery
Type of execution Rackmount
Main Input Voltage 230 V
Main Output Voltage 230 V
Rated power in W 1980 W
Rated power in VA 2.2 kVA
Product or component type Uninterruptible power supply (UPS)
Input Connection Type BS1363A British, IEC 320 C20, Schuko CEE 7 / EU1-16P
Output Connection Type 8 IEC 320 C13, 3 IEC Jumpers, 1 IEC 320 C19
Number of cables 1
Provided equipment Documentation CD, Rack mounting hardware, Rack mounting support rails, USB cable
Redundant No
net. Weight 42.31 kg
Mounting preference No preference
Mounting mode Rack-mounted
USB compatible No
Network frequency 50/60 Hz +/- 3 Hz auto-sensing
Input voltage limits 151...302 V adjustable, 160...286 V
Maximum configurable power in VA 2200 VA
Maximum configurable power in W 1980 W
Output frequency 50/60 Hz +/- 3 Hz sync to mains
UPS type Line-Interactive
Wave type Sine wave
Transfer time 6 ms typical : 10 ms maximum
Product certifications CE, EAC, IRAM, RCM, VDE, UK PSTI
Standards EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018
Ambient air temperature for operation 0..40 °C
Relative humidity 0…95 %
Operating altitude 0...10000 ft
Ambient air temperature for storage -15…45 °C
Storage Relative Humidity 0…95 %
Storage altitude 0.0000000000…15240.0000000000 m
Acoustic level 55 dBA
Alarm Alarm when on battery : distinctive low battery alarm : configurable delays
Battery charger power 169 W rated
Mounting location Front
Number of battery replacement quantity 1
Сontrol panel Multifunction LCD status and control console

Više informacija

Maximum adjustable power (W)
1.98 kW/2.2 kVA

Output voltage Note
Configurable for rated output voltage 220: 230 or 240.

Output voltage distortion
Less than 5 %

Output frequency (network synchronization)
50/60 Hz +/- 3 Hz Network synchronization

Other output voltages
220 V, 240 V

Topology
The line is interactive

Signal type
The sine wave

Transfer time
6 ms is typical: 10 ms maximum

Input frequency
50/60 Hz +/- 3 Hz, auto-detection

Input voltage range for basic operations
151-302 Adjustable, 160-286 V

Number of power cords
1

Other input voltages
220 V, 240 V

Battery Type
Lead-acid battery

Typical recharge time
3 hours)

Spare battery
RBK43

Expected battery life (years)
3-5

The number of RBC
1

Battery power (W)
169 W

Interface Port(s)
RJ-45 Serial Port, SmartSlot, USB

The Control Panel
Multifunctional LCD status and control console

The available number of SmartSlot™ interfaces
1

Maximum height
86 mm, 8.6 cm

Maximum width
432 mm, 43.2 cm

Maximum depth
683 mm, 68.3 cm

Net weight
42.31 kg
