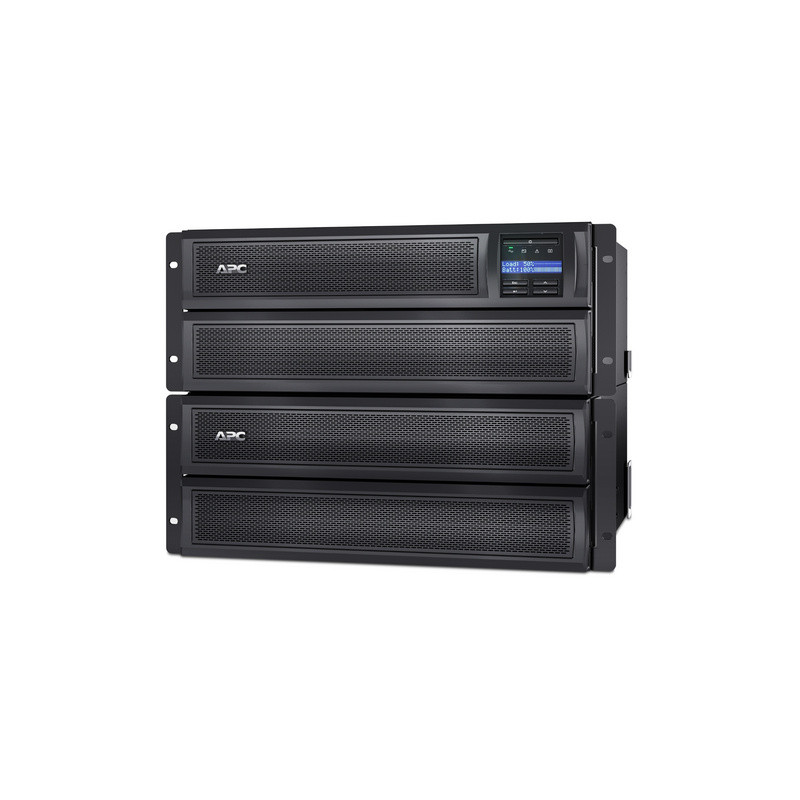

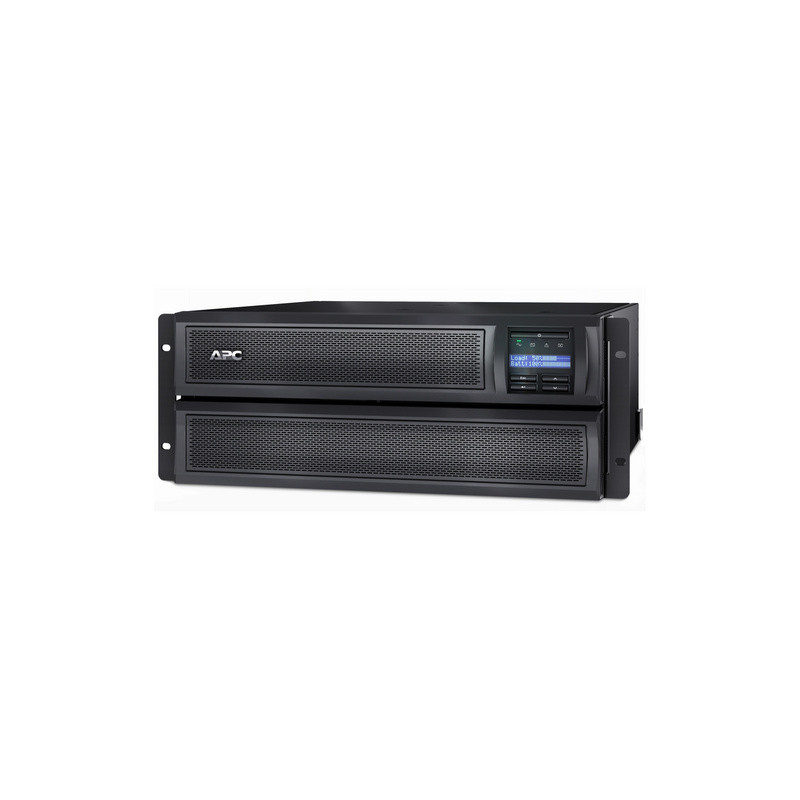

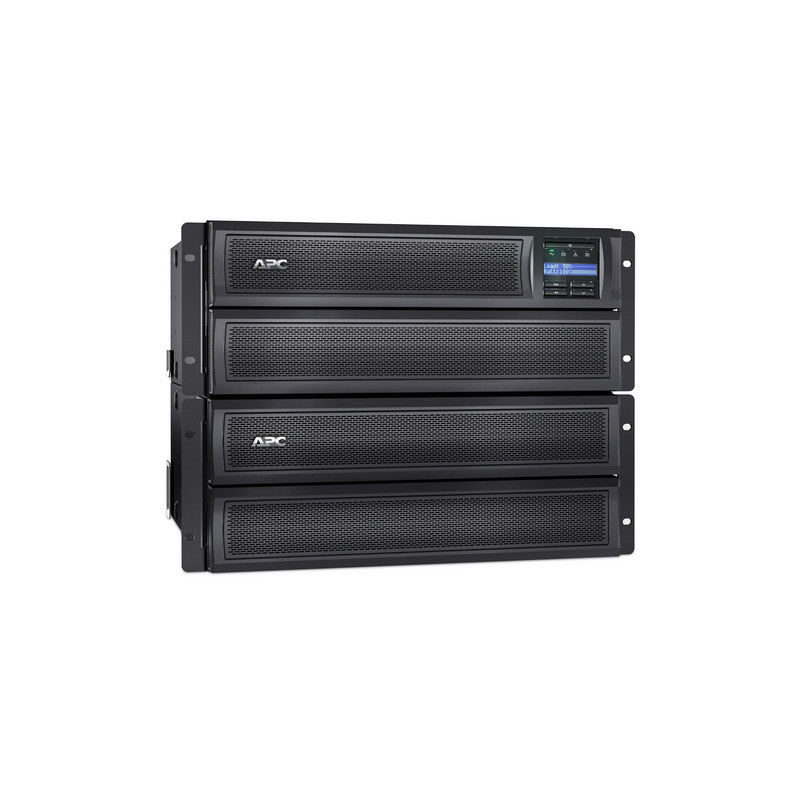

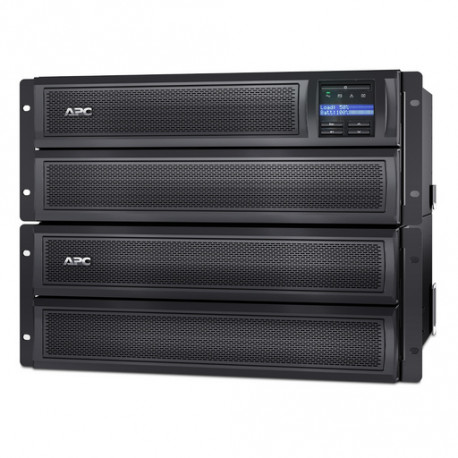

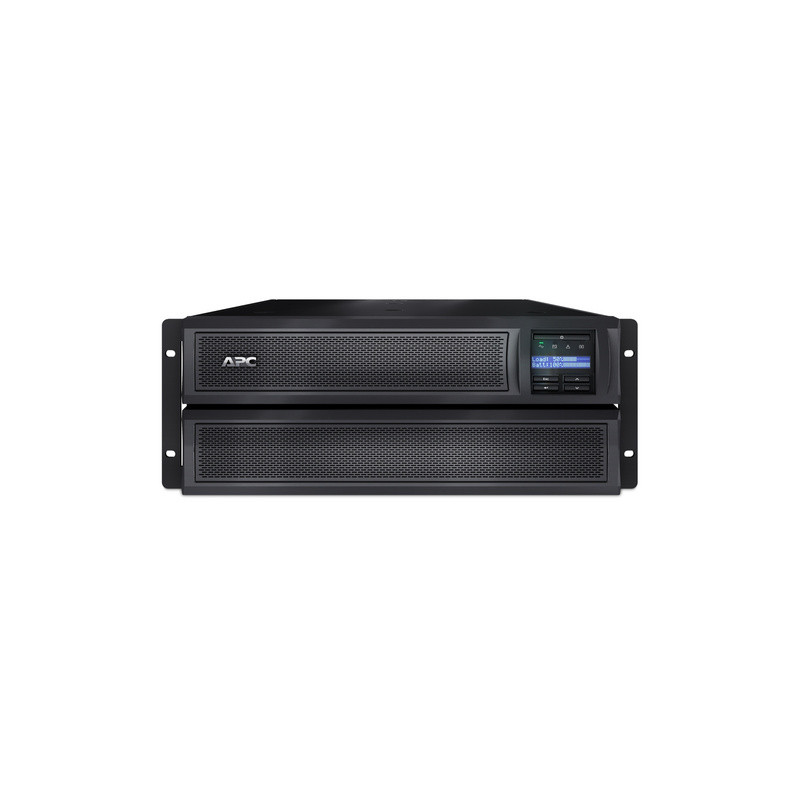

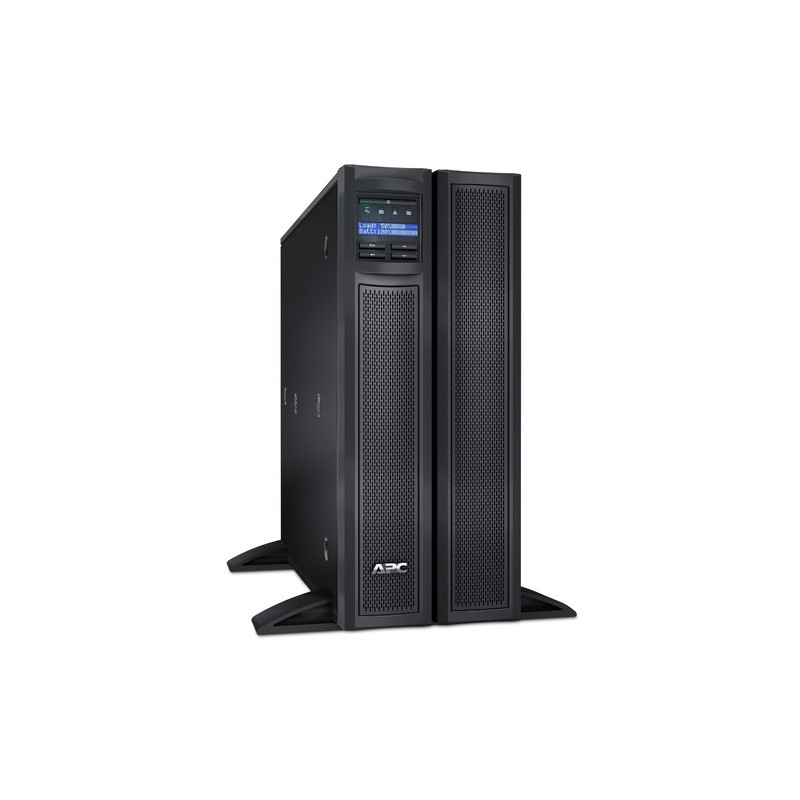

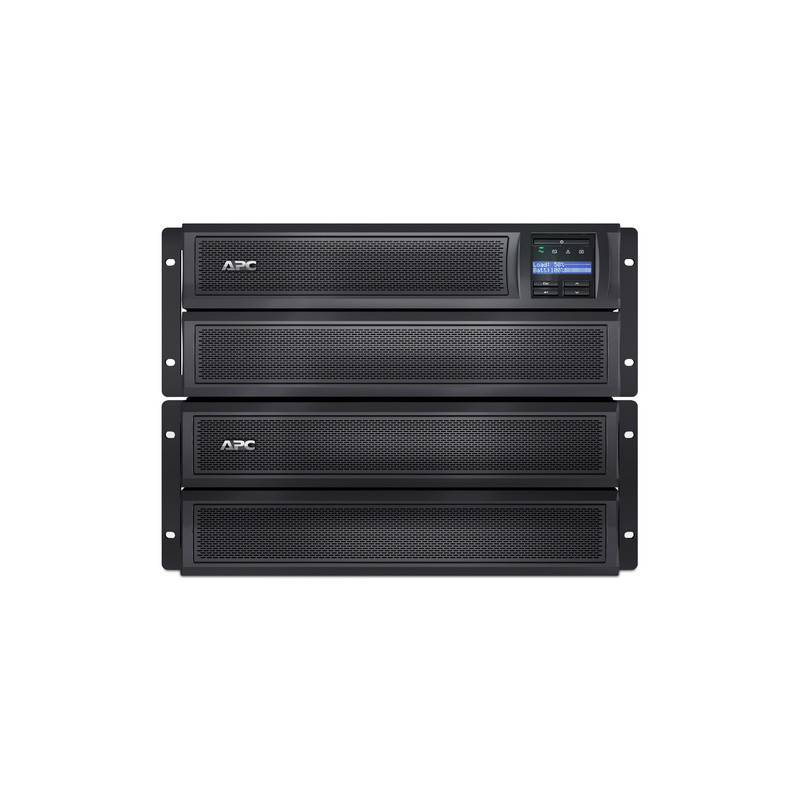

APC Smart-UPS X 2200VA Rack/Tower LCD 200-240V

SMX2200HV

Novi proizvod

3 - 5 radnih dana

3 god.

Količina: 3 raspoloživa (kod dobavljača)

Cijena za gotovinu (uplatu na račun):

1 951,13 € s PDV-om

Cijena za kartice:

2 146,24 € s PDV-om

Okvirna cijena po ratama:
12 * 178,85 € s PDV-om
6 * 357,71 € s PDV-om
3 * 715,41 € s PDV-om

Dodaj u listu želja

  • Diners Club International
  • Discover
  • Dinacard
  • WSPay
  • Google Pay

Podaci

Width 17.80 cm
Height 43.20 cm
Depth 48.30 cm
Battery Recharge Time 3 h
Cable Length 2.00 m
Battery Life 3...5 year(s)
Battery type Lead-acid battery

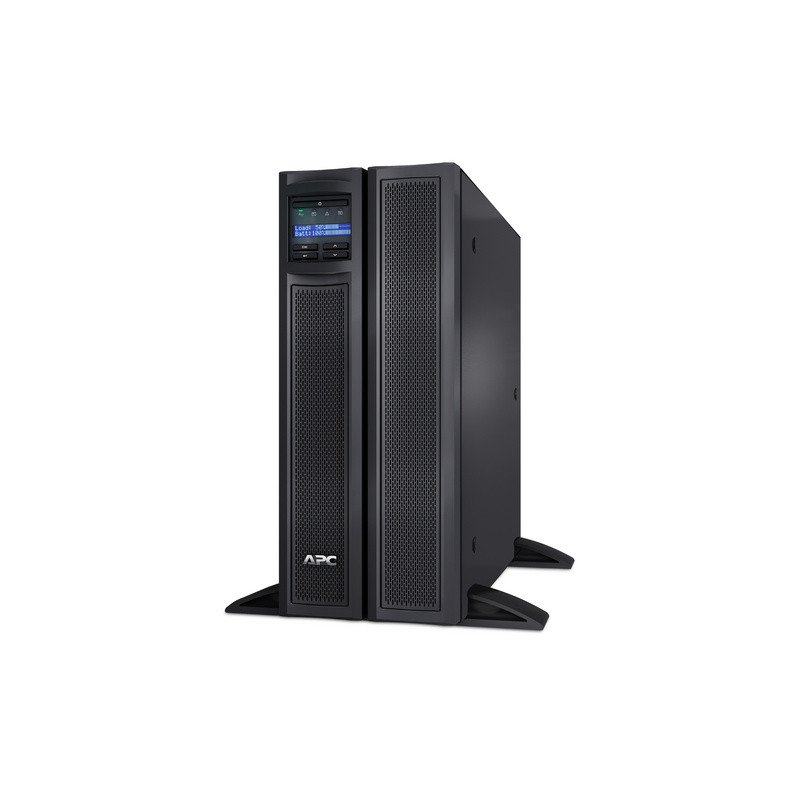

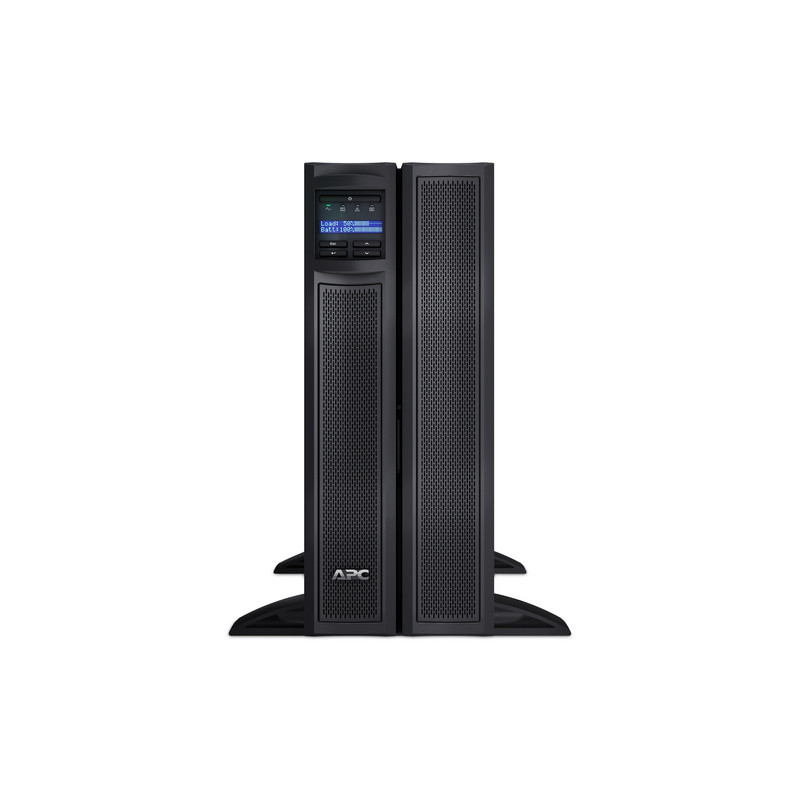

Type of execution Rackmount / Tower
Main Input Voltage 230 V
Main Output Voltage 230 V
Rated power in W 1980 W
Rated power in VA 2.2 kVA
Product or component type Uninterruptible power supply (UPS)
Input Connection Type IEC 320 C20, Schuko CEE 7 / EU1-16P, BS1363A British

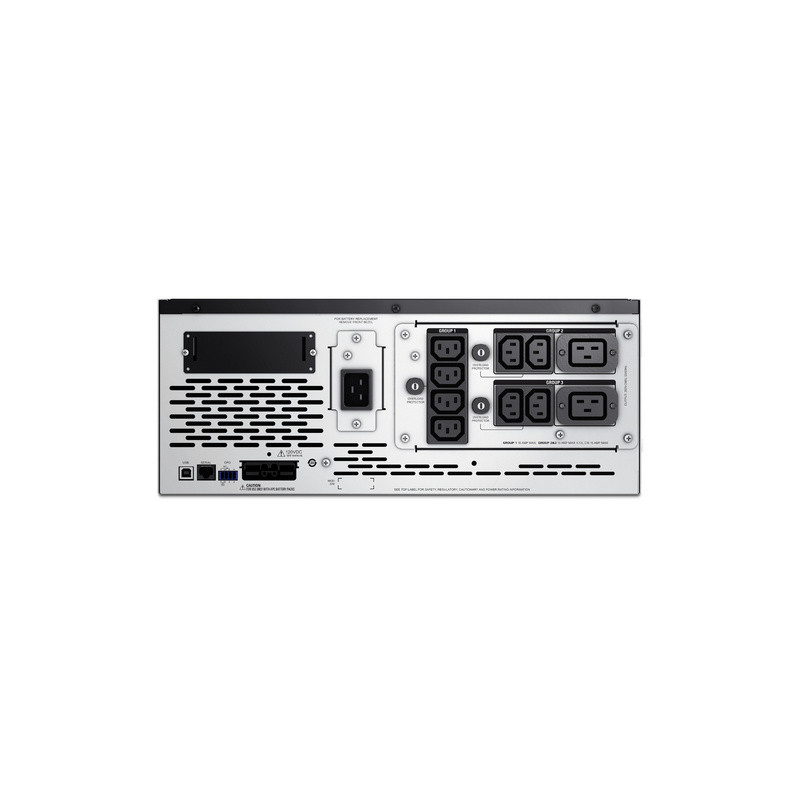

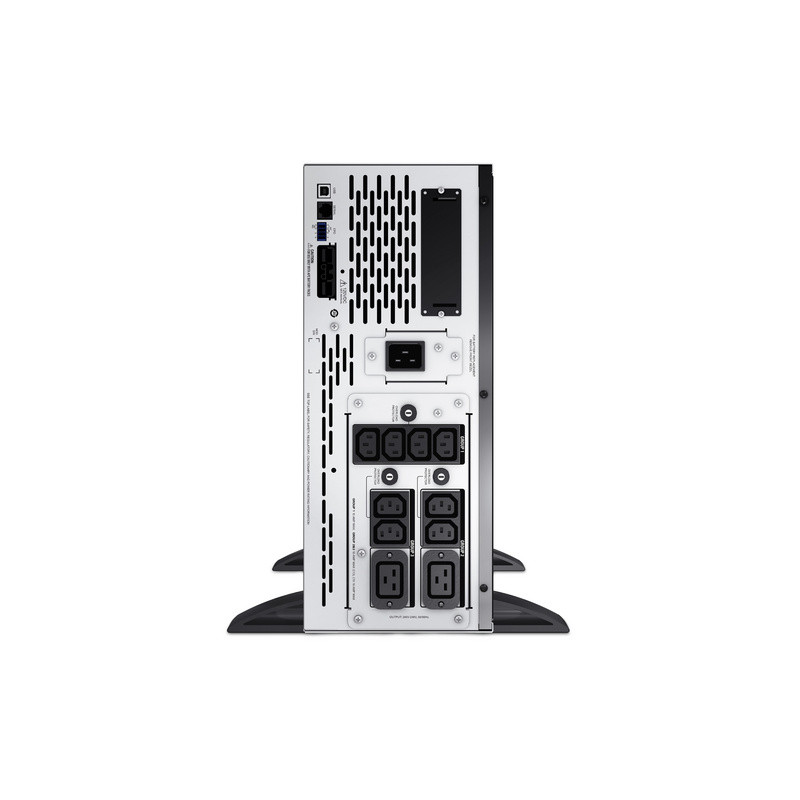

Output Connection Type 8 IEC 320 C13, 2 IEC Jumpers, 2 IEC 320 C19
Number of cables 1
Provided equipment CD with software, Documentation CD, Smart UPS signalling RS-232 cable, User manual, USB cable, Rack mounting brackets
Redundant No
net. Weight 38.56 kg
Mounting preference Lower
Mounting mode Rack-mountable
USB compatible Yes
Network frequency 50/60 Hz +/- 3 Hz auto-sensing
Input voltage limits 140...280 V
Maximum configurable power in VA 2200 VA
Maximum configurable power in W 1980 W
Output frequency 50/60 Hz +/- 3 Hz sync to mains
UPS type Line-Interactive
Wave type Sine wave
Transfer time 6 ms typical : 10 ms maximum
Product certifications CE, EAC, IRAM, RCM, TISI, VDE, UK PSTI
Standards EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018
Ambient air temperature for operation 0..40 °C
Relative humidity 0…95 %
Operating altitude 0...10000 ft
Ambient air temperature for storage -15…45 °C
Storage Relative Humidity 0…95 %
Storage altitude 0.0000000000…15240.0000000000 m
Acoustic level 55 dBA
Alarm Alarm when on battery : distinctive low battery alarm : configurable delays
Surge energy rate 645 J
Battery charger power 233 W rated
Mounting location Front
Number of battery replacement quantity 1
Сontrol panel LED status display with on line : on battery : replace battery and overload indicators
Noise suppression Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Više informacija

Main Input voltage
208 B
230 B

Other Input voltage
220 B
240 B

Main Output voltage
208 B
230 V

Other Output voltage
208 B
220 V
240 V

Rated power [W]
1980 W

Rated power
2200 VA

Product Type
Uninterruptible power supply (UPS)

Input Connection Type
IEC 320 C20
Schuko CEE 7 / EU1-16P
BS1363A British

output connection type
8 IEC 320 C13
2 IEC Jumpers
2 IEC 320 C19

Number of Units
4U

Length
2,00 m

Number of cables
1

Battery Type
Lead-acid battery

The possibility of increasing the time of autonomy
1

Pre-installed batteries
0

Free battery compartments
0

Typical recharge time
3 h

number of RBC™ cartridges
1

battery life
3…5 year(s)

Charger power (W)
233 W rated

Number of power modules
1750

The number of slots occupied by power modules is
0

The number of unoccupied power modules
is 0

web product subcategory
Extended run

reserve
No

Harmonic distortion
Less than 5 %

The maximum specified power (VA)
is 2200 VA

Maximum set power (W)
1980 W

Switching time
The typical time is 6 ms, the maximum is 10 ms.

Type of UPS
Linearly interactive

Wave type
Sinusoidal signal

Output frequency
50/60 Hz +/- 3 Hz synchronized with the power grid

The Control Panel
Multifunctional LCD status and control panel

Emergency Power Off (EPO)
Yes

Free slots
1

control panel
LED status display with on line : on battery : replace battery and overload indicators

alarm
Alarm when on battery : distinctive low battery alarm : configurable delays
