APC

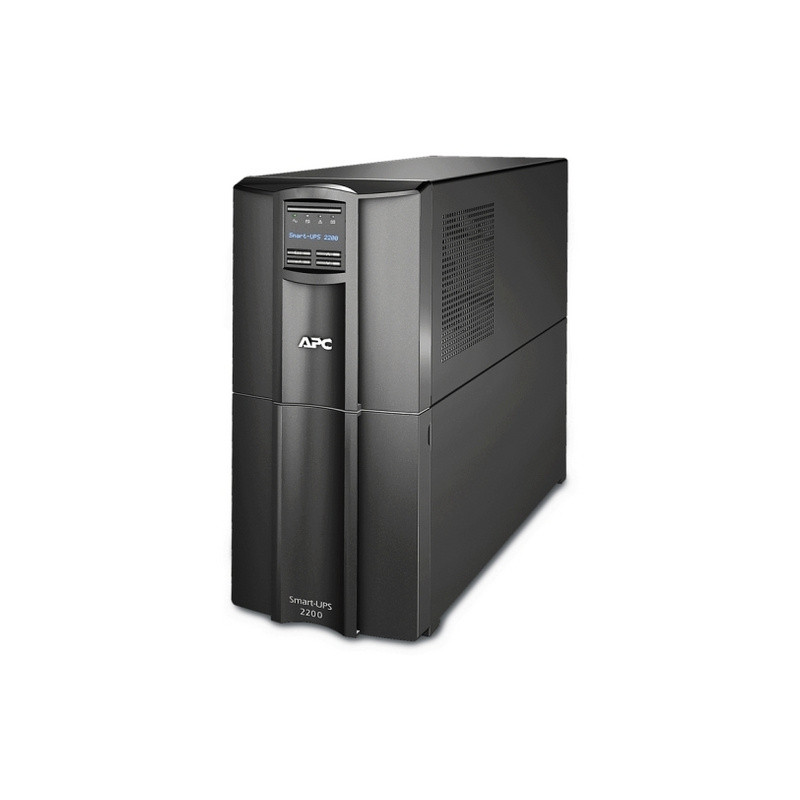

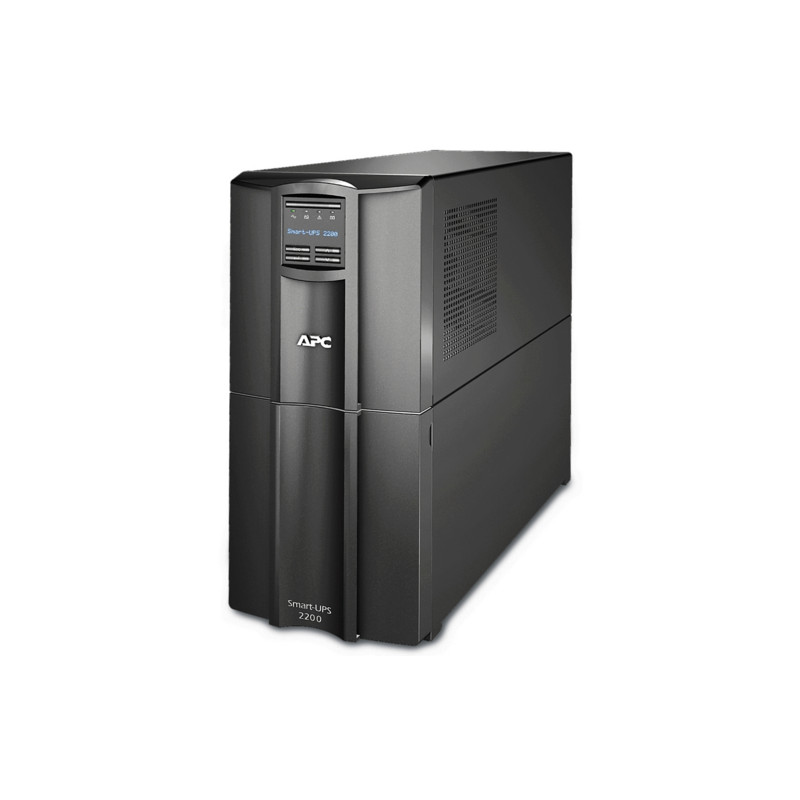

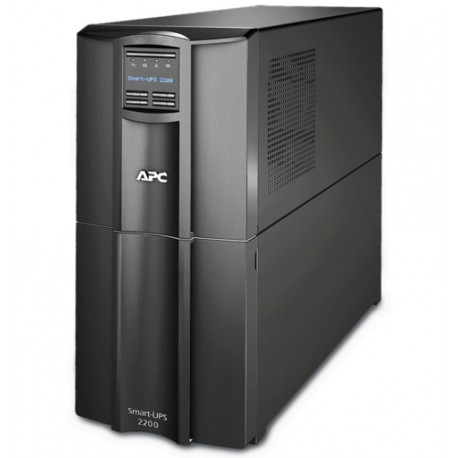

APC Smart-UPS 2200VA LCD 230V SmartConnect
Dobavljivo 3 kom kod dobavljača
Isporuka: 3 - 5 radnih dana
- Jamstvo: 3 god.
Vaša prava iz zakonskog jamstva
- Odstrani ovaj proizvod iz najdražih proizvoda
- Dodaj ovaj proizvod u najdraže proizvode
- Ispis
Specifikacije
- Width
- 19.70 cm
- Height
- 43.50 cm
- Depth
- 54.40 cm
- Battery Recharge Time
- 3 h
- Battery Life
- 3...5 year(s)
- Battery type
- Lead-acid battery
- Type of execution
- Tower
- Main Input Voltage
- 230 V
- Main Output Voltage
- 230 V
- Rated power in W
- 1980 W
- Rated power in VA
- 2.2 kVA
- Product or component type
- Uninterruptible power supply (UPS)
- Input Connection Type
- IEC 320 C20, Schuko CEE 7 / EU1-16P, BS1363A British

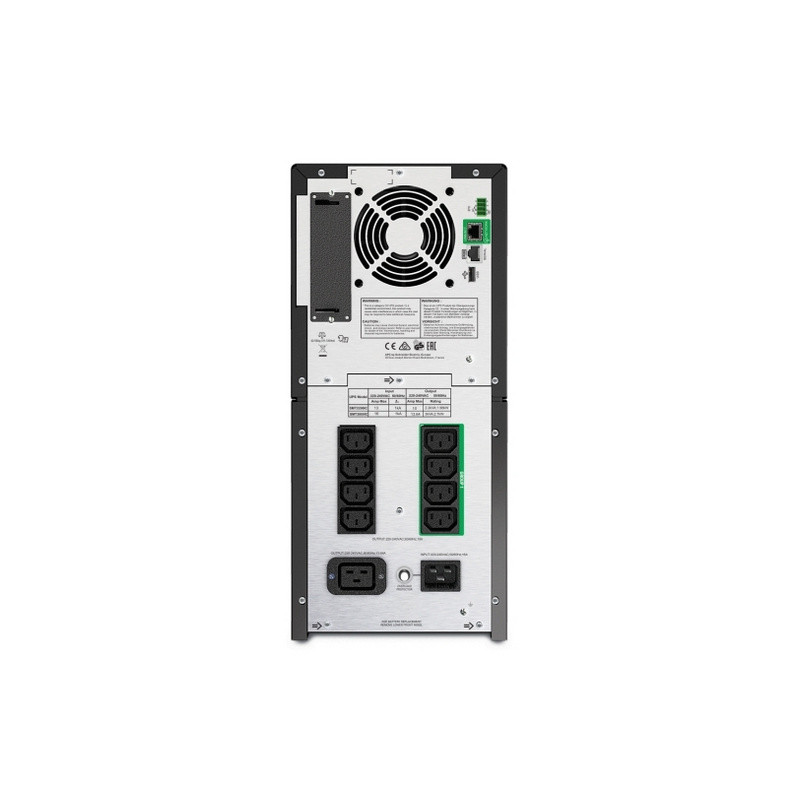

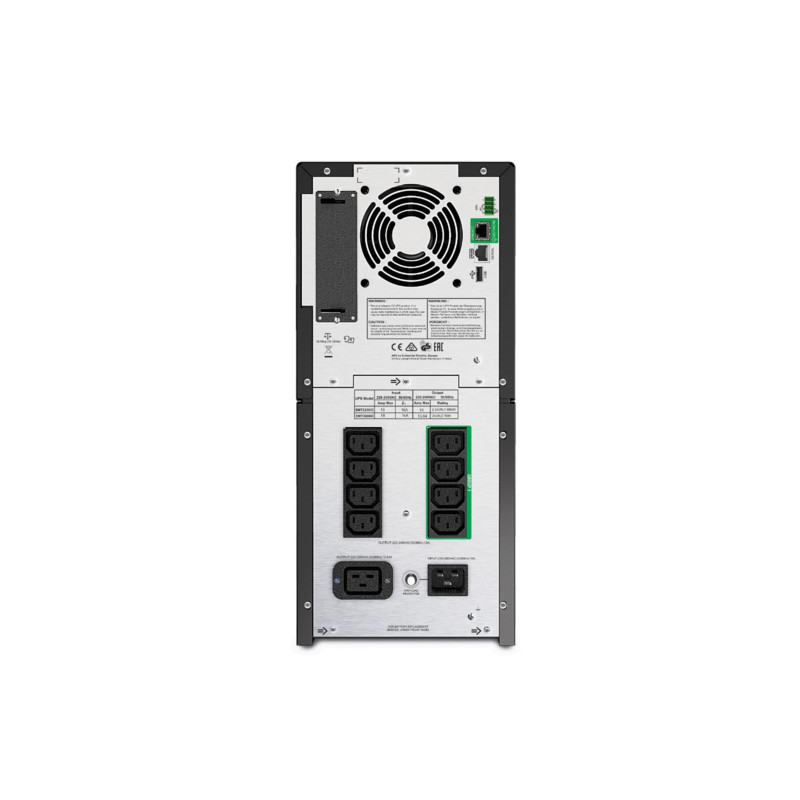

- Output Connection Type
- 8 IEC 320 C13, 2 IEC Jumpers, 1 IEC 320 C19
- Number of cables
- 1
- Provided equipment
- USB cable
- Redundant
- No
- net. Weight
- 50.20 kg
- Mounting preference
- No preference
- Mounting mode
- Not rack-mountable
- USB compatible
- Yes
- Network frequency
- 50/60 Hz +/- 3 Hz auto-sensing
- Input voltage limits
- 151...302 V adjustable, 160...286 V
- Maximum configurable power in VA
- 2200 VA
- Maximum configurable power in W
- 1980 W
- Output frequency
- 50/60 Hz +/- 1 Hz sync to mains
- UPS type
- Line-Interactive
- Wave type
- Sine wave
- Transfer time
- 6 ms typical : 10 ms maximum
- Product certifications
- CE, EAC, RCM, VDE, UK PSTI
- Standards
- EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018
- Ambient air temperature for operation
- 0..40 °C
- Relative humidity
- 0…95 %
- Operating altitude
- 0...10000 ft
- Ambient air temperature for storage
- -15…45 °C
- Storage Relative Humidity
- 0…95 %
- Storage altitude
- 0.0000000000…15240.0000000000 m
- Acoustic level
- 45 dBA
- Alarm
- Alarm when on battery : distinctive low battery alarm : configurable delays
- Surge energy rate
- 365 J
- Mounting location
- Front
- Number of battery replacement quantity
- 1
- Number of power module free slots
- 0
- Number of battery filled slots
- 0
- Сontrol panel
- Multifunction LCD status and control console
- Noise suppression
- Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
- Number of battery free slots
- 0
- Fiscalization 2.0 Article
- G46.50.22
- Number of power module filled slots
- 0
Opis
Max. power used
100%
Main input voltage
230 V
Other input voltage
220 V
240 V
Main output voltage
230 V
Other output voltage
220 V
240 V
Rated power [W]
1980 V
Rated power [VA]
2200 V·A
Type of input connection
IEC 320 C20
Schuko CEE 7/EU1-16P
BS1363A British
the type of initial connection
8 IEC 320 C13
2 IEC Jumpers
1 IEC 320 C19
Number of rack units
0U
Number of cables
1
Battery Type
Lead-acid battery
Additional equipment
USB Cable
Additional information
Configuration is possible for operation with an output voltage of 220: 230 or 240 V
The possibility of increasing the operating time from the battery
0
Pre-installed batteries
0
Number of empty battery compartments
0
Battery recharge time
Year 3
Number of battery replaceable units
1
Battery life
3...5 year(years)
Replaceable battery
RBC55
Charger power (W)
260 V rated
Input voltage limits
151...302 V adjustable
160...286 V
Network frequency
50/60 Hz +/- 3 Hz auto-sensing
Harmonic distortion
Less than 5
Maximum configurable power [VA]
2200 V·A
Maximum configurable power [W]
1980 V
Battery switching time
6 ms (typical value): 10 ms (maximum value)
Type of UPS
Linear Interactive UPS
Wave type
Sinusoidal signal
Output frequency
50/60 Hz +/- 3 Hz synchronized with the power grid
Sound level
45 dBA
Power dissipation
275 BTU/hour
Altitude above sea level
0...10000 feet
Ambient operating temperature
0…40 °C
The ambient temperature for the assembly.
-15…45 °C
Storage height
0.00...15240.00 m
Relative humidity
0...95 %
The relative humidity of storage
is 0...95 %
100%
Main input voltage
230 V
Other input voltage
220 V
240 V
Main output voltage
230 V
Other output voltage
220 V
240 V
Rated power [W]
1980 V
Rated power [VA]
2200 V·A
Type of input connection
IEC 320 C20
Schuko CEE 7/EU1-16P
BS1363A British
the type of initial connection
8 IEC 320 C13
2 IEC Jumpers
1 IEC 320 C19
Number of rack units
0U
Number of cables
1
Battery Type
Lead-acid battery
Additional equipment
USB Cable
Additional information
Configuration is possible for operation with an output voltage of 220: 230 or 240 V
The possibility of increasing the operating time from the battery
0
Pre-installed batteries
0
Number of empty battery compartments
0
Battery recharge time
Year 3
Number of battery replaceable units
1
Battery life
3...5 year(years)
Replaceable battery
RBC55
Charger power (W)
260 V rated
Input voltage limits
151...302 V adjustable
160...286 V
Network frequency
50/60 Hz +/- 3 Hz auto-sensing
Harmonic distortion
Less than 5
Maximum configurable power [VA]
2200 V·A
Maximum configurable power [W]
1980 V
Battery switching time
6 ms (typical value): 10 ms (maximum value)
Type of UPS
Linear Interactive UPS
Wave type
Sinusoidal signal
Output frequency
50/60 Hz +/- 3 Hz synchronized with the power grid
Sound level
45 dBA
Power dissipation
275 BTU/hour
Altitude above sea level
0...10000 feet
Ambient operating temperature
0…40 °C
The ambient temperature for the assembly.
-15…45 °C
Storage height
0.00...15240.00 m
Relative humidity
0...95 %
The relative humidity of storage
is 0...95 %
