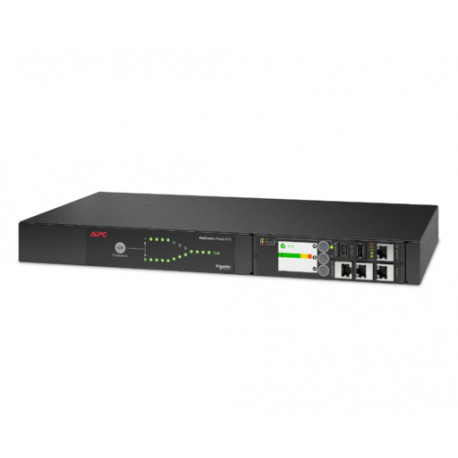

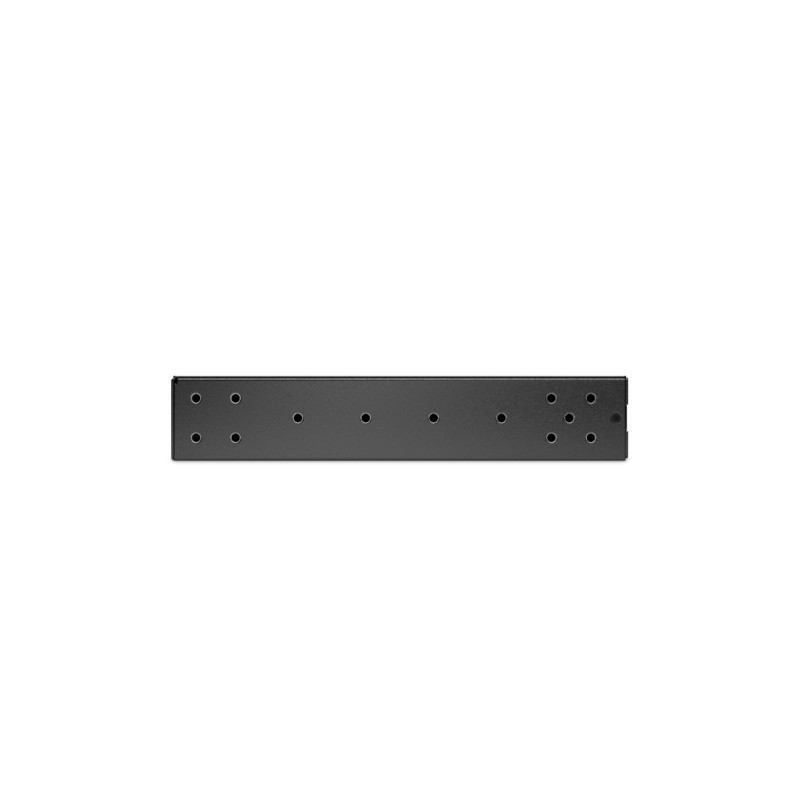

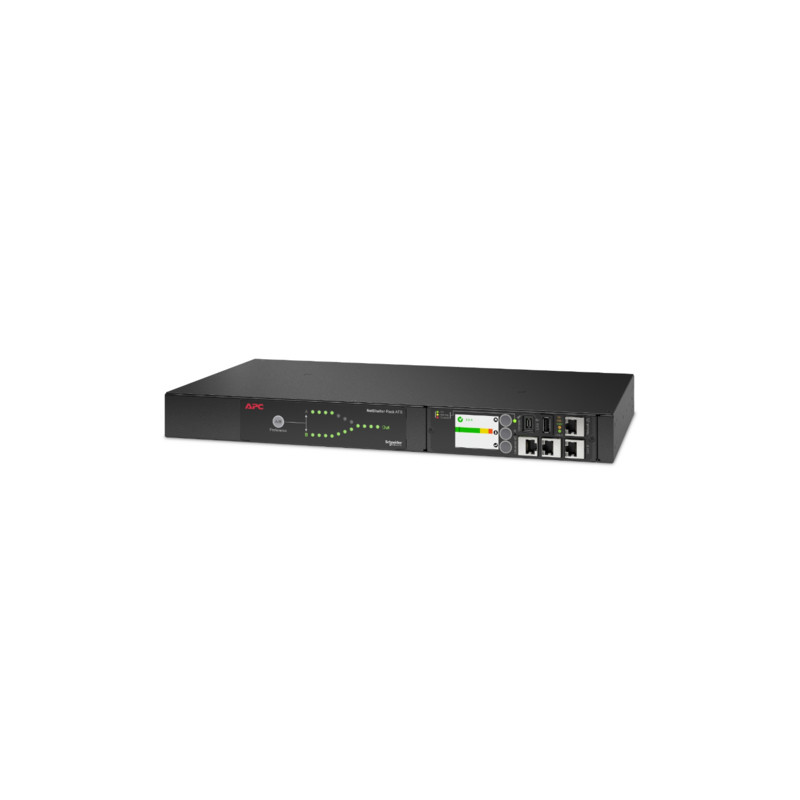

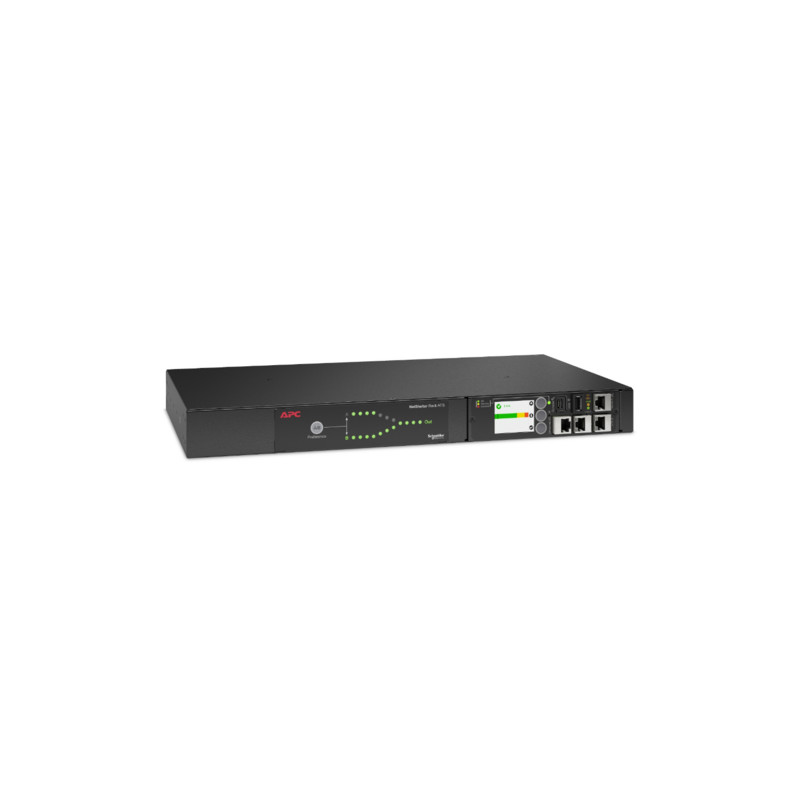

APC NetShelter Rack Automatic Transfer Switch, 1U, 16A, 230V, 2 C20 IN, 8 C13, 1 C19 OUT, 50/60Hz

Specifikacije

Width

43.20 cm

Height

4.40 cm

Depth

23.60 cm

Cable Length

2.44 m

Mounting Position

Horizontal

Main Input Voltage

230 V AC 1 phase

Main Output Voltage

230 V AC 1 phase

Product or component type

Automatic transfer switch

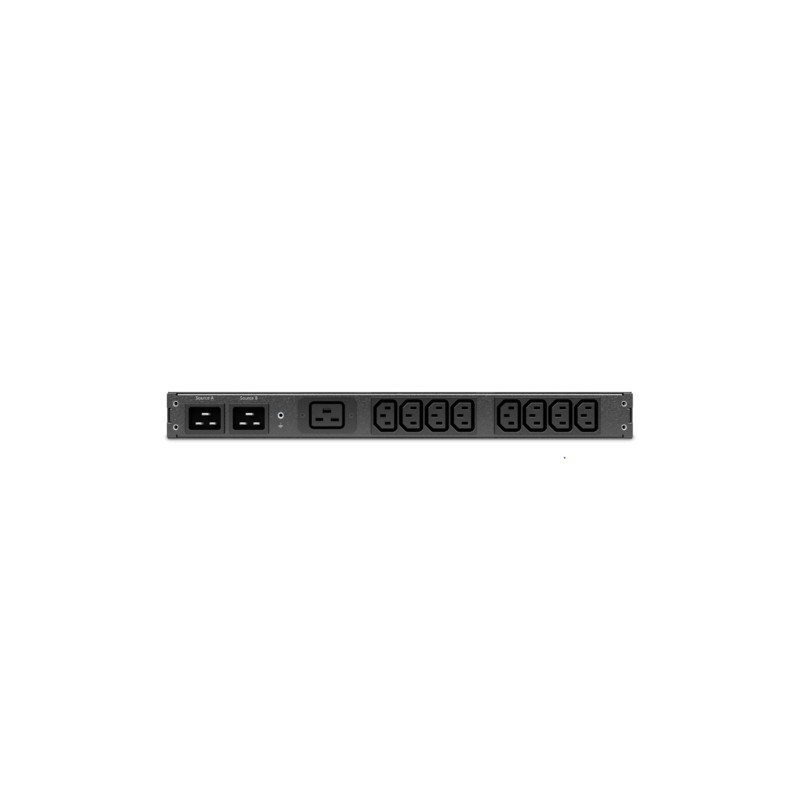

Input Connection Type

IEC 60320 C20 16 A 2P + E

Output Connection Type

1 IEC 60320 C19 16 A 2P + E

Provided equipment

Mounting hardware, Rack mounting brackets

net. Weight

3.74 kg

Mounting preference

No preference

Mounting mode

Rack-mountable

Network frequency

50/60 Hz

Product certifications

cUL listed, CE, UL listed

Standards

EN 55022 class A, FCC part 15 class A

Ambient air temperature for operation

-5…45 °C

Relative humidity

5…95 %

Operating altitude

0...10000 ft

Ambient air temperature for storage

-25…65 °C

Storage Relative Humidity

5…95 %

Storage altitude

0.00…15240.00 m

Mounting location

Front

Colour

Black

Number of rack unit

1 U

Qty. power socket outlets

9

[In] rated current

16 A

Permissible voltage

207…253 V

Max line current

20 A

Input current limits

20 A

Load capacity

3700 VA

Protection type

Without circuit breaker

Fiscalization 2.0 Article

G46.50.22
