APC

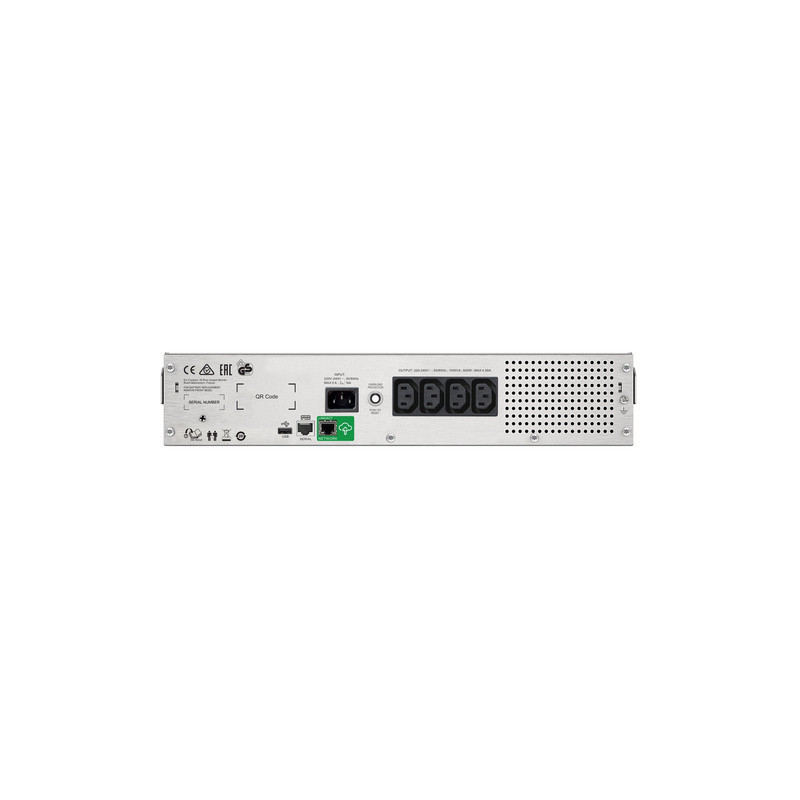

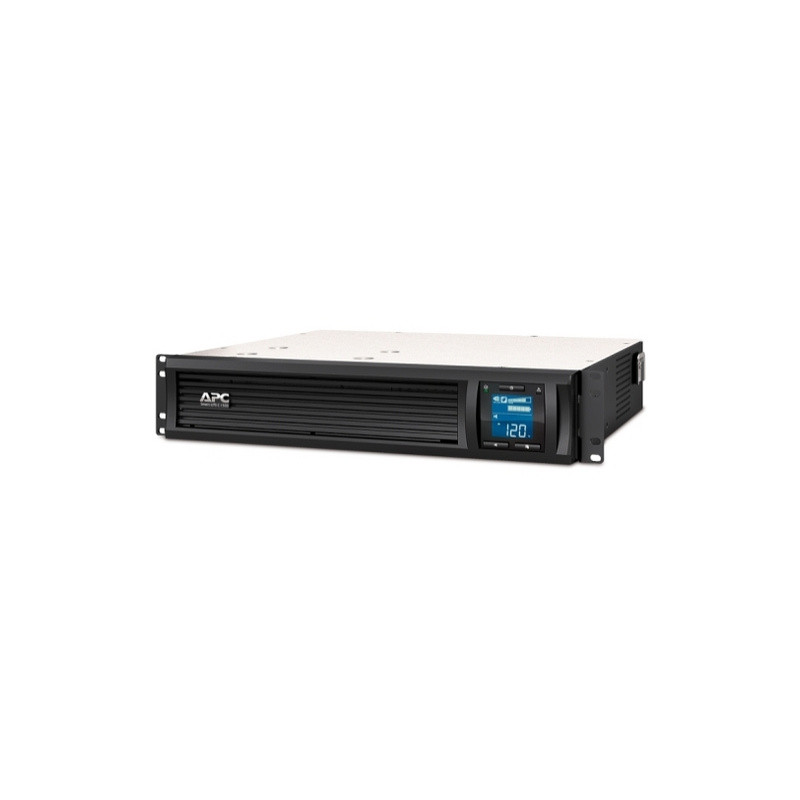

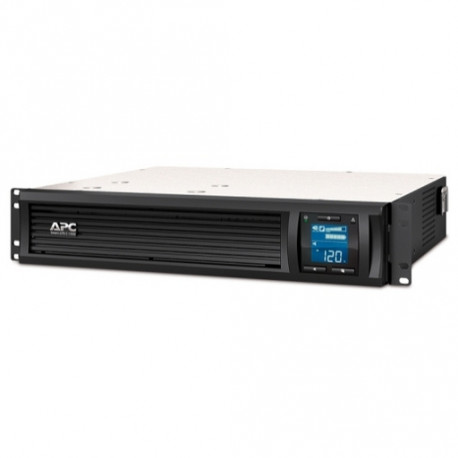

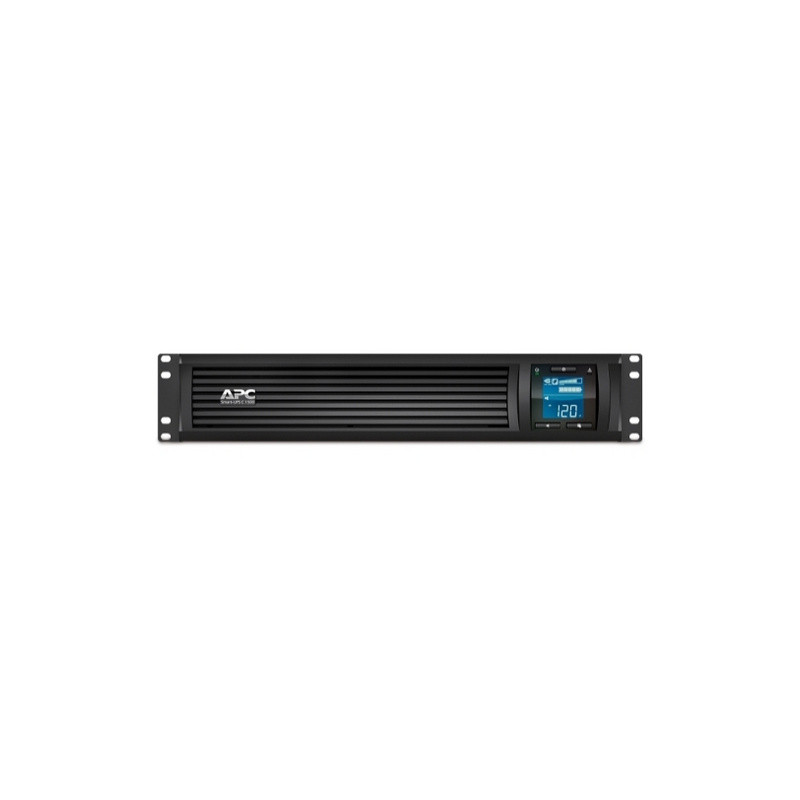

APC Smart-UPS C 1500VA 2U Rack mountable LCD 230V
Dobavljivo 3 kom kod dobavljača
Isporuka: 3 - 5 radnih dana
- Jamstvo: 2 god.
Vaša prava iz zakonskog jamstva
- Odstrani ovaj proizvod iz najdražih proizvoda
- Dodaj ovaj proizvod u najdraže proizvode
- Ispis
Specifikacije
- Width
- 43.20 cm
- Height
- 8.60 cm
- Depth
- 47.70 cm
- Battery Recharge Time
- 3 h
- Battery Life
- 4...6 year(s)
- Battery type
- Lead-acid battery
- Type of execution
- Rackmount
- Main Input Voltage
- 230 V
- Main Output Voltage
- 230 V
- Rated power in W
- 900 W
- Rated power in VA
- 1500 VA
- Product or component type
- Uninterruptible power supply (UPS)
- Input Connection Type
- IEC 320 C14
- Output Connection Type
- 4 IEC 320 C13, 2 IEC Jumpers
- Number of cables
- 1
- Provided equipment
- Documentation CD, Installation guide, Rack mounting brackets, USB cable
- Redundant
- No
- net. Weight
- 28.64 kg
- Mounting preference
- Lower
- Mounting mode
- Rack-mountable
- USB compatible
- Yes
- Network frequency
- 50/60 Hz +/- 3 Hz auto-sensing
- Input voltage limits
- 170...300 V adjustable, 180...287 V
- Maximum configurable power in VA
- 1500 VA
- Maximum configurable power in W
- 900 W
- Output frequency
- 50/60 Hz +/- 3 Hz sync to mains
- UPS type
- Line-Interactive
- Wave type
- Sine wave
- Transfer time
- 6 ms typical : 10 ms maximum
- Product certifications
- C-Tick, CE, GOST, VDE
- Standards
- EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018
- Ambient air temperature for operation
- 0..40 °C
- Relative humidity
- 0…95 %
- Operating altitude
- 0...10000 ft
- Ambient air temperature for storage
- -15…45 °C
- Storage Relative Humidity
- 0…95 %
- Storage altitude
- 0.0000000000…15240.0000000000 m
- Acoustic level
- 46 dBA
- Alarm
- Alarm when on battery : distinctive low battery alarm : configurable delays
- Surge energy rate
- 459 J
- Battery charger power
- 112 W rated
- Mounting location
- Front
- Number of battery replacement quantity
- 1
- Number of power module free slots
- 0
- Number of battery filled slots
- 0
- Сontrol panel
- Multifunction LCD status and control console
- Noise suppression
- Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
- Number of battery free slots
- 0
- Fiscalization 2.0 Article
- G46.50.22
- Number of power module filled slots
- 0
Opis
Output
- Maximum adjustable power (W) – 900 W/1.5 kVA;
- Output voltage – distortion;
- Less than - 5 %;
- Output frequency (network synchronization) - 50/60 Hz +/- 3 Hz Network synchronization;
- Other output voltages – 220 V, 240 V;
- Topology - Interactive line;
- The type of signal is sinusoidal;
- Transmission time is usually 6 ms, maximum 10 ms.
Input:
- Input frequency 50/60 Hz +/- 3 Hz. Auto-detection;
- Input voltage range for basic operations - 170 - 300V, adjustable, 180 - 287V;
- Number of power cords – 1;
- Other input voltages - 220 V, 240 V
Batteries and operating time:
- Battery type - Lead acid battery;
- Typical recharge time is 3 hours;
- REPLACEABLE BATTERY – APCRBC157;
- Expected battery life (years) – 4-6;
- Number of RBC – 1;
- Battery power (W) - 112 Watts.
Communications and management:
- Interface port(s) — RJ-45 serial port, USB;
- Control panel - Multi-function LCD status display and control console.
Surge protection and filtration:
- Peak energy - 459J;
- Filtering - Constant multi-pole interference filtering: 0.3% IEEE pulse transmission: zero response time limitations: complies with UL 1449.
Physical:
- Package weight - 31.91 kg;
- Package height - 251 mm, 25.1 cm;
- Delivery width - 603 mm, 60.3 cm;
- Transportation depth - 594 mm, 59.4 cm;
- Color;
- Black.
Environmental:
- Operating temperature - 0 - 40°C;
- Operating relative humidity - 0 - 95 %;
- Working height – 0 – 3048 meters;
- Storage temperature - (-15 - 45°C);
- Relative humidity of storage - 0 - 95 %;
- Storage height – 0 – 15240 meters;
- Sound noise at a distance of 1 meter from the surface of the unit - 46.0 dBA;
- Online heat dissipation - 90.0 BTU/hour.
- Maximum adjustable power (W) – 900 W/1.5 kVA;
- Output voltage – distortion;
- Less than - 5 %;
- Output frequency (network synchronization) - 50/60 Hz +/- 3 Hz Network synchronization;
- Other output voltages – 220 V, 240 V;
- Topology - Interactive line;
- The type of signal is sinusoidal;
- Transmission time is usually 6 ms, maximum 10 ms.
Input:
- Input frequency 50/60 Hz +/- 3 Hz. Auto-detection;
- Input voltage range for basic operations - 170 - 300V, adjustable, 180 - 287V;
- Number of power cords – 1;
- Other input voltages - 220 V, 240 V
Batteries and operating time:
- Battery type - Lead acid battery;
- Typical recharge time is 3 hours;
- REPLACEABLE BATTERY – APCRBC157;
- Expected battery life (years) – 4-6;
- Number of RBC – 1;
- Battery power (W) - 112 Watts.
Communications and management:
- Interface port(s) — RJ-45 serial port, USB;
- Control panel - Multi-function LCD status display and control console.
Surge protection and filtration:
- Peak energy - 459J;
- Filtering - Constant multi-pole interference filtering: 0.3% IEEE pulse transmission: zero response time limitations: complies with UL 1449.
Physical:
- Package weight - 31.91 kg;
- Package height - 251 mm, 25.1 cm;
- Delivery width - 603 mm, 60.3 cm;
- Transportation depth - 594 mm, 59.4 cm;
- Color;
- Black.
Environmental:
- Operating temperature - 0 - 40°C;
- Operating relative humidity - 0 - 95 %;
- Working height – 0 – 3048 meters;
- Storage temperature - (-15 - 45°C);
- Relative humidity of storage - 0 - 95 %;
- Storage height – 0 – 15240 meters;
- Sound noise at a distance of 1 meter from the surface of the unit - 46.0 dBA;
- Online heat dissipation - 90.0 BTU/hour.
