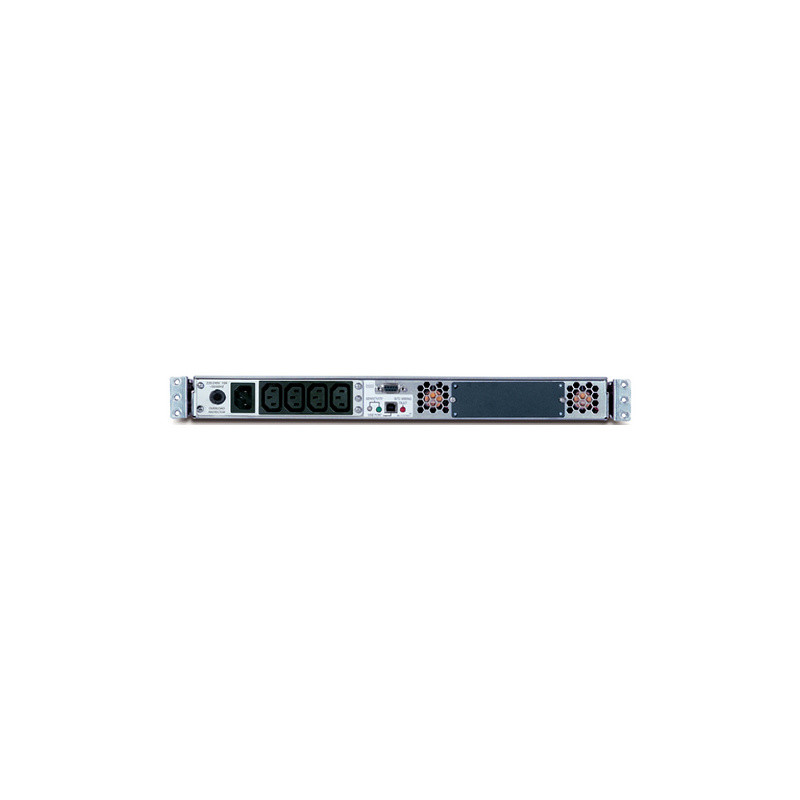

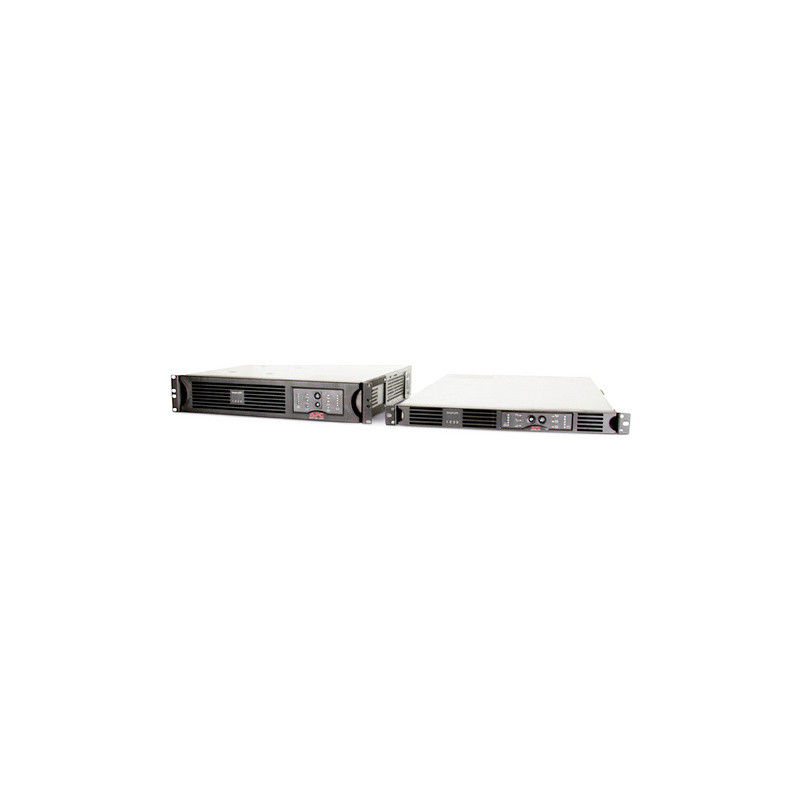

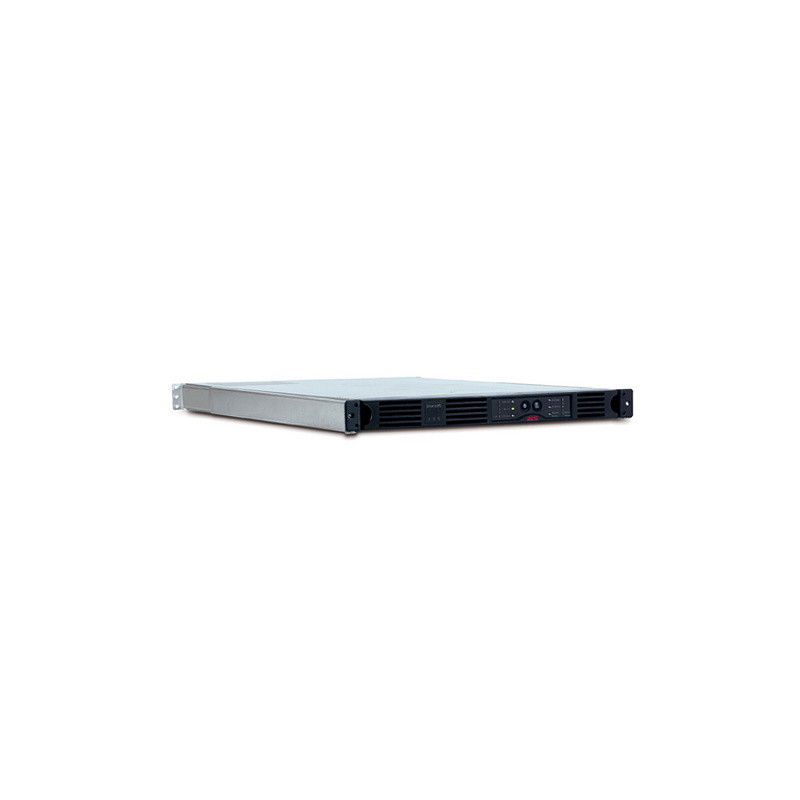

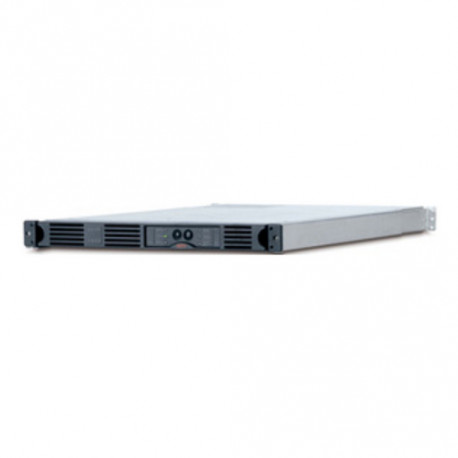

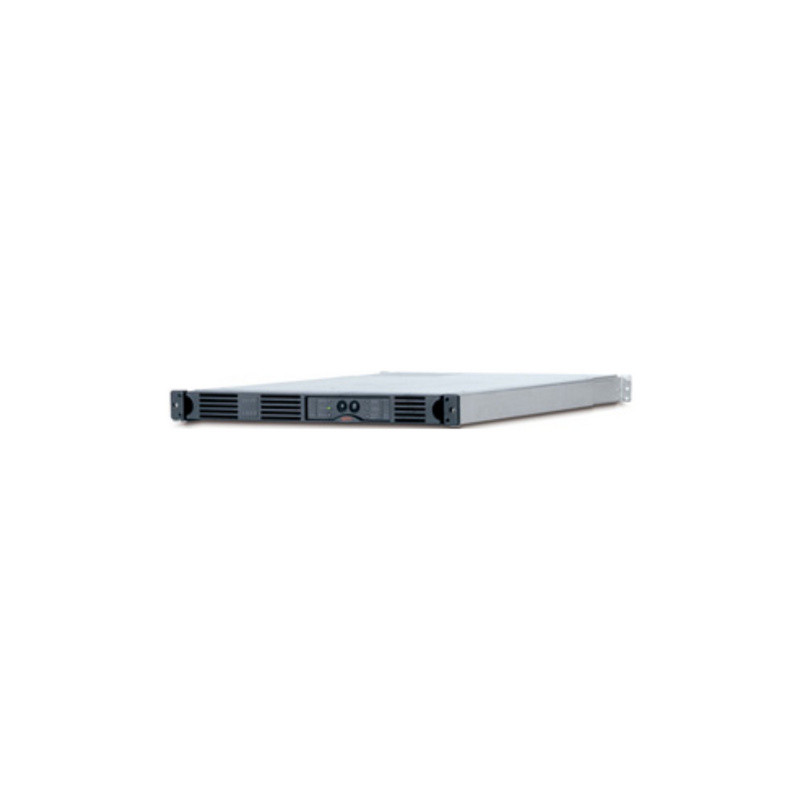

APC Smart UPS RackMount 750VA Black

Specifikacije

Width

43.20 cm

Height

4.40 cm

Depth

66.00 cm

Battery Recharge Time

2 h

Battery type

Lead-acid battery

Main Input Voltage

230 V

Main Output Voltage

230 V

Rated power in W

480 W

Rated power in VA

750 VA

Product or component type

Uninterruptible power supply (UPS)

Input Connection Type

IEC 320 C14

Output Connection Type

4 IEC 320 C13, 2 IEC Jumpers

Number of cables

1

Provided equipment

User manual

Redundant

No

net. Weight

21.82 kg

Mounting preference

Lower

Mounting mode

Rack-mountable

USB compatible

Yes

Network frequency

50/60 Hz +/- 3 Hz auto-sensing

Input voltage limits

151...302 V adjustable, 160...286 V

Maximum configurable power in VA

750 VA

Maximum configurable power in W

480 W

Output frequency

47...53 Hz for 50 Hz nominal sync to mains, 57...63 Hz for 60 Hz nominal sync to mains

UPS type

Line-Interactive

Wave type

Sine wave

Product certifications

C-Tick, CE, GOST, VDE

Standards

EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018

Ambient air temperature for operation

0..40 °C

Relative humidity

0…95 %

Operating altitude

0...10000 ft

Ambient air temperature for storage

-15…45 °C

Storage Relative Humidity

0…95 %

Storage altitude

0.0000000000…15240.0000000000 m

Acoustic level

55 dBA

Alarm

Alarm when on battery : distinctive low battery alarm : configurable delays

Surge energy rate

480 J

Battery charger power

107 W rated

Mounting location

Front

Number of battery replacement quantity

1

Сontrol panel

LED status display with load and battery bar-graphs and on line : on battery : replace battery : and overload indicators

Noise suppression

Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
