APC

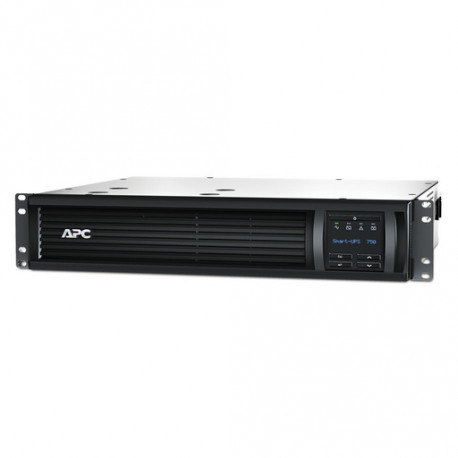

APC Smart-UPS 750VA LCD RM 2U 230V with SmartConnect
- Jamstvo: 3 god.
Vaša prava iz zakonskog jamstva
- Odstrani ovaj proizvod iz najdražih proizvoda
- Dodaj ovaj proizvod u najdraže proizvode
- Ispis
Specifikacije
- Width
- 43.20 cm
- Height
- 8.60 cm
- Depth
- 40.90 cm
- Battery Recharge Time
- 3 h
- Cable Length
- 1.80 m
- Battery Life
- 3...5 year(s)
- Battery type
- Lead-acid battery
- Type of execution
- Rackmount
- Main Input Voltage
- 230 V
- Main Output Voltage
- 230 V
- Rated power in W
- 500 W
- Rated power in VA
- 750 VA
- Product or component type
- Uninterruptible power supply (UPS)
- Input Connection Type
- IEC 320 C14
- Output Connection Type
- 4 IEC 320 C13, 2 IEC Jumpers
- Number of cables
- 1
- Provided equipment
- Documentation CD, Installation guide, Rack mounting brackets, USB cable
- Redundant
- No
- net. Weight
- 16.60 kg
- Mounting preference
- Lower
- Mounting mode
- Rack-mountable
- USB compatible
- Yes
- Network frequency
- 50/60 Hz +/- 3 Hz auto-sensing
- Input voltage limits
- 151...302 V adjustable, 160...286 V
- Maximum configurable power in VA
- 750 VA
- Maximum configurable power in W
- 500 W
- Output frequency
- 50/60 Hz +/- 3 Hz sync to mains
- UPS type
- Line-Interactive
- Wave type
- Sine wave
- Transfer time
- 6 ms typical : 10 ms maximum
- Product certifications
- CE, EAC, RCM, TÜV, VDE, UK PSTI
- Standards
- EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018
- Ambient air temperature for operation
- 0..40 °C
- Relative humidity
- 0…95 %
- Operating altitude
- 0...10000 ft
- Ambient air temperature for storage
- -15…45 °C
- Storage Relative Humidity
- 0…95 %
- Storage altitude
- 0.0000000000…15240.0000000000 m
- Acoustic level
- 42 dBA
- Alarm
- Alarm when on battery : distinctive low battery alarm : configurable delays
- Surge energy rate
- 459 J
- Battery charger power
- 56 W rated
- Mounting location
- Front
- Number of battery replacement quantity
- 1
- Сontrol panel
- Multifunction LCD status and control console
- Noise suppression
- Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
- Fiscalization 2.0 Article
- G46.50.22
Opis
Main:
- Main input voltage – 230 V;
- Other input voltage - 220 V; 240 V;
- Main output voltage - 230 V;
- Other output voltage - 220 V; 240 V;
- Rated power in Watts - 500 Watts;
- Rated power in VA – 750 VA;
- Type of input connection - IEC 320 C14;
- Type of output connection - 4 IEC 320 C13;
2 IEC jumpers;
- Number of racks - 2U;
- Number of cables – 1;
- Battery type - Lead-acid battery;
Batteries and operating time:
- Additional information - Configurable for rated output voltage 220: 230 or 240;
- Extended operating time – 0;
- Number of filled slot batteries - 0;
- The number of free battery slots is 0;
- Battery recharge time is 3 hours;
- Number of replaceable batteries – 1;
- Battery life – 4...6 years;
— Replaceable battery — APCRBC123;
- Battery capacity in VACH - battery life 168 vach;
- The power of the charger is rated at 56 watts.
Physical:
- Color – Black;
- Height – 8.6 cm;
- Width – 43.2 cm;
- Depth – 40.9 cm;
- Net weight – 16.6 kg;
- Installation location – Front;
- Installation preference – Lower;
- Mounting method – Rack;
- Double-column mounting - 0;
- USB compatible – Yes.
Input:
- input voltage limits - 151...302 In adjustable;
160...286 V.
- Network frequency - 50/60 Hz +/- 3 Hz, auto-detection.
Output:
- Harmonic distortion - Less than 5 %;
- Maximum configurable power in VA – 750 VA;
- Maximum adjustable power in Watts – 500 watts;
- Switching time is typically 6 ms, maximum 10 ms;
- UPS type - Linear interactive;
- Wave type - Sinusoidal;
- Output frequency - 50/60 Hz +/- 3 Hz, synchronization with the network.
Environmental:
- Noise level – 42 dBA;
- Heat dissipation – 46 BTU/h;
- Working height - 0...10000 feet;
- Ambient temperature during operation - 0...40 °C;
- ambient temperature during storage - (-15...45) °C;
- Storage height - 0.00...15240.00 m;
- relative humidity - 0...95%;
- Relative humidity of storage – 0...95%.
Communications and management:
- Control panel - Multi-function LCD status display and control console;
- Emergency power off – Optional;
- Free slots – 1;
- Support for the communication port. - SmartConnect Ethernet port: the availability of the cloud monitoring function depends on the conditions of use;
- Battery alarm: Distinctive low battery alarm: configurable delays.
- Main input voltage – 230 V;
- Other input voltage - 220 V; 240 V;
- Main output voltage - 230 V;
- Other output voltage - 220 V; 240 V;
- Rated power in Watts - 500 Watts;
- Rated power in VA – 750 VA;
- Type of input connection - IEC 320 C14;
- Type of output connection - 4 IEC 320 C13;
2 IEC jumpers;
- Number of racks - 2U;
- Number of cables – 1;
- Battery type - Lead-acid battery;
Batteries and operating time:
- Additional information - Configurable for rated output voltage 220: 230 or 240;
- Extended operating time – 0;
- Number of filled slot batteries - 0;
- The number of free battery slots is 0;
- Battery recharge time is 3 hours;
- Number of replaceable batteries – 1;
- Battery life – 4...6 years;
— Replaceable battery — APCRBC123;
- Battery capacity in VACH - battery life 168 vach;
- The power of the charger is rated at 56 watts.
Physical:
- Color – Black;
- Height – 8.6 cm;
- Width – 43.2 cm;
- Depth – 40.9 cm;
- Net weight – 16.6 kg;
- Installation location – Front;
- Installation preference – Lower;
- Mounting method – Rack;
- Double-column mounting - 0;
- USB compatible – Yes.
Input:
- input voltage limits - 151...302 In adjustable;
160...286 V.
- Network frequency - 50/60 Hz +/- 3 Hz, auto-detection.
Output:
- Harmonic distortion - Less than 5 %;
- Maximum configurable power in VA – 750 VA;
- Maximum adjustable power in Watts – 500 watts;
- Switching time is typically 6 ms, maximum 10 ms;
- UPS type - Linear interactive;
- Wave type - Sinusoidal;
- Output frequency - 50/60 Hz +/- 3 Hz, synchronization with the network.
Environmental:
- Noise level – 42 dBA;
- Heat dissipation – 46 BTU/h;
- Working height - 0...10000 feet;
- Ambient temperature during operation - 0...40 °C;
- ambient temperature during storage - (-15...45) °C;
- Storage height - 0.00...15240.00 m;
- relative humidity - 0...95%;
- Relative humidity of storage – 0...95%.
Communications and management:
- Control panel - Multi-function LCD status display and control console;
- Emergency power off – Optional;
- Free slots – 1;
- Support for the communication port. - SmartConnect Ethernet port: the availability of the cloud monitoring function depends on the conditions of use;
- Battery alarm: Distinctive low battery alarm: configurable delays.
