APC

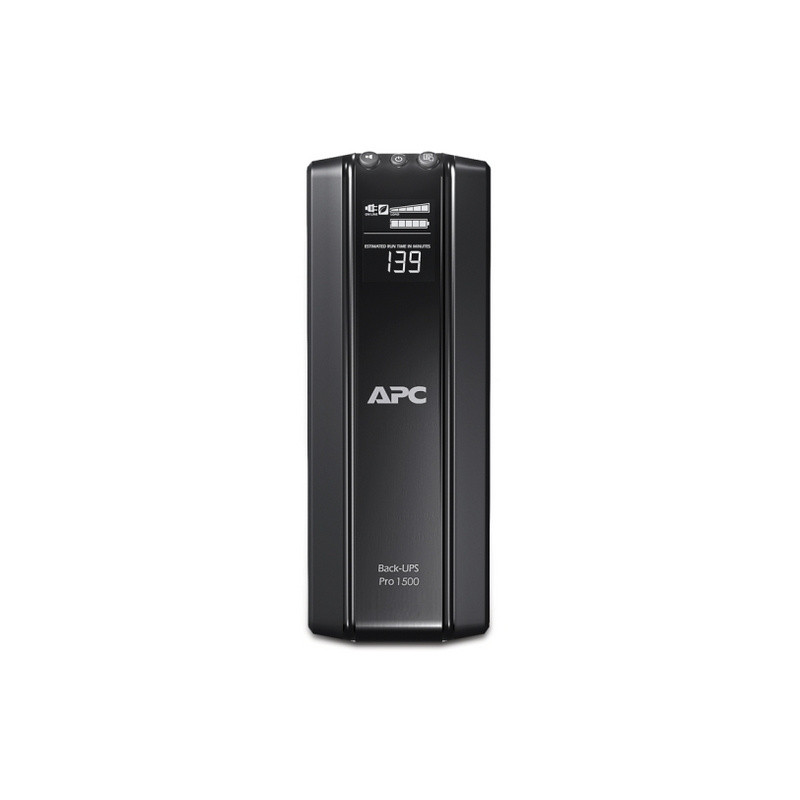

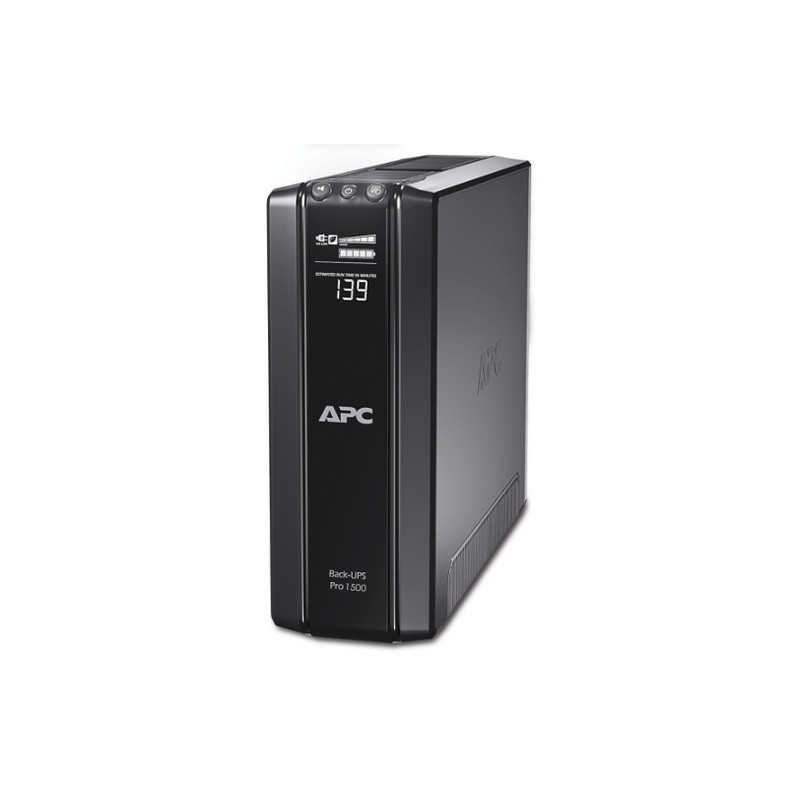

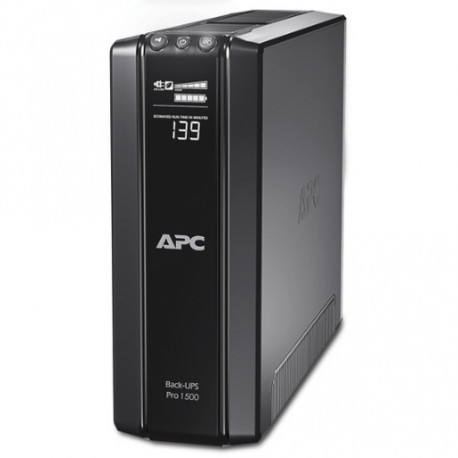

APC Power-Saving Back-UPS Pro 1500, 230V
Dobavljivo 7 kom kod dobavljača
Isporuka: 3 - 5 radnih dana
- Jamstvo: 3 god.
Vaša prava iz zakonskog jamstva
- Odstrani ovaj proizvod iz najdražih proizvoda
- Dodaj ovaj proizvod u najdraže proizvode
- Ispis
Specifikacije
- Width
- 11.20 cm
- Height
- 30.10 cm
- Depth
- 38.00 cm
- Battery Recharge Time
- 8 h
- Battery capacity
- 9.0 Ah
- Battery Life
- 3...5 year(s)
- Battery type
- Lead-acid battery
- Main Input Voltage
- 230 V
- Main Output Voltage
- 230 V
- Rated power in W
- 865 W
- Rated power in VA
- 1500 VA
- Product or component type
- Uninterruptible power supply (UPS)
- Input Connection Type
- IEC 60320 C13
- Output Connection Type
- 5 IEC 60320 C13, 5 IEC 60320 C13 surge, 2 IEC Jumpers
- Number of cables
- 1
- Provided equipment
- User manual
- Battery voltage
- 24 V
- Redundant
- No
- net. Weight
- 12.70 kg
- Mounting preference
- No preference
- Mounting mode
- Not rack-mountable
- USB compatible
- No
- Network frequency
- 50/60 Hz +/- 3 Hz auto-sensing
- Input voltage limits
- 156...300 V, adjustable 176...294 V
- Maximum configurable power in VA
- 1500 VA
- Maximum configurable power in W
- 865 W
- Output frequency
- 50/60 Hz +/- 3 Hz sync to mains
- UPS type
- Line-Interactive
- Wave type
- Stepped approximation to a sinewave
- Transfer time
- 10 ms typical : 12 ms maximum
- Product certifications
- A-Tick C-Tick, CE, GOST, Telepermit, TÜV
- Standards
- EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018
- Ambient air temperature for operation
- 0..40 °C
- Relative humidity
- 0…95 %
- Operating altitude
- 0...30000 ft
- Ambient air temperature for storage
- -15…45 °C
- Storage Relative Humidity
- 0…95 %
- Storage altitude
- 0.0000000000…15240.0000000000 m
- Acoustic level
- 45 dBA
- Alarm
- Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
- Surge energy rate
- 441 J
- Battery charger power
- 23 W rated
- Number of battery replacement quantity
- 0
- Number of power module free slots
- 0
- Number of battery filled slots
- 0
- Colour
- Black
- Crest factor
- 3 : 1
- Сontrol panel
- Multifunction LCD status and control console
- Noise suppression
- Full time multi-pole noise filtering : 10% of IEEE surge let-through : zero clamping response time: instantaneous
- Number of battery free slots
- 0
- Fiscalization 2.0 Article
- G46.50.22
- Number of power module filled slots
- 0
Opis
Main features
- Operating time with a load of 865 W: 3m 39s
- Output power: 865 Watts / 1.5kVA

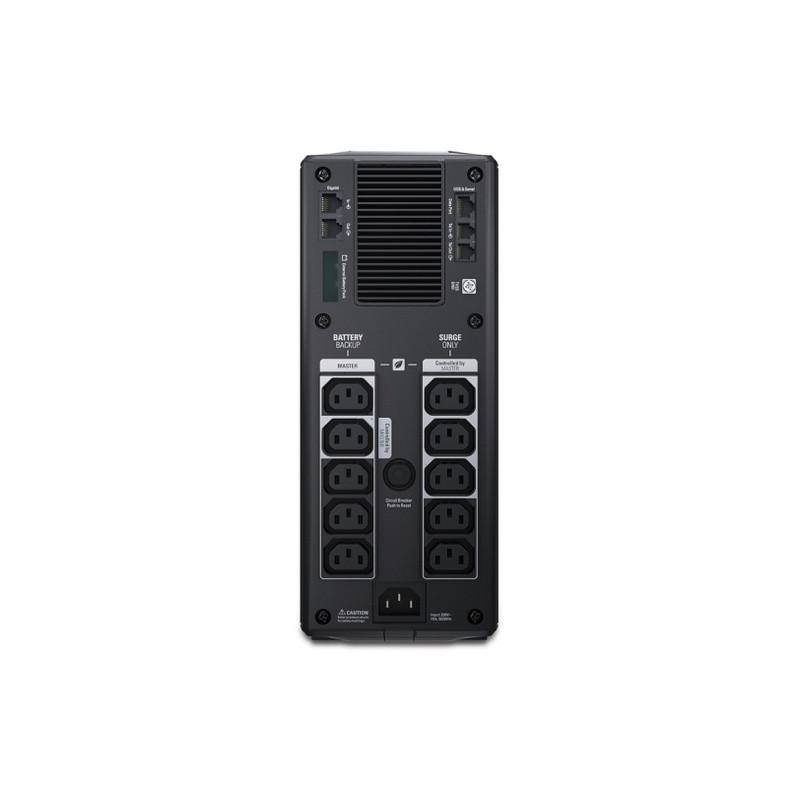

- Output connectors:
(5) IEC 60320 C13 (Battery backup)
(2) IEC Jumpers (Battery Backup)
(5) IEC 60320 C13 (Surge protection)
- Rated output voltage: 230V
- Rated input voltage: 230V
- Input connection type: IEC 60320 C14
Exit
- Maximum output power: 865 Watts / 1500 VA
- Maximum set power value: 865 Watts / 1500 VA
- Rated output voltage: 230V
- Output connections: (2) IEC 320 C13 (Surge protection); (6) IEC 320 C13 (Battery backup)
Entrance
- Rated input voltage: 230V
- Input frequency: 47 - 63 Hz
- Input connection type: IEC-320 C14
- Input voltage range during mains operation: 175 - 295V
- Input voltage adjustment range for mains operation: 160 - 286V
Batteries and battery life
- Battery type: maintenance-free sealed lead acid battery with thickened electrolyte : leak protection
- Pre-installed batteries:1
- Typical recharge time: 8 hours
- Replacement battery pack: RBC33
- The number of replaceable sets of batteries:1
Communication and administrative tools
- Interface port: USB
- Control panel. LED display with scales of load and battery charge, as well as indicators On Line (mains operation): On Battery (battery operation): Replace Battery (battery replacement required): and Overload (overload) = Indicator of On-Line (mains operation) modes: On Battery (battery operation): Replace Battery (need to replace the battery): and Overload (overload).
- Beep. The signal to switch to battery operation mode : a special signal of battery exhaustion : the possibility of setting delays
Surge protection and noise filtering.
- Rating by the level of absorbed burst energy: 180 Joules
- Filtering.Permanent multi-pole noise filter : residual voltage amplitude 0.5% according to IEEE standards : voltage surge limitation without time delay : compliance with UL 1449 requirements
- Protection of data transmission lines.Fax modem /DSL modem protection on the side of the telephone line with an RJ-11 outlet (for one two-wire line),Protection on the 10/100 Base-T Ethernet line with an RJ45 socket
- Operating time with a load of 865 W: 3m 39s
- Output power: 865 Watts / 1.5kVA
- Output connectors:
(5) IEC 60320 C13 (Battery backup)
(2) IEC Jumpers (Battery Backup)
(5) IEC 60320 C13 (Surge protection)
- Rated output voltage: 230V
- Rated input voltage: 230V
- Input connection type: IEC 60320 C14
Exit
- Maximum output power: 865 Watts / 1500 VA
- Maximum set power value: 865 Watts / 1500 VA
- Rated output voltage: 230V
- Output connections: (2) IEC 320 C13 (Surge protection); (6) IEC 320 C13 (Battery backup)
Entrance
- Rated input voltage: 230V
- Input frequency: 47 - 63 Hz
- Input connection type: IEC-320 C14
- Input voltage range during mains operation: 175 - 295V
- Input voltage adjustment range for mains operation: 160 - 286V
Batteries and battery life
- Battery type: maintenance-free sealed lead acid battery with thickened electrolyte : leak protection
- Pre-installed batteries:1
- Typical recharge time: 8 hours
- Replacement battery pack: RBC33
- The number of replaceable sets of batteries:1
Communication and administrative tools
- Interface port: USB
- Control panel. LED display with scales of load and battery charge, as well as indicators On Line (mains operation): On Battery (battery operation): Replace Battery (battery replacement required): and Overload (overload) = Indicator of On-Line (mains operation) modes: On Battery (battery operation): Replace Battery (need to replace the battery): and Overload (overload).
- Beep. The signal to switch to battery operation mode : a special signal of battery exhaustion : the possibility of setting delays
Surge protection and noise filtering.
- Rating by the level of absorbed burst energy: 180 Joules
- Filtering.Permanent multi-pole noise filter : residual voltage amplitude 0.5% according to IEEE standards : voltage surge limitation without time delay : compliance with UL 1449 requirements
- Protection of data transmission lines.Fax modem /DSL modem protection on the side of the telephone line with an RJ-11 outlet (for one two-wire line),Protection on the 10/100 Base-T Ethernet line with an RJ45 socket
