- Width
- 13.80 cm
- Height
- 16.10 cm
- Depth
- 36.90 cm
- Battery Recharge Time
- 3 h
- Battery capacity
- 7.0 Ah
- Cable Length
- 1.80 m
- Battery Life
- 3...5 year(s)
- Battery type
- Lead-acid battery
- Type of execution
- Tower
- Main Input Voltage
- 230 V
- Main Output Voltage
- 230 V
- Rated power in W
- 500 W
- Rated power in VA
- 750 VA
- Product or component type
- Uninterruptible power supply (UPS)
- Input Connection Type
- IEC 320 C14

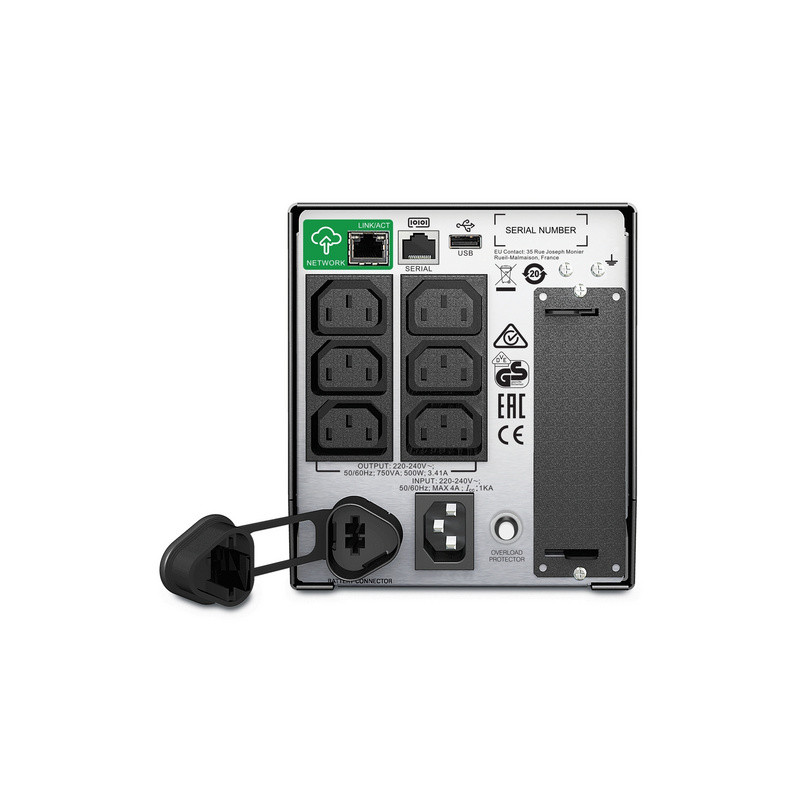

- Output Connection Type
- 6 IEC 320 C13, 2 IEC Jumpers
- Number of cables
- 1
- Provided equipment
- USB cable
- Battery voltage
- 24 V
- Redundant
- No
- net. Weight
- 11.80 kg
- Mounting preference
- No preference
- Mounting mode
- Not rack-mountable
- USB compatible
- Yes
- Network frequency
- 50/60 Hz +/- 3 Hz auto-sensing
- Input voltage limits
- 151...302 V adjustable, 160...280 V
- Maximum configurable power in VA
- 750 VA
- Maximum configurable power in W
- 500 W
- Output frequency
- 50/60 Hz +/- 3 Hz sync to mains
- UPS type
- Line-Interactive
- Wave type
- Sine wave
- Transfer time
- 6 ms typical : 10 ms maximum
- Product certifications
- CE, EAC, RCM, VDE, UK PSTI
- Standards
- EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018
- Ambient air temperature for operation
- 0..40 °C
- Relative humidity
- 0…95 %
- Operating altitude
- 0...10000 ft
- Ambient air temperature for storage
- -15…45 °C
- Storage Relative Humidity
- 0…95 %
- Storage altitude
- 0.0000000000…15240.0000000000 m
- Acoustic level
- 40 dBA
- Alarm
- Alarm when on battery : distinctive low battery alarm : configurable delays
- Surge energy rate
- 540 J
- Battery charger power
- 49 W rated
- Mounting location
- Front
- Number of battery replacement quantity
- 1
- Сontrol panel
- Multifunction LCD status and control console
- Noise suppression
- Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
- Fiscalization 2.0 Article
- G46.50.22
