BX2200MI
Novi proizvod
3 - 5 radnih dana
2 god.
Količina: 12 raspoloživa (kod dobavljača)
| Width | 14.00 cm |
| Height | 19.00 cm |
| Depth | 39.00 cm |
| Battery Recharge Time | 8 h |
| Battery capacity | 9.0 Ah |
| Cable Length | 1.2 m |
| Battery Life | 3...5 year(s) |
| Battery type | Lead-acid battery |
| Main Input Voltage | 230 V |
| Main Output Voltage | 230 V |
| Rated power in W | 1200 W |
| Rated power in VA | 2.2 kVA |
| Product or component type | Uninterruptible power supply (UPS) |
| Input Connection Type | IEC 60320 C13 |
| Output Connection Type | 6 IEC 60320 C13 |
| Number of cables | 1 |
| Provided equipment | User manual |
| Battery voltage | 24 V |
| Redundant | No |
| net. Weight | 12.30 kg |
| Mounting preference | No preference |
| Mounting mode | Not rack-mountable |
| USB compatible | Yes |
| Network frequency | 50/60 Hz +/- 1 Hz sync to mains |
| Input voltage limits | 140...300 V |
| Maximum configurable power in VA | 2200 VA |
| Maximum configurable power in W | 1200 W |
| Output frequency | 50/60 Hz +/- 1 Hz sync to mains |
| UPS type | Line-Interactive |
| Wave type | Stepped approximation to a sinewave |
| Transfer time | 6 ms typical : 10 ms maximum |
| Product certifications | CE, CB, EAC |
| Standards | EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018 |
| Ambient air temperature for operation | 0..40 °C |
| Relative humidity | 0…95 % |
| Operating altitude | 0...3000 m |
| Ambient air temperature for storage | -15…40 °C |
| Storage Relative Humidity | 0…95 % |
| Storage altitude | 0…3000 m |
| Acoustic level | 40 dBA |
| Surge energy rate | 273 J |
| Сontrol panel | LED Status display with on line : on battery |

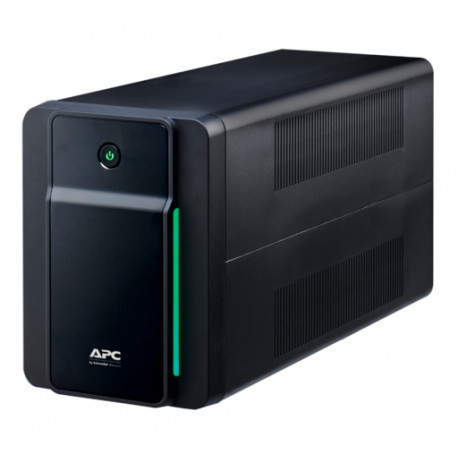

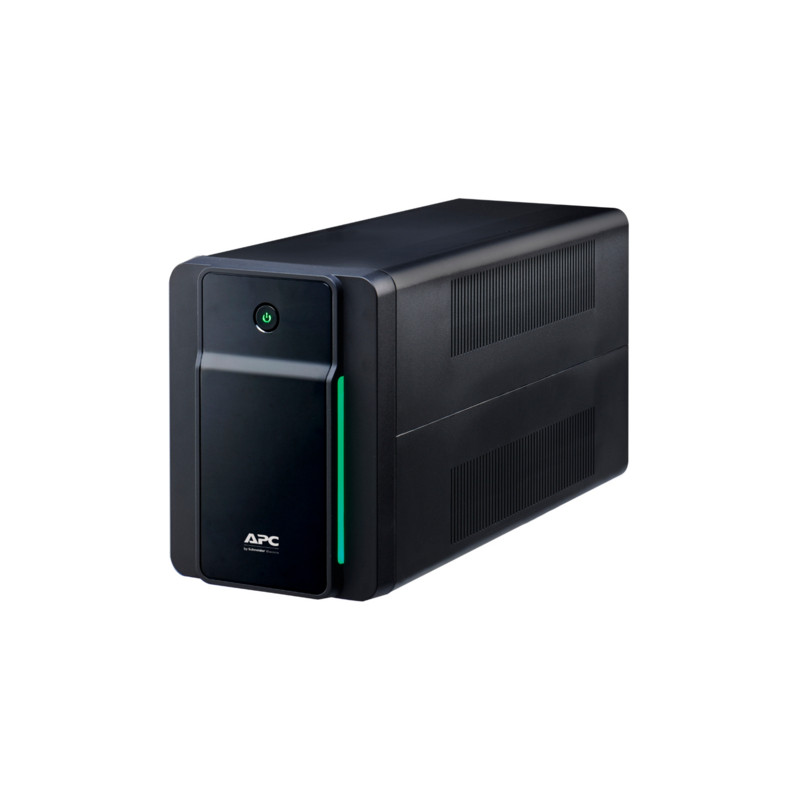

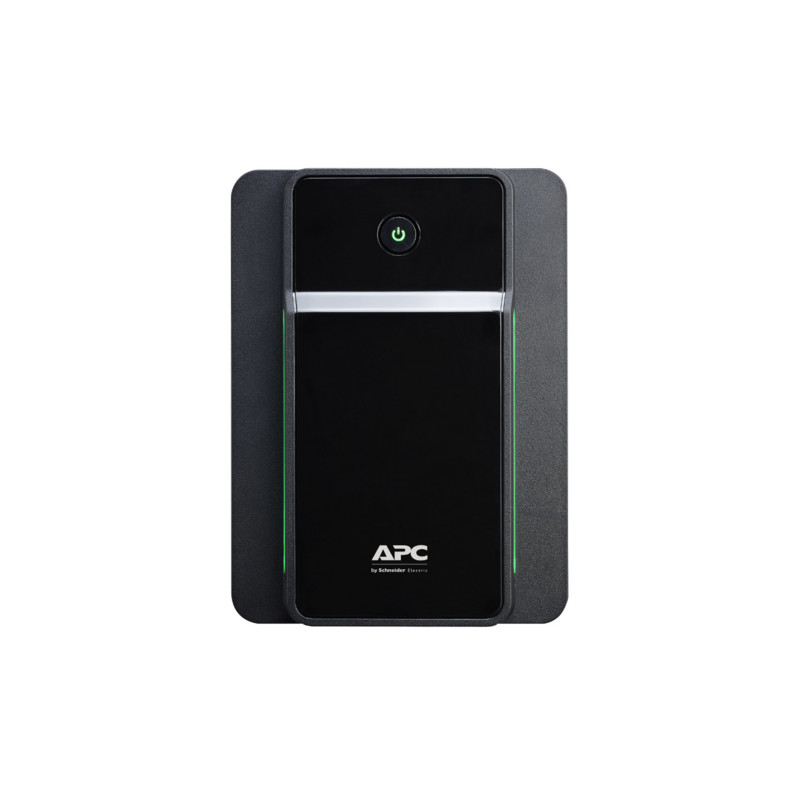

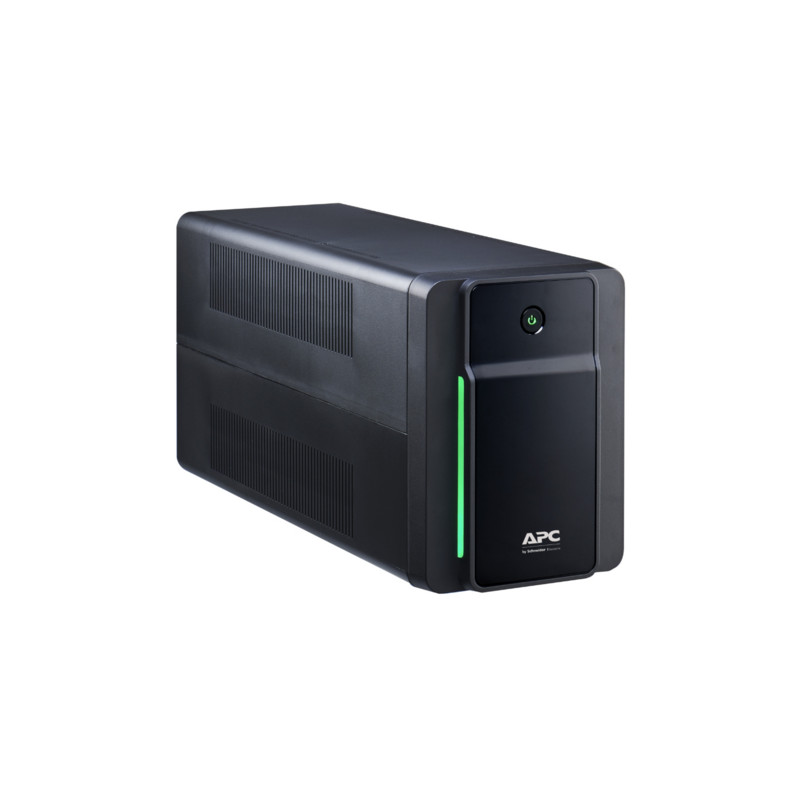

This APC Back-UPS offers power and surge protection for wireless networks, computers, gaming consoles and other electronics in your home or business. The 2200VA tower UPS has 4 total outlets, all of which provide battery back up and surge protection. It has a surge energy rating of 273 Joules. It features Automatic Voltage Regulation to correct voltage dips and surges to proper levels.
Specifications:
Main:
Run time for load - 2min 15s
Main Input Voltage - 230 V
Rated power in W - 1200 W
Rated power in VA - 2200 VA
output connection type - 4 Schuko
Cable length - 1.22 m
Number of cables - 1
Battery type - Lead-acid battery
Batteries & Runtime:
Number of battery filled slots - 0
Number of battery free slots - 0
Battery recharge time - 0
Battery voltage - 24 V
Battery capacity - 9.0 Ah
Battery power in VAH - 190 VAh runtime / 216 VAh capacity
Maximum configurable power in W - 1200 W
Battery life - 3…5 year(s)
Replacement battery - APCRBC177
Battery graph comments - Curve fit to measured runtime data. All measurements taken with new, fully charged batteries, at typical environmental conditions, with no electrical input and balanced resistive load (PF = 1.0) output.
Max runtime - 240 min
Physical:
Colour - Black
Height - 19 cm
Width - 14 cm
Depth - 39 cm
Net weight - 12.3 kg
Mounting preference - No preference
Mounting mode - Not rack-mountable
USB compatible - No
Input:
Network frequency - 50/60 Hz +/- 5 Hz auto-sensing
Input voltage limits - 140...300 V
Input Power Factor at Full Load - 0.54
Output:
Maximum configurable power in W - 1200 W
Output frequency - 50/60 Hz +/- 1 Hz sync to mains
UPS type - Line interactive
Wave type - Stepped approximation to a sinewave
Full load runtime - 00:01:00 1200 W
Half load runtime - 00:08:30 600 W
Maximum configurable power in VA - 2200 VA
Transfer time - 6 ms typical : 10 ms maximum
Environmental:
Ambient air temperature for operation - 0…40 °C
Relative humidity - 0…95 % non-condensing
Operating altitude - 0...3000 m
Ambient air temperature for storage - -15…40 °C
Storage Relative Humidity - 0…95 % non-condensing
Storage altitude - 0…3000 m
Acoustic leve - 40 dBA
IP degree of protection - IP20
