Prikaži uvećano
APC

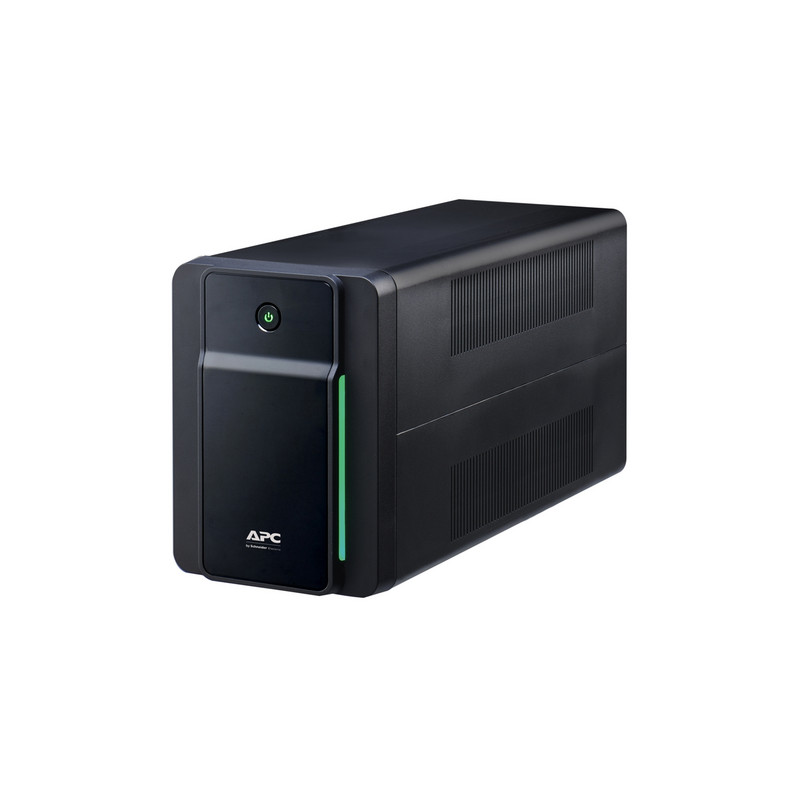

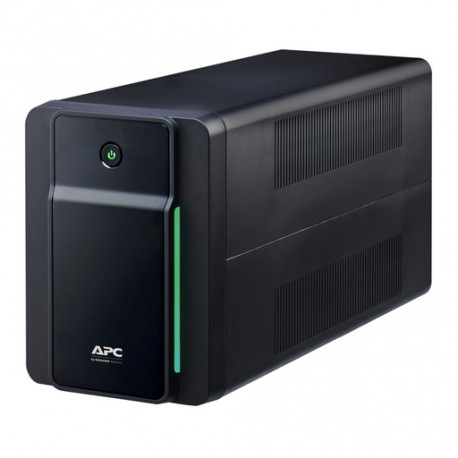

APC Back-UPS 1600VA, 230V, AVR, IEC Sockets
- Jamstvo: 2 god.
Vaša prava iz zakonskog jamstva
- Odstrani ovaj proizvod iz najdražih proizvoda
- Dodaj ovaj proizvod u najdraže proizvode
- Ispis
Specifikacije
- Width
- 14.00 cm
- Height
- 19.00 cm
- Depth
- 39.00 cm
- Battery Recharge Time
- 8 h
- Battery capacity
- 7.0 Ah
- Cable Length
- 1.2 m
- Battery Life
- 3...5 year(s)
- Battery type
- Lead-acid battery
- Type of execution
- Tower
- Main Input Voltage
- 230 V
- Main Output Voltage
- 230 V
- Rated power in W
- 900 W
- Rated power in VA
- 1600 VA
- Product or component type
- Uninterruptible power supply (UPS)
- Input Connection Type
- IEC 60320 C13

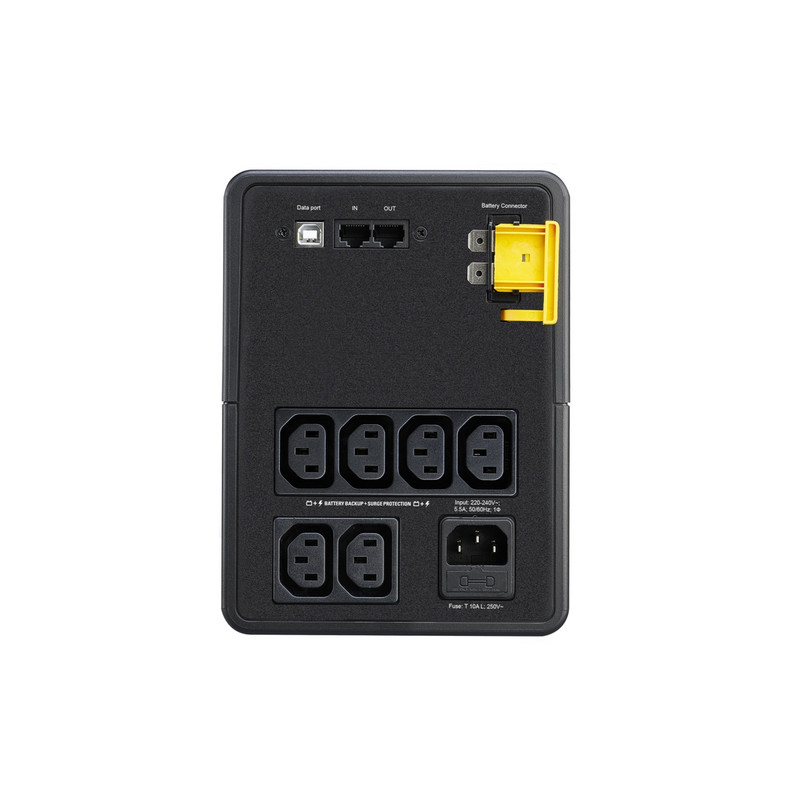

- Output Connection Type
- 6 IEC 60320 C13
- Number of cables
- 1
- Provided equipment
- User manual
- Battery voltage
- 24 V
- Redundant
- No
- net. Weight
- 10.30 kg
- Mounting preference
- No preference
- Mounting mode
- Not rack-mountable
- USB compatible
- No
- Network frequency
- 50/60 Hz +/- 5 Hz auto-sensing
- Input voltage limits
- 140...300 V
- Maximum configurable power in VA
- 1600 VA
- Maximum configurable power in W
- 900 W
- Output frequency
- 50/60 Hz +/- 1 Hz sync to mains
- UPS type
- Line-Interactive
- Wave type
- Stepped approximation to a sinewave
- Transfer time
- 6 ms typical : 10 ms maximum
- Product certifications
- CE, CB, EAC
- Standards
- EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018
- Ambient air temperature for operation
- 0..40 °C
- Relative humidity
- 0…95 %
- Operating altitude
- 0...3000 m
- Ambient air temperature for storage
- -15…40 °C
- Storage Relative Humidity
- 0…95 %
- Storage altitude
- 0…3000 m
- Acoustic level
- 40 dBA
- Surge energy rate
- 273 J
- Сontrol panel
- LED Status display with on line : on battery
- Fiscalization 2.0 Article
- G46.50.22
Opis
Main Input voltage
230 B
Rated power [W]
900 W
Rated power
1600 VA
Input Connection Type
IEC 60320 C13
output connection type
6 IEC 60320 C13
Length
1,22 m
Number of cables
1
Battery Type
Lead-acid battery
Pre-installed batteries
0
Free battery compartments
0
Typical recharge time
8 h
Battery voltage
24 V
Battery capacity
7,0 Ah
battery life
3…5 year(s)
Comments on the battery schedule
The curve corresponds to the results of measurements of battery life. All measurements were carried out with new, fully charged batteries, in typical climatic conditions, without input voltage and with a resistive load at the output.
The possibility of increasing the autonomy time
is 0
The equipment is included
User Manual
The maximum value of the autonomy time
240 min
The number of unoccupied power modules
is 0
The number of slots occupied by power modules
is 0
reserve
No
Colour
Black
Height
19 cm
Width
14 cm
Depth
39 cm
Net weight
10.3 kg
Type of fastener
No preference
Installation execution
Non - stable
two-support mount 0
USB-compatible
No
Network frequency
50/60 Hz +/- 5 Hz auto detection
The limits of the input voltage
are 140...300 V
Vx.power factor at full load
0.56
Maximum set power (W)
900 W
Output frequency
50/60 Hz +/- 1 Hz synchronized with the power grid
Type of UPS
Linearly interactive
Type of voltage form
Stepwise approximation of a sine wave
Autonomy time at full load
00:01:00 900 Watts
Autonomy time at half load
00:06:30 450 Watts
Maximum set power (VA)
1600 VA
Switching time
The typical time is 6 ms, the maximum is 10 ms.
Certificates
CE
CB
EAC
Standards
EN/IEC 62040-1:2019/A11:2021
EN/IEC 62040-2:2006/AC:2006
EN/IEC 62040-2:2018
Ambient operating temperature
0…40 °C
Relative humidity
0...95% without condensation
Altitude above sea level
0...3000 m
Ambient temperature during storage
-15…40 °C
Relative humidity of storage
0...95% without condensation
Storage height
0...3000 m
Acoustic level
40 dBA
Degree of protection IP
IP20
Alarm function
LED display with on-line indicators (mains operation)
Rating according to the level of absorbed energy
273 J
230 B
Rated power [W]
900 W
Rated power
1600 VA
Input Connection Type
IEC 60320 C13
output connection type
6 IEC 60320 C13
Length
1,22 m
Number of cables
1
Battery Type
Lead-acid battery
Pre-installed batteries
0
Free battery compartments
0
Typical recharge time
8 h
Battery voltage
24 V
Battery capacity
7,0 Ah
battery life
3…5 year(s)
Comments on the battery schedule
The curve corresponds to the results of measurements of battery life. All measurements were carried out with new, fully charged batteries, in typical climatic conditions, without input voltage and with a resistive load at the output.
The possibility of increasing the autonomy time
is 0
The equipment is included
User Manual
The maximum value of the autonomy time
240 min
The number of unoccupied power modules
is 0
The number of slots occupied by power modules
is 0
reserve
No
Colour
Black
Height
19 cm
Width
14 cm
Depth
39 cm
Net weight
10.3 kg
Type of fastener
No preference
Installation execution
Non - stable
two-support mount 0
USB-compatible
No
Network frequency
50/60 Hz +/- 5 Hz auto detection
The limits of the input voltage
are 140...300 V
Vx.power factor at full load
0.56
Maximum set power (W)
900 W
Output frequency
50/60 Hz +/- 1 Hz synchronized with the power grid
Type of UPS
Linearly interactive
Type of voltage form
Stepwise approximation of a sine wave
Autonomy time at full load
00:01:00 900 Watts
Autonomy time at half load
00:06:30 450 Watts
Maximum set power (VA)
1600 VA
Switching time
The typical time is 6 ms, the maximum is 10 ms.
Certificates
CE
CB
EAC
Standards
EN/IEC 62040-1:2019/A11:2021
EN/IEC 62040-2:2006/AC:2006
EN/IEC 62040-2:2018
Ambient operating temperature
0…40 °C
Relative humidity
0...95% without condensation
Altitude above sea level
0...3000 m
Ambient temperature during storage
-15…40 °C
Relative humidity of storage
0...95% without condensation
Storage height
0...3000 m
Acoustic level
40 dBA
Degree of protection IP
IP20
Alarm function
LED display with on-line indicators (mains operation)
Rating according to the level of absorbed energy
273 J
