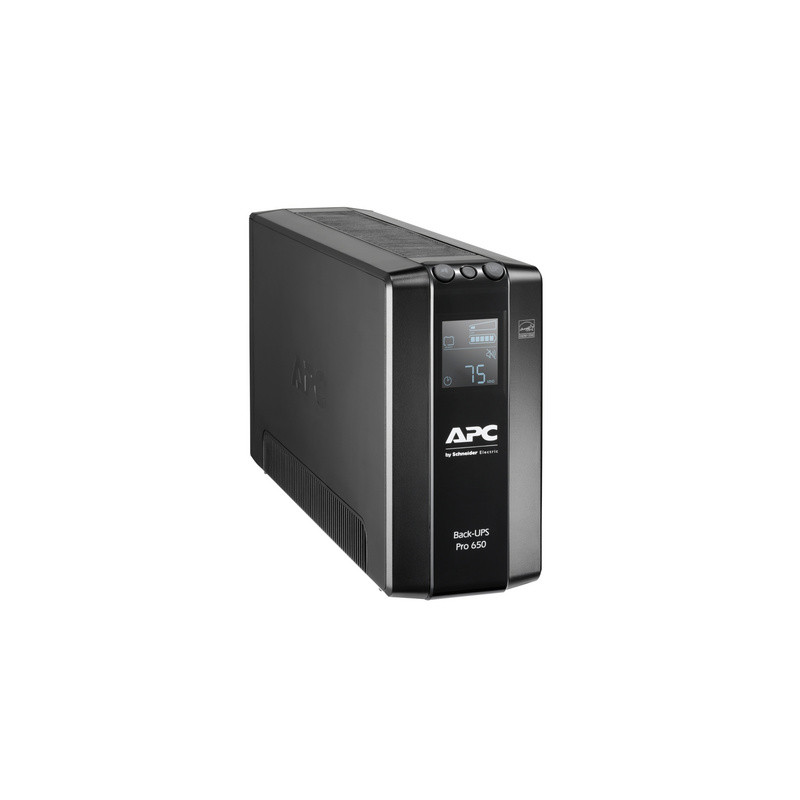

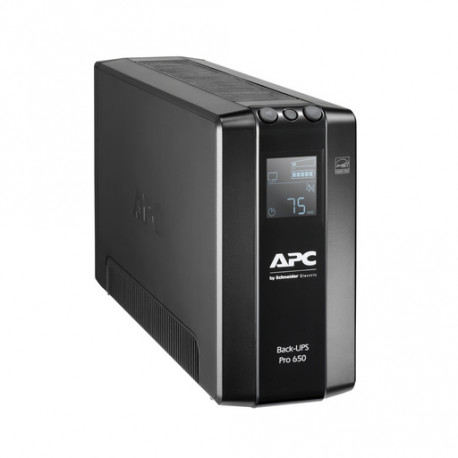

Back UPS Pro BR 650VA, 6 Outlets, AVR, LCD Interface

Specifikacije

Width

9.10 cm

Height

19.00 cm

Depth

31.00 cm

Battery Recharge Time

12 h

Battery capacity

7.0 Ah

Battery Life

3...5 year(s)

Battery type

Lead-acid battery

Main Input Voltage

230 V

Main Output Voltage

230 V

Rated power in W

390 W

Rated power in VA

650 VA

Product or component type

Uninterruptible power supply (UPS)

Input Connection Type

IEC 60320 C13

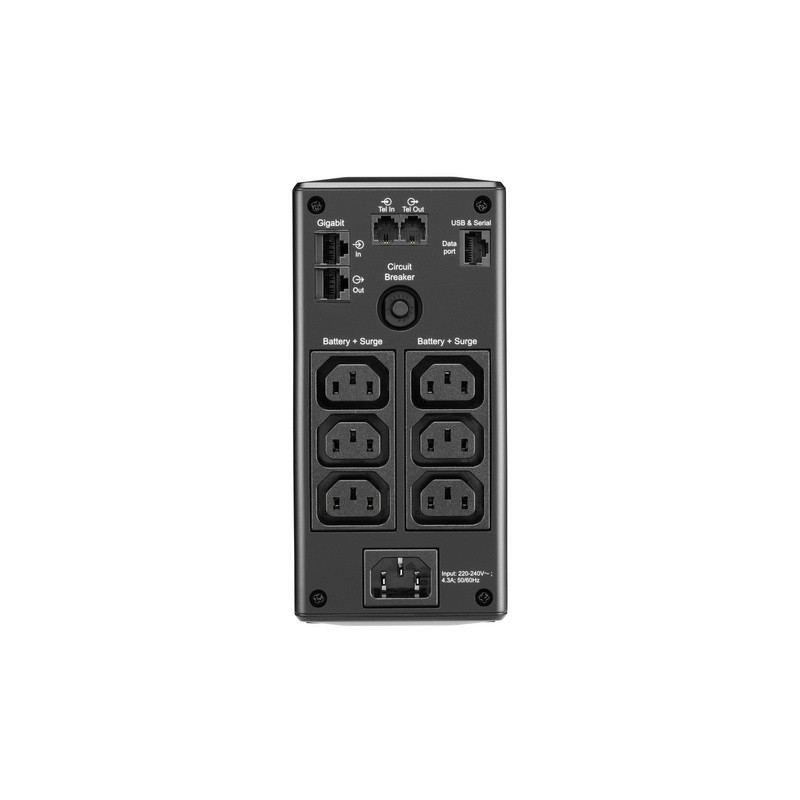

Output Connection Type

6 IEC 60320 C13

Provided equipment

User manual

Battery voltage

12 V

Redundant

No

net. Weight

6.40 kg

Mounting preference

No preference

Mounting mode

Rack-mountable

USB compatible

No

Network frequency

50/60 Hz +/- 3 Hz auto-sensing

Input voltage limits

176...294 V

Maximum configurable power in VA

650 VA

Maximum configurable power in W

390 W

Output frequency

50/60 Hz +/- 1 Hz sync to mains

UPS type

Line-Interactive

Wave type

Stepped approximation to a sinewave

Transfer time

10 ms typical : 12 ms maximum

Product certifications

A-Tick, C-Tick, CE, EAC, RCM, TISI

Standards

EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018

Ambient air temperature for operation

0..40 °C

Relative humidity

0…95 %

Operating altitude

0...10000 ft

Ambient air temperature for storage

-15…45 °C

Storage Relative Humidity

0…95 %

Storage altitude

0.0000000000…15240.0000000000 m

Acoustic level

45 dBA

Alarm

Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Battery charger power

6 W rated

Number of battery replacement quantity

1

Replacement battery

APCRBC110

Colour

Black

Сontrol panel

Multifunction LCD status and control console

Noise suppression

Full time multi-pole noise filtering : 10% of IEEE surge let-through : zero clamping response time: instantaneous

Switching current capacity

10 A

Max. input current

10 A
