> >>>APC Back-UPS 750VA, 230V, AVR

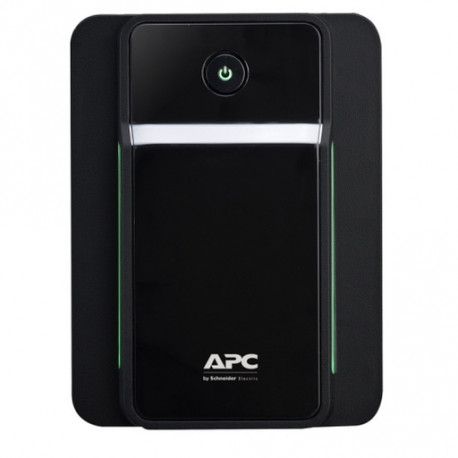

APC Back-UPS 750VA, 230V, AVR Prikaži uvećano
Prije Dalje

APC Back-UPS 750VA, 230V, AVR

BX750MI

Novi proizvod

3 - 5 radnih dana

2 god.

Količina: 12 raspoloživa (kod dobavljača)

Cijena za gotovinu (uplatu na račun):

88,69 € s PDV-om

Cijena za kartice:

97,56 € s PDV-om

Okvirna cijena po ratama:
12 * 8,13 € s PDV-om
6 * 16,26 € s PDV-om
3 * 32,52 € s PDV-om

Dodaj u listu želja

  • Diners Club International
  • Discover
  • Dinacard
  • WSPay
  • Google Pay

Podaci

Width 12.00 cm
Height 16.00 cm
Depth 35.50 cm
Battery Recharge Time 8 h
Battery capacity 7.0 Ah
Cable Length 1.2 m
Battery Life 3...5 year(s)
Battery type Lead-acid battery
Type of execution Tower
Main Input Voltage 230 V
Main Output Voltage 230 V
Rated power in W 410 W
Rated power in VA 750 VA
Product or component type Uninterruptible power supply (UPS)
Input Connection Type IEC 60320 C13
Output Connection Type 4 IEC 60320 C13
Number of cables 1
Battery voltage 12 V
Redundant No
net. Weight 5.40 kg
Mounting preference No preference
Mounting mode Not rack-mountable
USB compatible No
Network frequency 50/60 Hz +/- 5 Hz auto-sensing
Input voltage limits 140...300 V
Maximum configurable power in VA 750 VA
Maximum configurable power in W 410 W
Output frequency 50/60 Hz +/- 1 Hz sync to mains
UPS type Line-Interactive
Wave type Stepped approximation to a sinewave
Transfer time 6 ms typical : 10 ms maximum
Product certifications CE, CB, EAC
Standards EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018
Ambient air temperature for operation 0..40 °C
Relative humidity 0…95 %
Operating altitude 0...3000 m
Ambient air temperature for storage -15…40 °C
Storage Relative Humidity 0…95 %
Storage altitude 0…3000 m
Acoustic level 40 dBA
Surge energy rate 273 J
Сontrol panel LED Status display with on line : on battery

Više informacija

Main features
- Working time with 410W load: 0m 43s
- Output power: 410 Watts / 750 VA
- Rated output voltage: 230V
- Rated input voltage: 230V
- Input connection type: 4 IEC 60320 C13
- Length of the cord: 1.2 meters

Exit
- Maximum set power(W): 410 Watts / 750VA
- Output frequency (synchronized with the power grid): 50/60 Hz +/- 1 Hz Synchronized with the power grid
- Topology: Linearly interactive
- Type of voltage form: Stepwise approximation of a sine wave
- Switching time: 6 ms typical : 10 ms maximum

Entrance
- Input frequency: 50/60Hz +/- 5 Hz Auto Detection
- Input voltage range during mains operation: 140–300V
- Number of power cables: 1
- Input power factor at full load: 0.63

Batteries and battery life
- Battery Type: Lead acid battery
- Typical recharge time: 8 hours
- Rated battery voltage: 12 V
- Replaceable battery: RBC17
- Expected battery life (years): 3 - 5

Communication and administrative tools
- Control panel: LED display with indicators on line (mains operation) : on battery (battery operation)
- Beep: Signal to switch to battery operation mode : a special signal of battery exhaustion

Surge protection and noise filtering
- Burst energy rating: 273joules
- Data Line Protection: Ethernet 10/100/1000 Base-T RJ45 protection

Physical parameters
- Maximum height: 160MM, 16.0cm
- Maximum width: 120MM, 12.0cm
- Maximum depth: 355MM, 35.5cm
- Net weight: 5.4KG
- Gross weight: 5.9KG
- Dimensions of the transport package: 250x197x430MM
- Color: Black

Environmental Parameters
- Operating temperature: 0 - 40 °C
- Operating range of relative humidity: 0 - 95 (Non-condensing)%
- Operating range of altitude above sea level: 0 - 3000 meters
- Storage temperature: -15 - 40 °C
- Relative humidity of storage: 0 - 95 (Non-condensing) %
- Storage height above sea level: 0 - 3000 meters
- Acoustic noise level at a distance of 1 m from the surface of the device: 40.0dB(A)
- Protection class: IP20

Accordance
- Compliance with the requirements of: CB, CE, EAC, EN/IEC 62040-1, EN/IEC 62040-2
