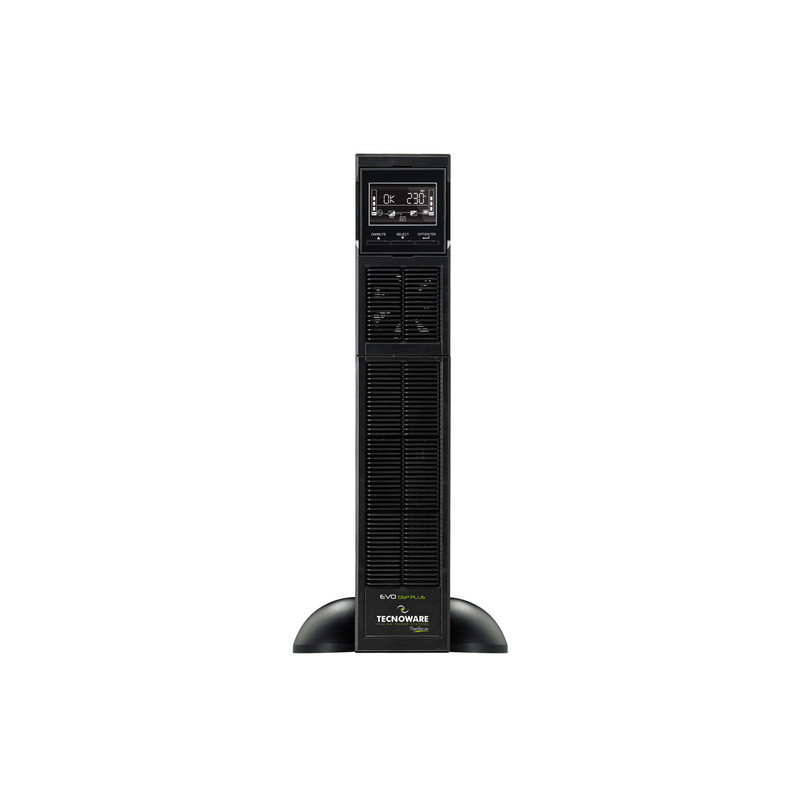

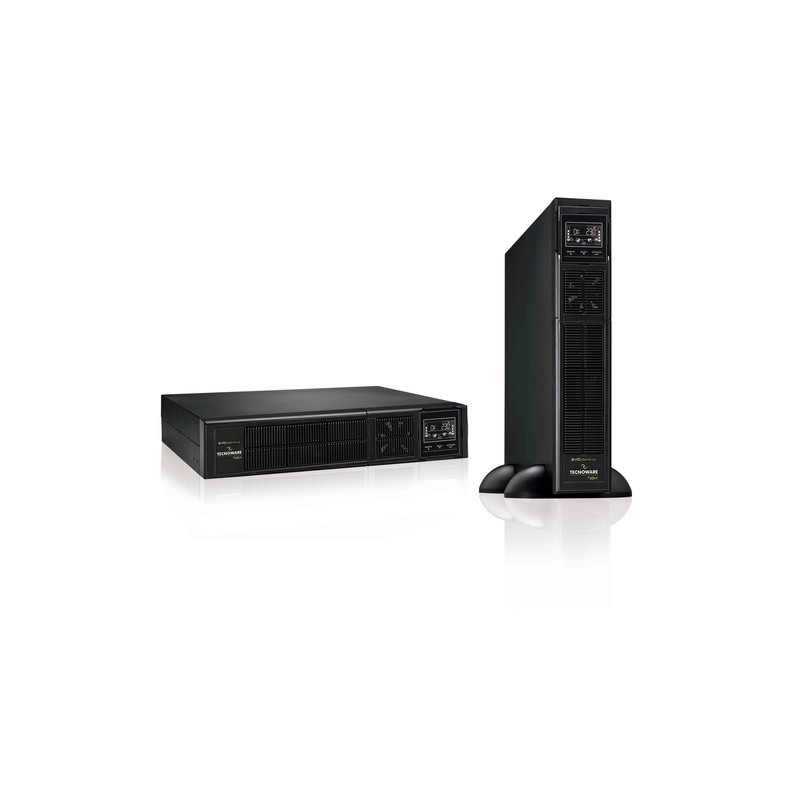

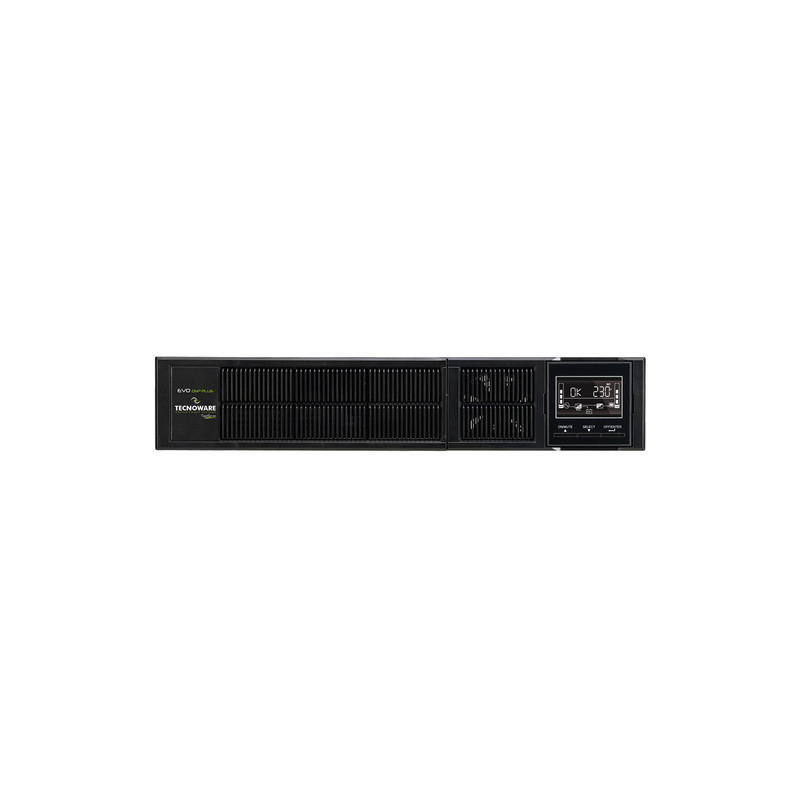

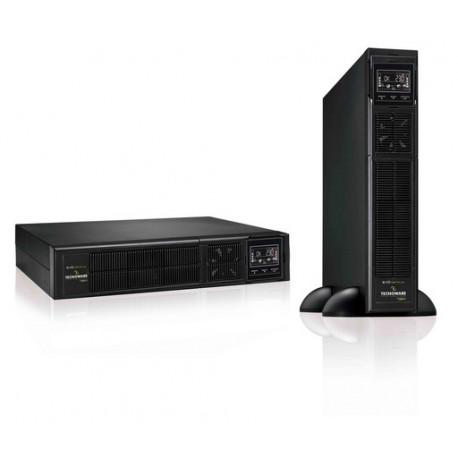

UPS 1200VA/1080W On-Line Double Conversion Rack/Tower, Sinewave, 8xC13
FGCEDP1202RTIEC
Novi proizvod
3 - 5 radnih dana
2 god.
Količina: 9 raspoloživa (kod dobavljača)
- Odstrani ovaj proizvod iz najdražih proizvoda
- Dodaj ovaj proizvod u najdraže proizvode
- Ispis
Podaci
| Battery type | Lead-acid battery |
| Type of execution | Rackmount / Tower |
| Main Input Voltage | 230 V |
| Main Output Voltage | 230 V |
| Rated power in W | 1080 W |
| Rated power in VA | 1200 VA |
| Product or component type | Uninterruptible power supply (UPS) |
| Input Connection Type | IEC 60320 C13 |

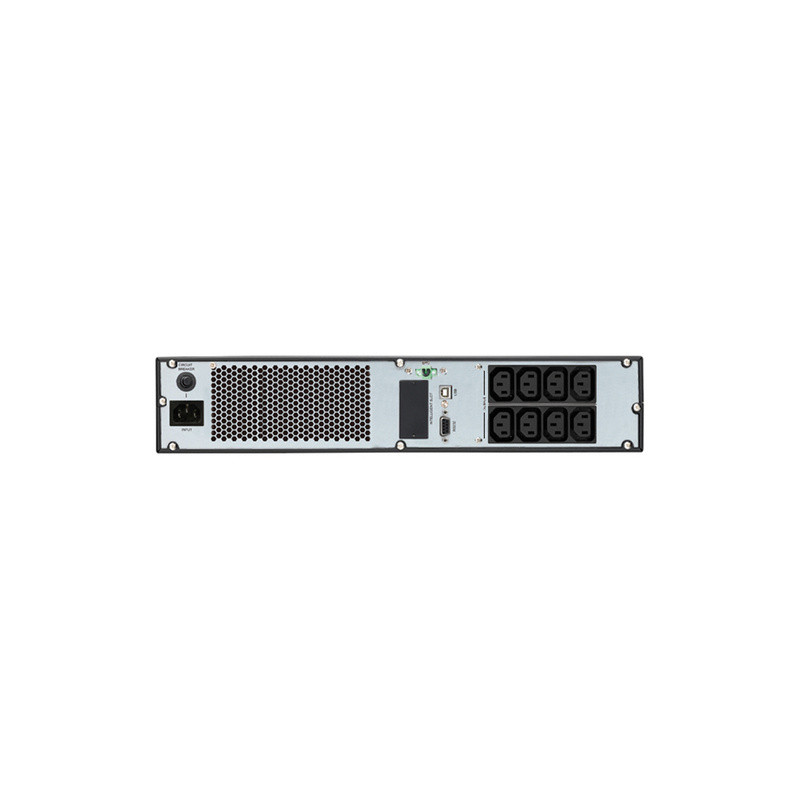

| Output Connection Type | 8 IEC 320 C13 |
| Provided equipment | User manual |
| Network frequency | 50/60 Hz |
| Input voltage limits | 110...300 V |
| Maximum configurable power in VA | 1200 VA |
| Maximum configurable power in W | 1080 W |
| Output frequency | 50/60 Hz (selectable) |
| UPS type | On-line |
| Wave type | Sine wave |
| Transfer time | 0 ms |
| Relative humidity | 0…95 % |
| Operating altitude | 0...3000 m |
| Storage Relative Humidity | 0…95 % |
| Storage altitude | 0…3000 m |
| Acoustic level | 45 dBA |

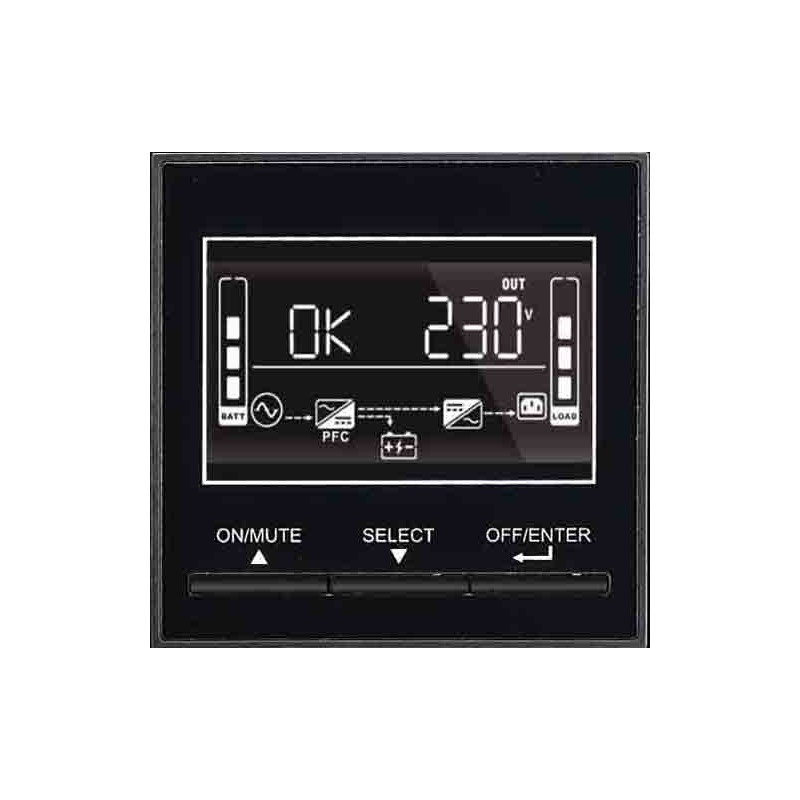

| Сontrol panel | Multifunction graphic LCD display |
| Fiscalization 2.0 Article | G46.50.22 |
Više informacija
Rated power
1.200 VA
Active power
1,080 Watts

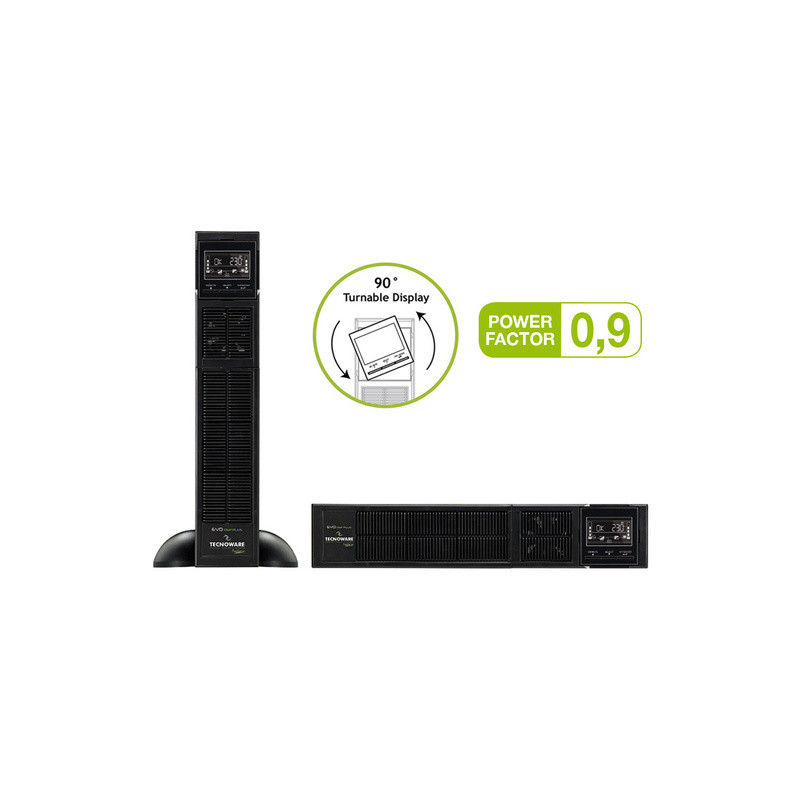

The power factor
0,9
Technologies
Online Transformer-free Converter with Double Conversion (VFI-SS-111)
Cooling
Fan cooling
Audible noise
< 45 dBA at a distance of 1 m
Positioning
Placement in an upright position or in a 19-inch rack (2U)
Dimensions (UPS) WxHxD
43.8 x 8.8 x 31 cm
Dimensions (with packaging) WxHxD
50x18x40 cm
White
12 kg
Number of phases
1F+N
Rated voltage
208 VAC/220 VAC/230 vac/240 vac
Input voltage range
110-300 V AC
Rated frequency
50/60 Hz (optional)
Input frequency range (On-Line mode)
+/- 7%
Input power factor
0,99
Number of phases
1F+N
Rated voltage
208 VAC/220 VAC/230 VAC/240 VAC (optional)
Static voltage regulation at 100% linear load (online mode and battery)
±1%
THD voltage at rated linear load
<2% (linear load), <8% (non-linear load)
The Cross factor
3:1
Frequency
50/60 Hz (optional)
Free rotation speed
±0.2 Hz
The signal form of the inverter
The sine wave
The possibility of overload
110 % audible warning only, 110-130% for 30 seconds, >130% for 100 ms
Efficiency
of 94%, calculated in double conversion mode up to 100% load according to standard 62040-3.
Transfer time
0 ms (online)
Lead-acid type, sealed, maintenance-free
Backup time (typical)
10-30 min.
Extended autonomy
No
Operating temperature
From 0 to 55 °C (recommended from 20 to 25 °C)
Humidity
< 95% non-condensing
Maximum height
3000 m
IP protection
IP20
1.200 VA
Active power
1,080 Watts
The power factor
0,9
Technologies
Online Transformer-free Converter with Double Conversion (VFI-SS-111)
Cooling
Fan cooling
Audible noise
< 45 dBA at a distance of 1 m
Positioning
Placement in an upright position or in a 19-inch rack (2U)
Dimensions (UPS) WxHxD
43.8 x 8.8 x 31 cm
Dimensions (with packaging) WxHxD
50x18x40 cm
White
12 kg
Number of phases
1F+N
Rated voltage
208 VAC/220 VAC/230 vac/240 vac
Input voltage range
110-300 V AC
Rated frequency
50/60 Hz (optional)
Input frequency range (On-Line mode)
+/- 7%
Input power factor
0,99
Number of phases
1F+N
Rated voltage
208 VAC/220 VAC/230 VAC/240 VAC (optional)
Static voltage regulation at 100% linear load (online mode and battery)
±1%
THD voltage at rated linear load
<2% (linear load), <8% (non-linear load)
The Cross factor
3:1
Frequency
50/60 Hz (optional)
Free rotation speed
±0.2 Hz
The signal form of the inverter
The sine wave
The possibility of overload
110 % audible warning only, 110-130% for 30 seconds, >130% for 100 ms
Efficiency
of 94%, calculated in double conversion mode up to 100% load according to standard 62040-3.
Transfer time
0 ms (online)
Lead-acid type, sealed, maintenance-free
Backup time (typical)
10-30 min.
Extended autonomy
No
Operating temperature
From 0 to 55 °C (recommended from 20 to 25 °C)
Humidity
< 95% non-condensing
Maximum height
3000 m
IP protection
IP20
