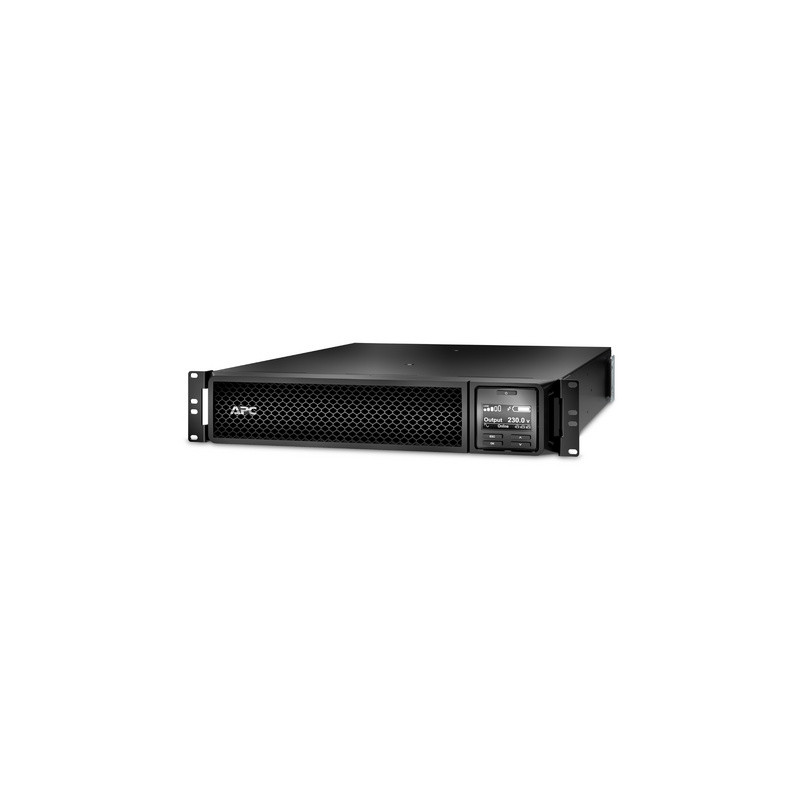

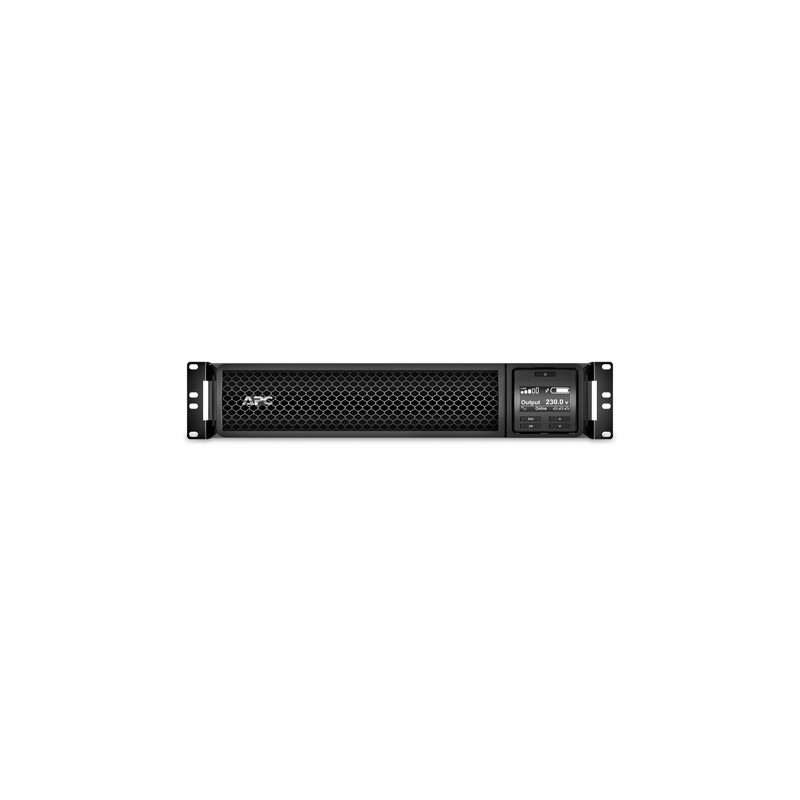

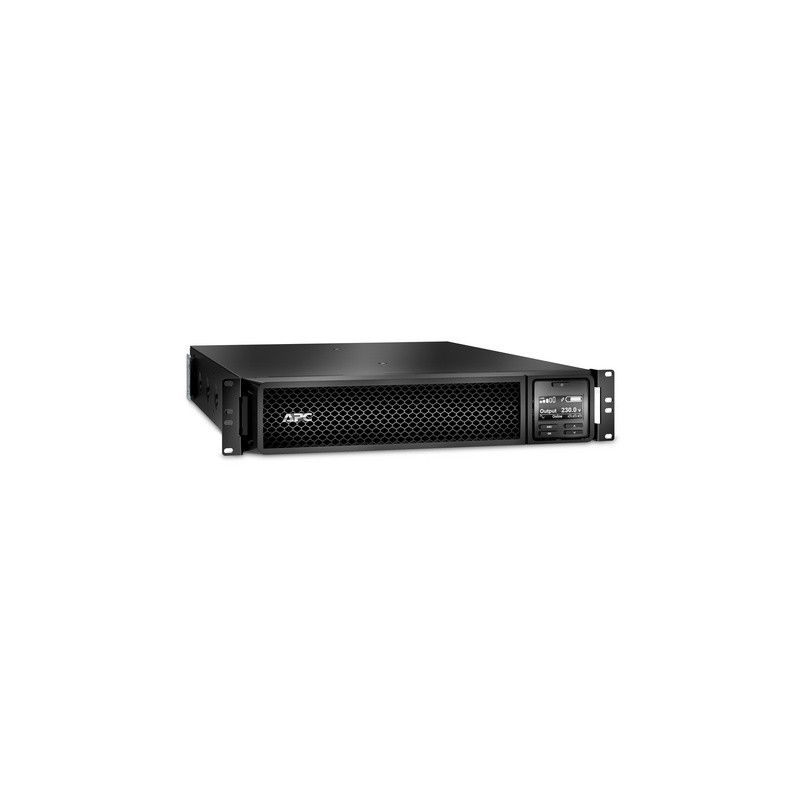

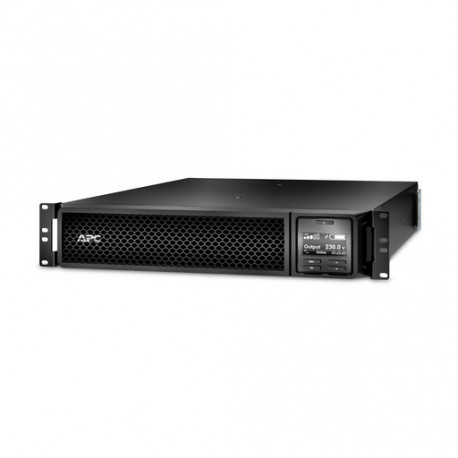

APC Smart-UPS RT 2200VA RM 230V

Main Features:
- The main input voltage is 230 B
- Other Input voltage - 220 B; 240 B
- The main output voltage is 230 V
- Other Output voltage - 220 V; 240 V
- Rated power [W] - 1980 W
- Rated power 2200 VA
- Input Connection Type - BS1363A British; IEC 60320 C20
Schuko CEE 7 / EU1-16P

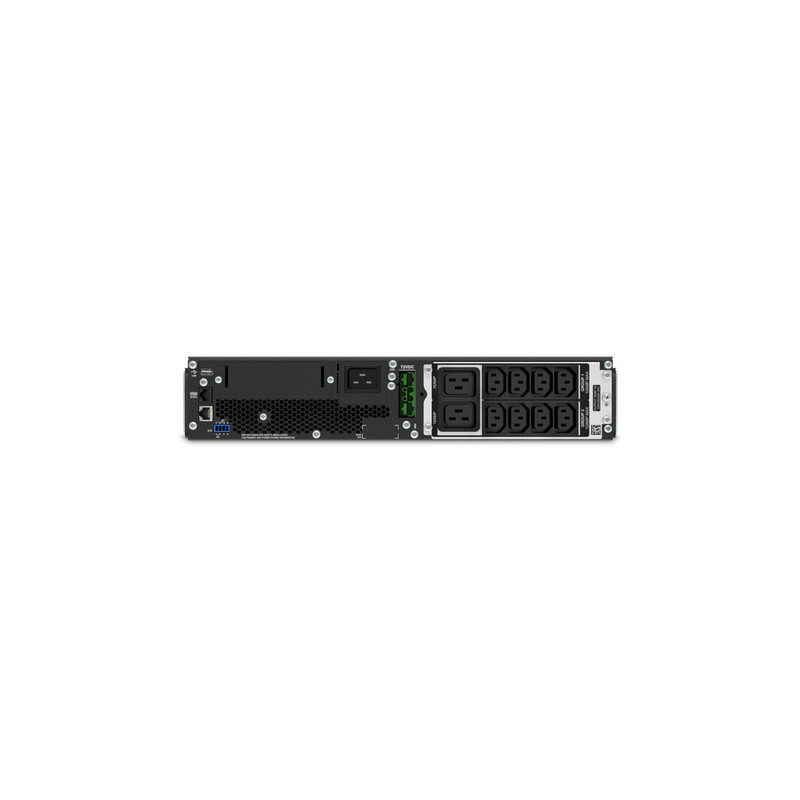

- Output connection type - 8 IEC 60320 C13; 2 IEC Jumpers; 2 IEC 60320 C19
- Number of Unit - 2U
- Length - 2.44 m
- Number of cables - 1
- Battery Type - Lead acid battery

Common:
- Web High density product subcategory
- The number of power modules is 1400
- The number of slots unoccupied by power modules is 0
- Number of slots occupied by power modules - 0
- Spare - No

Physical parameters:
- The Color is Black
- Height 8.5 cm
- Width 43.2 cm
- Depth 58.4 cm
- Net weight 25 kg
- Installation location Front
- The type of fastener is Lower
- Rack mounting design
- Double-support mount 0
- USB-compatible Yes
- The mounting position is horizontal

Entrance:
- Network frequency - 40-70 Hz auto detection
- The limits of the input voltage are 100...275 V adjustable (for half load)

Output:
- Maximum set power (W) - 1980 W
- Harmonic distortion - Less than 2%
- Output frequency - 50/60 Hz +/- 3 Hz synchronized with the power grid
- Cross factor - 3:1
- UPS type - Dual conversion topology
- Type of voltage form - Sinusoidal signal
- Bypass type - Built-in bypass
- Maximum set power (VA) - 2200 VA

Accordance:
- CE; EAC; RCM; VDE certificates
- Marking CE Mark
- Standards EN/IEC 62040-1:2019/A11:2021; EN/IEC 62040-2:2006/AC:2006; EN/IEC 62040-2:2018

Environmental parameters:
- Ambient operating temperature - 0...40 °C
- Relative humidity - 0...95% without condensation
- Altitude above sea level - 0...10000 ft
- Ambient temperature during storage -20...50 °C
- Relative humidity of storage - 0...95% without condensation
- Storage height - 0.00...15240.00 m
- Acoustic level - 55 dBA
- Heat dissipation - 535
% - Degree of protection IP - IP20

Batteries and battery life:
- Pre-installed batteries - 1
- Free battery compartments - 0
- Typical recharge time is 3 h
- Number of RBC™ cartridges - 1
- Battery voltage - 72 V
- Charger power (W) - 122 W rated
- Battery capacity in volt-ampere hours - 367 Vach working time
- Battery life 3...5 year(s)
- APCRBC141 spare battery

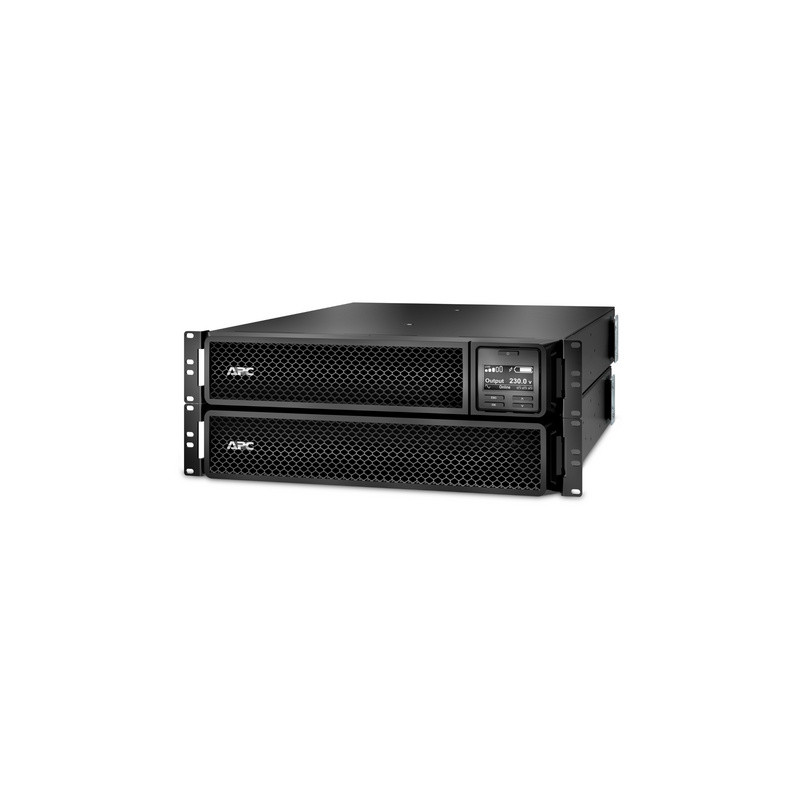

- Battery options SRT72RMBP 1 1101 VACH; SRT72RMBP 2 1835 VACH; SRT72RMBP 3 2569 VACH; SRT72RMBP 4 3303 VACH; SRT72RMBP 5 4037 VACH; SRT72RMBP 6 4771 VACH; SRT72RMBP 8 6239 VACH; SRT72RMBP 10 7707 VACH
- The possibility of increasing the time of autonomy - 1

Communication tools and admin tools:
- Free slots - 1
- Alarm - Audible and visible alarms : prioritized by severity
- Emergency Power Off (EPO) - Yes

Protection against voltage surges and filtrations:
- Rating according to the level of absorbed energy vsp - 340 J
