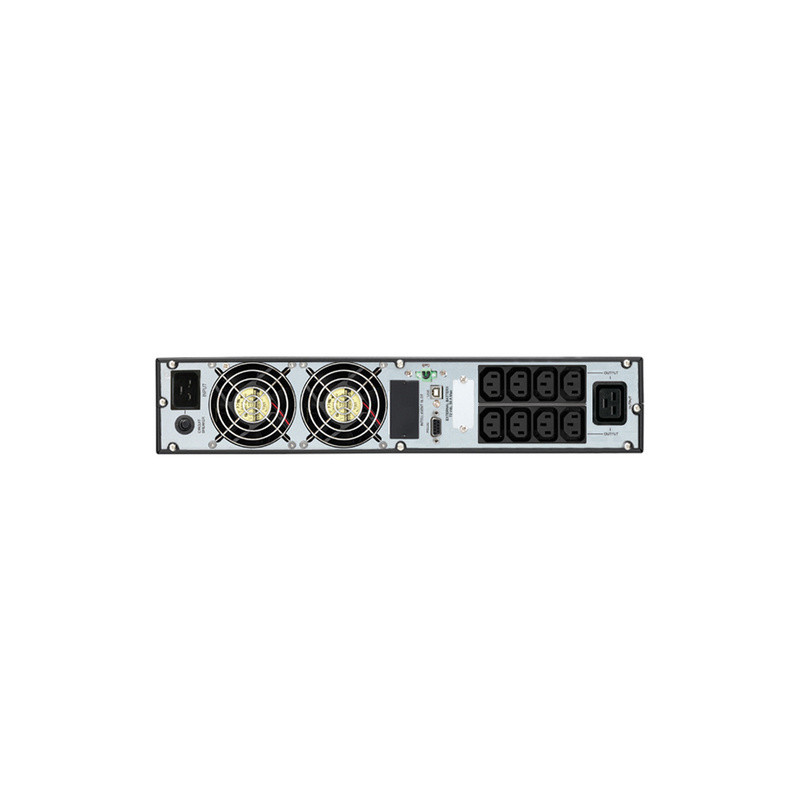

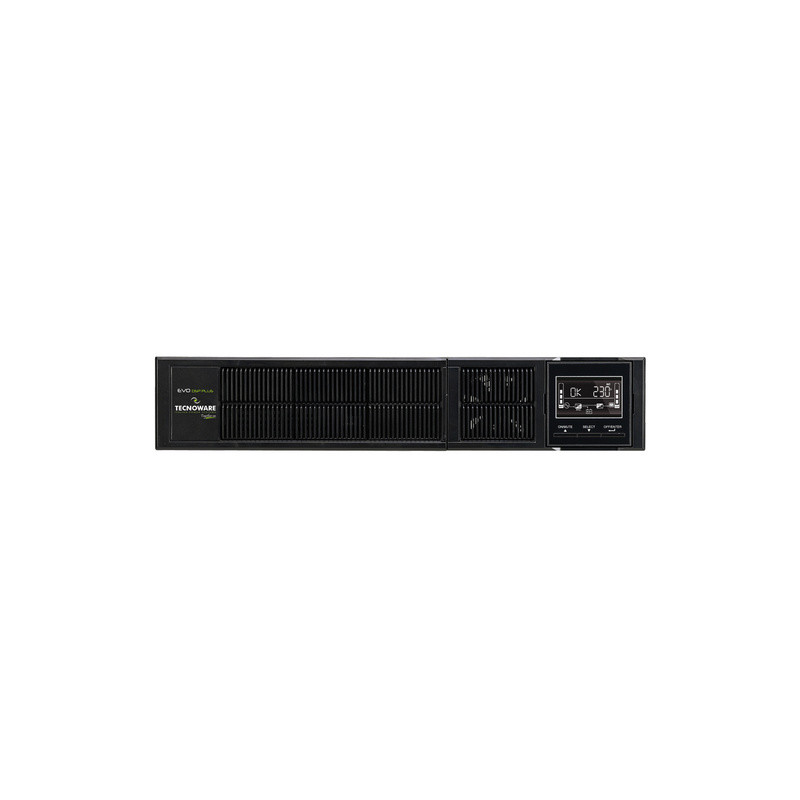

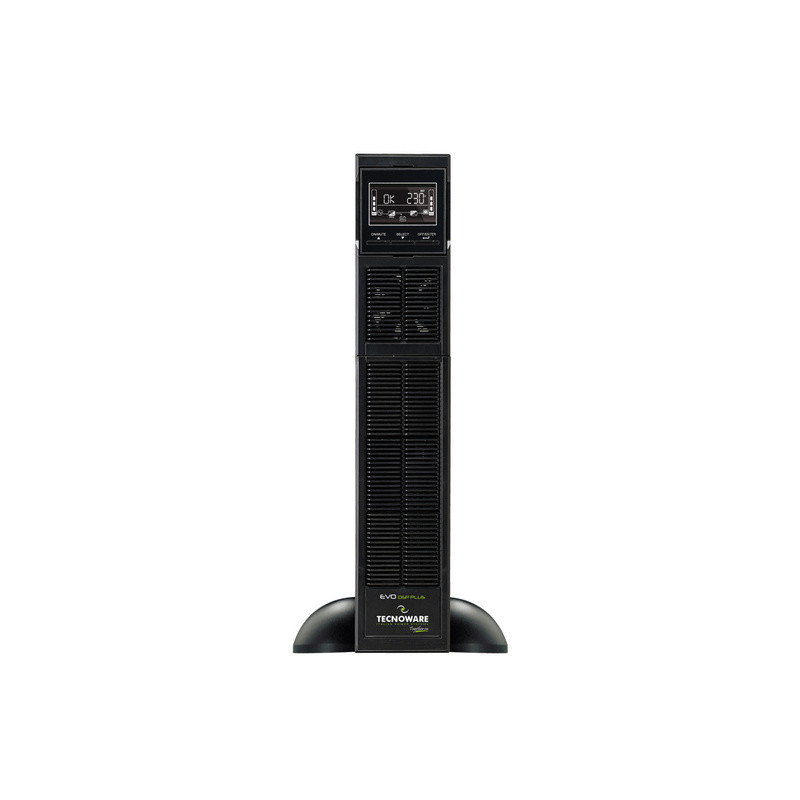

UPS 3.6kVA/3.24kW On-Line Double Conversion, Rack/Tower, Sinewave, 8xC13 +1xC19
FGCEDP3602RTIEC
Novi proizvod
3 - 5 radnih dana
2 god.
Količina: 1 raspoloživ (kod dobavljača)
- Odstrani ovaj proizvod iz najdražih proizvoda
- Dodaj ovaj proizvod u najdraže proizvode
- Ispis
Podaci
| Width | 43.80 cm |
| Height | 8.80 cm |
| Depth | 63.00 cm |
| Efficiency | 94%, calculated in double conversion modeto 100% load according to standard 62040-3 |
| Battery type | Lead acid, sealed, maintenance free |
| Type of execution | Rackmount / Tower |
| Main Input Voltage | 230 V |
| Main Output Voltage | 230 V |
| Rated power in W | 3.24 kW |
| Rated power in VA | 3.6 kVA |
| Product or component type | Uninterruptible power supply (UPS) |
| Input Connection Type | IEC 320 C14 |
| Output Connection Type | 8 IEC 320 C13, 1 IEC 320 C19 |
| net. Weight | 29,00 kg |
| Network frequency | 50/60 Hz (selectable) |
| Input voltage limits | 110...300 V |
| Maximum configurable power in VA | 3600 VA |
| Maximum configurable power in W | 3240 W |
| Output frequency | 50/60 Hz (selectable) |
| UPS type | Double conversion online |
| Wave type | Sine wave |
| Transfer time | 0 ms |
| Product certifications | CE |
| Ambient air temperature for operation | From 0 to 55 °C (recommended from 20 to 25 °C, for longer battery life) |
| Relative humidity | 0…95 % |
| Operating altitude | 0...3000 m |
| Acoustic level | 45 dBA |
| Colour | Black |
| Crest factor | 3 : 1 |
| Number of rack unit | 2 U |
| IP protection | IP20 |
| Backup time | 10-30 min |
| Output overload operation | 110% only audible warning, 110-130% for 30 sec, 130% for 100 ms |
| Extended Autonomy | External Battery Box (optional) |
| Input Power Factor at Full Load | 0.99 |
| Voltage THD at rated linear load | manje od 2% (linear load), manje od 8% (non-linear load) |
| Cooling | Fan cooling |
Više informacija
Rated power
3.600 VA
Active power
3,240 W
The power factor
0,9
Technologies
Online Transformer-free Converter with Double Conversion (VFI-SS-111)
Cooling
Fan cooling
Audible noise
< 45 dBA at a distance of 1 m
Positioning

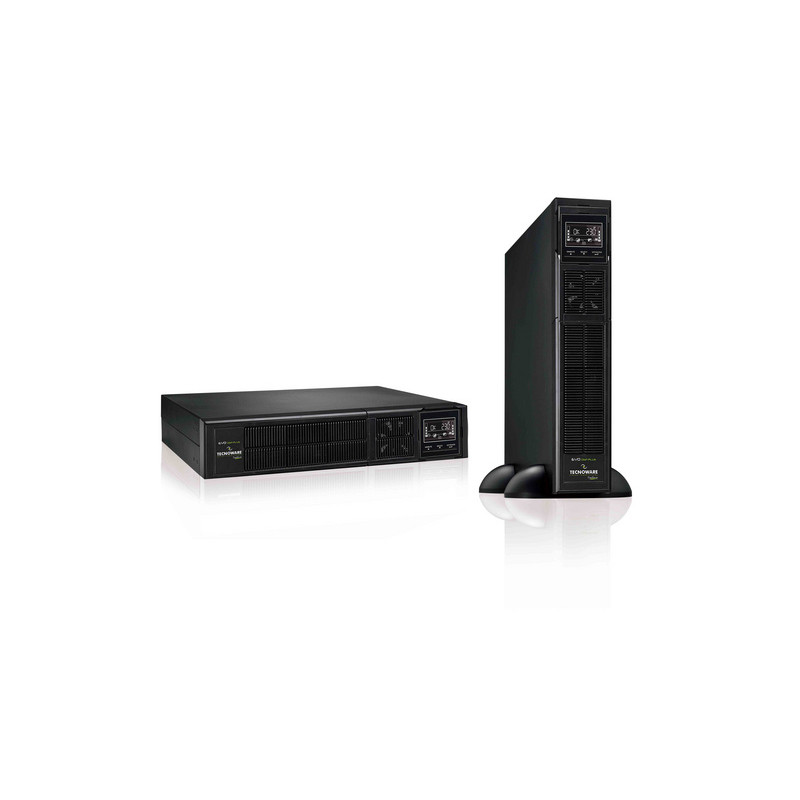

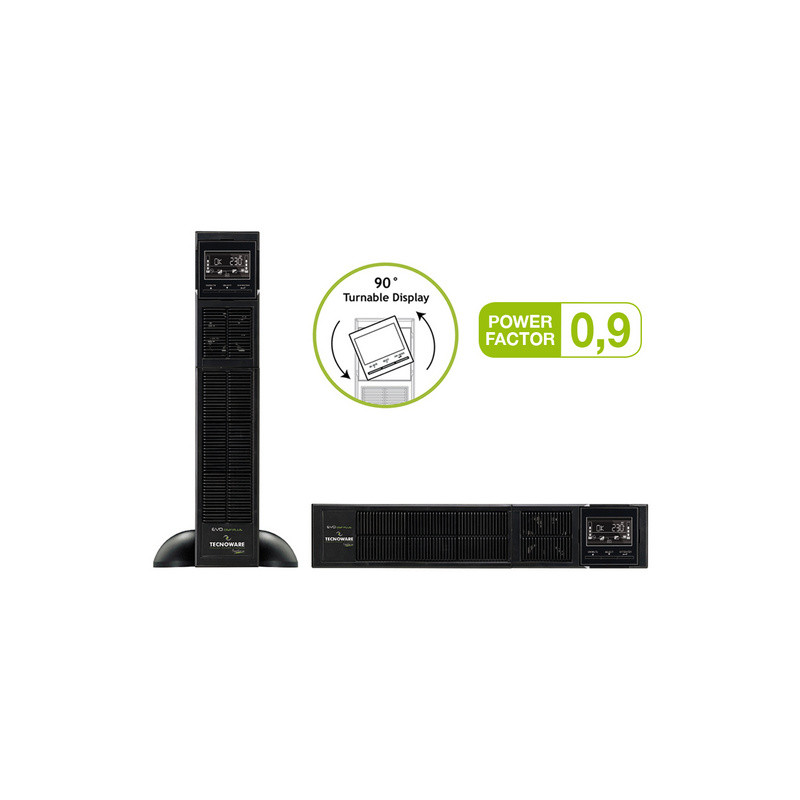

Placement in an upright position or in a 19-inch rack (2U)
Number of phases
1F+N
Rated voltage
208 VAC/220 VAC/230 VAC/240 VAC (optional)
Static voltage
Linear load regulation %100 ±1% (online mode and battery)
Voltage
CNI at rated linear load <2% (linear load), <8% (non-linear load)
The Cross factor
3:1
Frequency
50/60 Hz (optional)
Free rotation speed
±0.2 Hz
The signal form of the inverter
The sine wave
The possibility of overload
110 % audible warning only, 110-130% for 30 seconds, >130% for 100 ms
Efficiency
of 94%, calculated in double conversion mode up to 100% load according to standard 62040-3.
Transfer time
0 ms (online)
Lead-acid type, sealed, maintenance-free
Backup time (typical)
10-30 min.
Extended autonomy
External battery compartment (optional)
Operating temperature
From 0 to 55 °C (recommended from 20 to 25 °C)
Humidity
< 95% non-condensing
Maximum height
3000 m
IP protection
IP20
3.600 VA
Active power
3,240 W
The power factor
0,9
Technologies
Online Transformer-free Converter with Double Conversion (VFI-SS-111)
Cooling
Fan cooling
Audible noise
< 45 dBA at a distance of 1 m
Positioning
Placement in an upright position or in a 19-inch rack (2U)
Number of phases
1F+N
Rated voltage
208 VAC/220 VAC/230 VAC/240 VAC (optional)
Static voltage
Linear load regulation %100 ±1% (online mode and battery)
Voltage
CNI at rated linear load <2% (linear load), <8% (non-linear load)
The Cross factor
3:1
Frequency
50/60 Hz (optional)
Free rotation speed
±0.2 Hz
The signal form of the inverter
The sine wave
The possibility of overload
110 % audible warning only, 110-130% for 30 seconds, >130% for 100 ms
Efficiency
of 94%, calculated in double conversion mode up to 100% load according to standard 62040-3.
Transfer time
0 ms (online)
Lead-acid type, sealed, maintenance-free
Backup time (typical)
10-30 min.
Extended autonomy
External battery compartment (optional)
Operating temperature
From 0 to 55 °C (recommended from 20 to 25 °C)
Humidity
< 95% non-condensing
Maximum height
3000 m
IP protection
IP20
