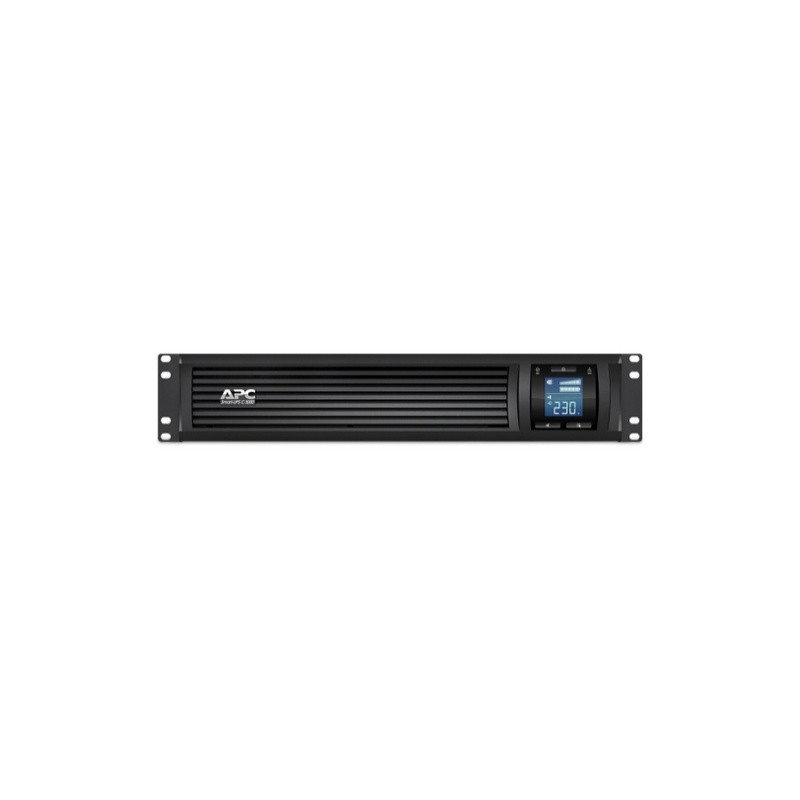

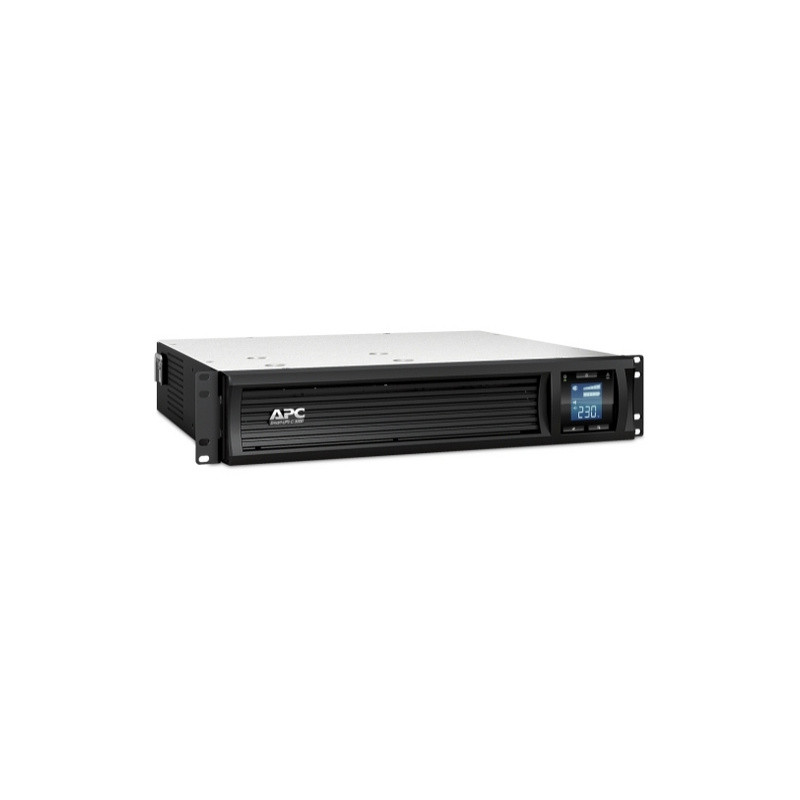

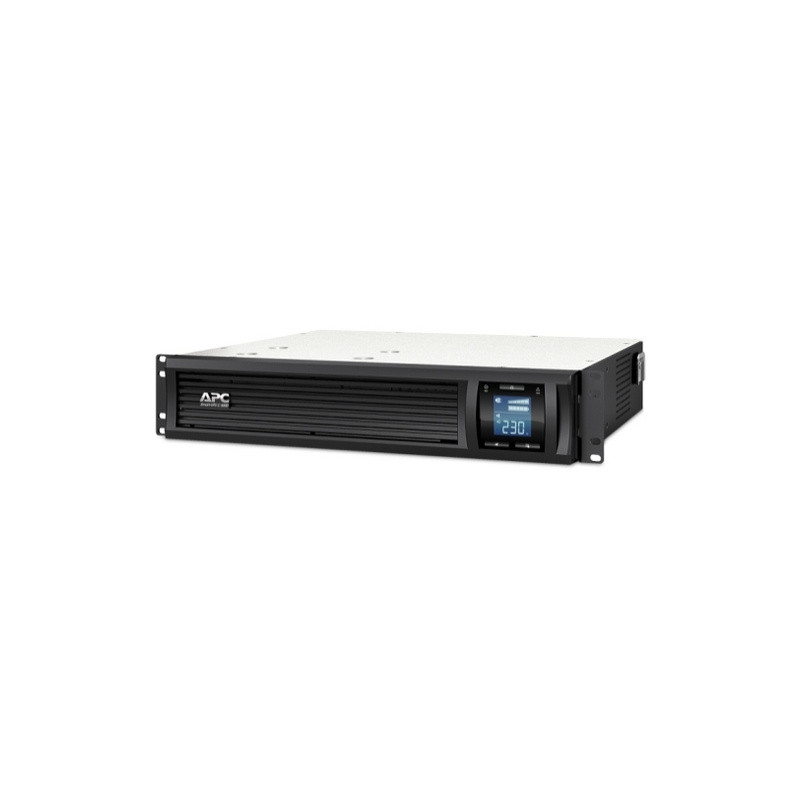

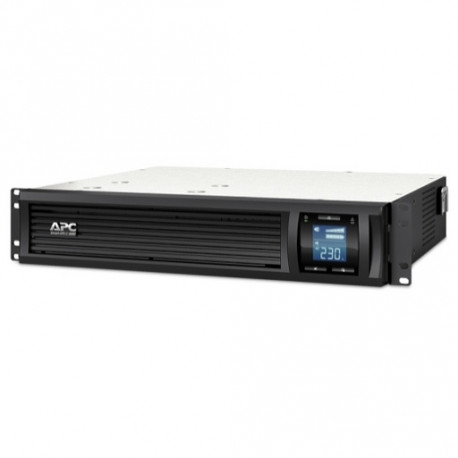

APC Smart-UPS C 3000VA Rack mount LCD 230V

Specifikacije

Width

48.00 cm

Height

8.90 cm

Depth

67.00 cm

Battery Recharge Time

3 h

Battery Life

3...5 year(s)

Battery type

Lead-acid battery

Type of execution

Rackmount

Main Input Voltage

230 V

Main Output Voltage

230 V

Rated power in W

2.1 kW

Rated power in VA

3 kVA

Product or component type

Uninterruptible power supply (UPS)

Input Connection Type

IEC 320 C20

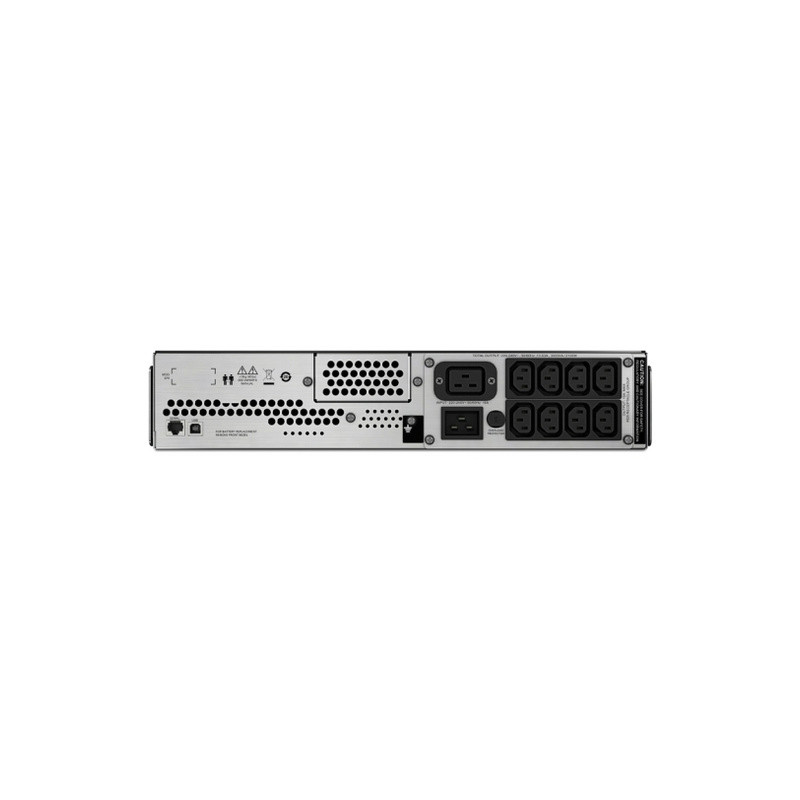

Output Connection Type

8 IEC 320 C13, 2 IEC Jumpers, 1 IEC 320 C19

Number of cables

1

Provided equipment

Documentation CD, Installation guide, Rack mounting brackets, USB cable

Redundant

No

net. Weight

41.00 kg

Mounting preference

Lower

Mounting mode

Rack-mounted

USB compatible

Yes

Network frequency

50/60 Hz +/- 3 Hz auto-sensing

Input voltage limits

180...287 V

Maximum configurable power in VA

3000 VA

Maximum configurable power in W

2100 W

Output frequency

50 Hz synchronized with the power grid

UPS type

Line-Interactive

Wave type

Sine wave

Transfer time

Typical time: 8 ms; maximum: 10 ms

Product certifications

C-Tick, CE, EAC, GOST, IRAM, SABS, VDE

Standards

EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018

Ambient air temperature for operation

0..40 °C

Relative humidity

0…95 %

Operating altitude

0...10000 ft

Ambient air temperature for storage

-15…45 °C

Storage Relative Humidity

0…95 %

Storage altitude

0.0000000000…15240.0000000000 m

Acoustic level

42 dBA

Alarm

Alarm when on battery : distinctive low battery alarm : configurable delays

Surge energy rate

300 J

Battery charger power

163 W nominal

Mounting location

Front

Number of power module free slots

0

Number of battery filled slots

0

Сontrol panel

Multifunction LCD status and control console

Noise suppression

Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Number of battery free slots

0
