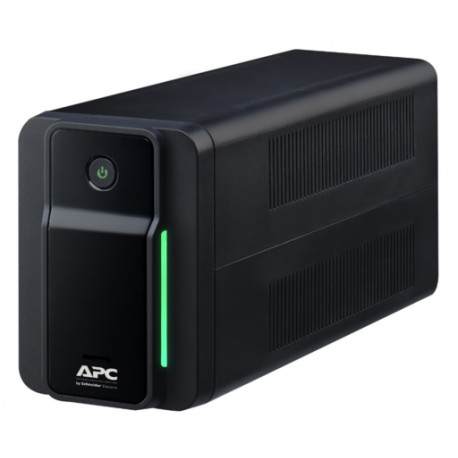

APC Back-UPS 500VA, 230V, AVR, IEC Sockets

Specifikacije

Width

9.80 cm

Height

13.80 cm

Depth

31.00 cm

Battery Recharge Time

8 h

Battery Life

3...5 year(s)

Battery type

Lead-acid battery

Type of execution

Tower

Main Input Voltage

230 V

Main Output Voltage

230 V

Rated power in W

300 W

Rated power in VA

500 VA

Product or component type

Uninterruptible power supply (UPS)

Number of cables

1

Provided equipment

User manual

Battery voltage

12 V

Redundant

No

net. Weight

4.20 kg

Mounting preference

No preference

Mounting mode

Not rack-mountable

USB compatible

No

Network frequency

50/60 Hz +/- 5 Hz auto-sensing

Input voltage limits

140...300 V

Maximum configurable power in VA

500 VA

Maximum configurable power in W

300 W

Output frequency

50/60 Hz +/- 1 Hz sync to mains

Wave type

Stepped approximation to a sinewave

Transfer time

6 ms typical : 10 ms maximum

Product certifications

CE, EAC

Standards

EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018

Ambient air temperature for operation

0..40 °C

Relative humidity

0…95 %

Operating altitude

0...3000 m

Ambient air temperature for storage

-15…40 °C

Storage Relative Humidity

0…95 %

Storage altitude

0…3000 m

Acoustic level

40 dBA

Surge energy rate

273 J

Number of power module free slots

0

Number of battery filled slots

0

Сontrol panel

LED Status display with on line : on battery

Number of battery free slots

0

Fiscalization 2.0 Article

G46.50.22

Number of power module filled slots

0
