- Width
- 10.41 cm
- Height
- 29.21 cm
- Depth
- 40.90 cm
- Battery Recharge Time
- 16 h
- Cable Length
- 1.50 m
- Mounting Position
- Vertical
- Battery Life
- 3...5 year(s)
- Type of execution
- Tower
- Main Input Voltage
- 230 V
- Main Output Voltage
- 230 V
- Rated power in W
- 1320W
- Rated power in VA
- 2.2 kVA
- Product or component type
- Uninterruptible power supply (UPS)
- Input Connection Type
- Schuko
- Output Connection Type

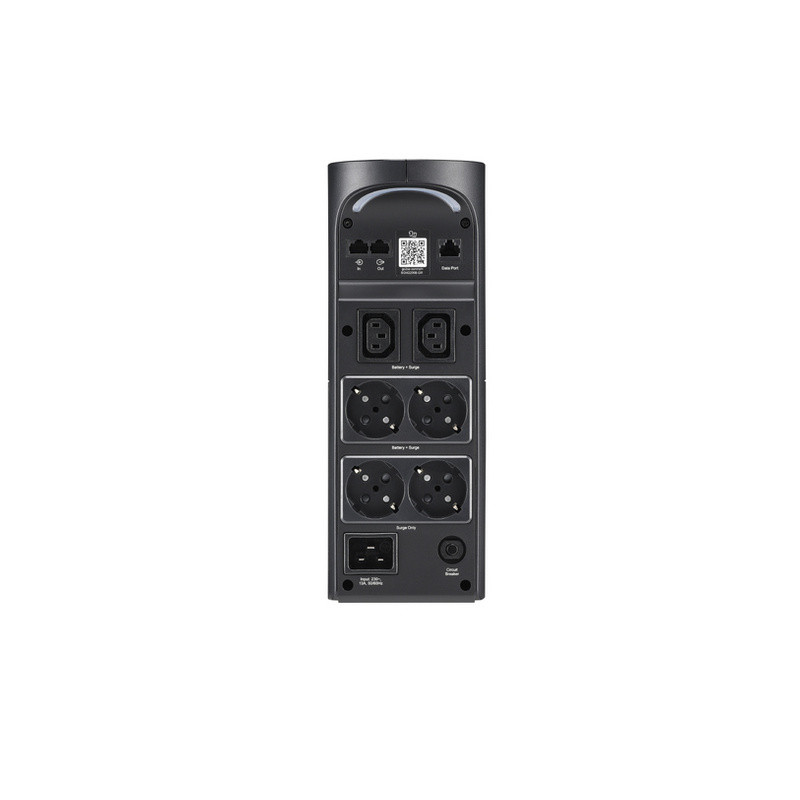

- 2 Schuko, 2 IEC 60320 C13
- Number of cables
- 1
- Provided equipment
- Safety guide USB cable power cable
- Battery voltage
- 24 V
- Redundant
- No
- net. Weight
- 12.34 kg
- Mounting preference
- No preference
- Mounting mode
- Not rack-mountable
- USB compatible
- Yes
- Network frequency
- 50/60 Hz +/- 3 Hz
- Input voltage limits
- 168...302 V
- Maximum configurable power in VA
- 2200 VA
- Maximum configurable power in W
- 1320 W
- Output frequency
- 50/60 Hz +/- 3 Hz sync to mains
- UPS type
- Line-Interactive
- Wave type
- Sine wave
- Transfer time
- Typical time: 8 ms maximum: 10 ms
- Product certifications
- CE, CB
- Ambient air temperature for operation
- 0..40 °C
- Relative humidity
- 0…95 %
- Operating altitude
- 0...10000 ft
- Ambient air temperature for storage
- -15…40 °C
- Storage Relative Humidity
- 0…95 %
- Storage altitude
- 0.0000000000…3048.0000000000 m
- Acoustic level
- 45 dBA
- Alarm
- Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
- Surge energy rate
- 1080 J
- Battery charger power
- 12 W rated
- Number of battery replacement quantity
- 1
- Number of battery filled slots
- 1
- Colour
- Black
- Сontrol panel
- Multifunction LCD status and control console
- Noise suppression
- Full time multi-pole noise filtering : 5% of IEEE surge let-through : zero clamping response time: instantaneous
- Switching current capacity
- 15 A
- Max. input current
- 12 A
- Overcurrent protection
- 15 A
- Mounting support
- Floor
- Input harmonic distortion
- Less than 3 % for full load
- Fiscalization 2.0 Article
- G46.50.22
