Noctua

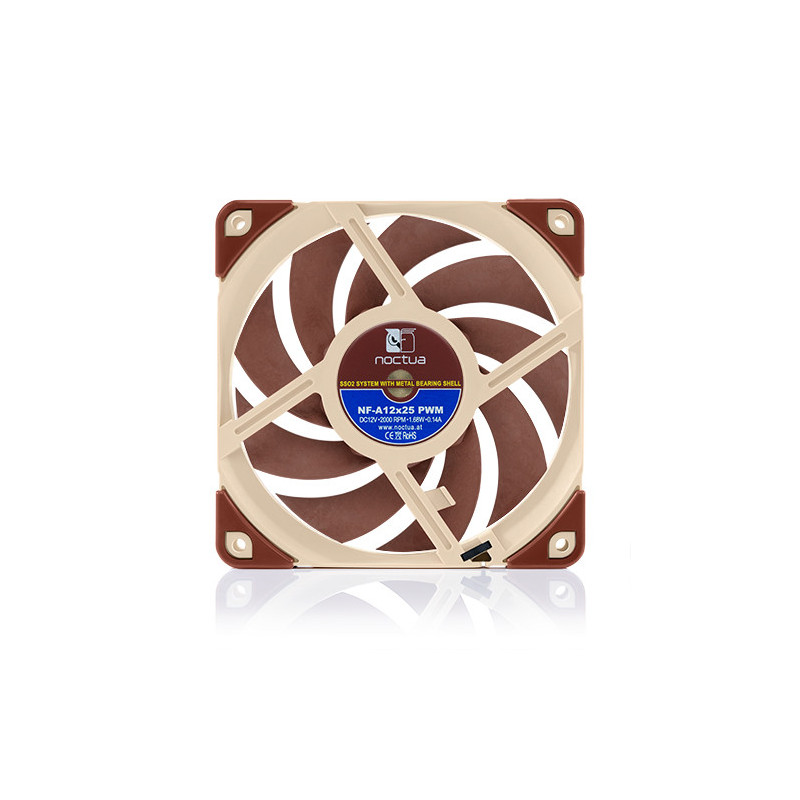

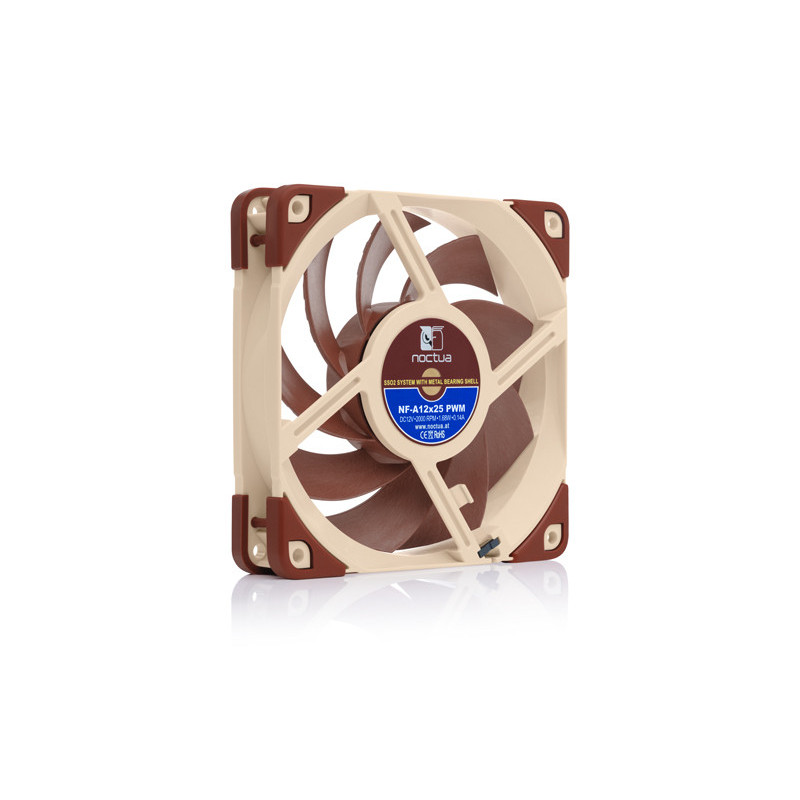

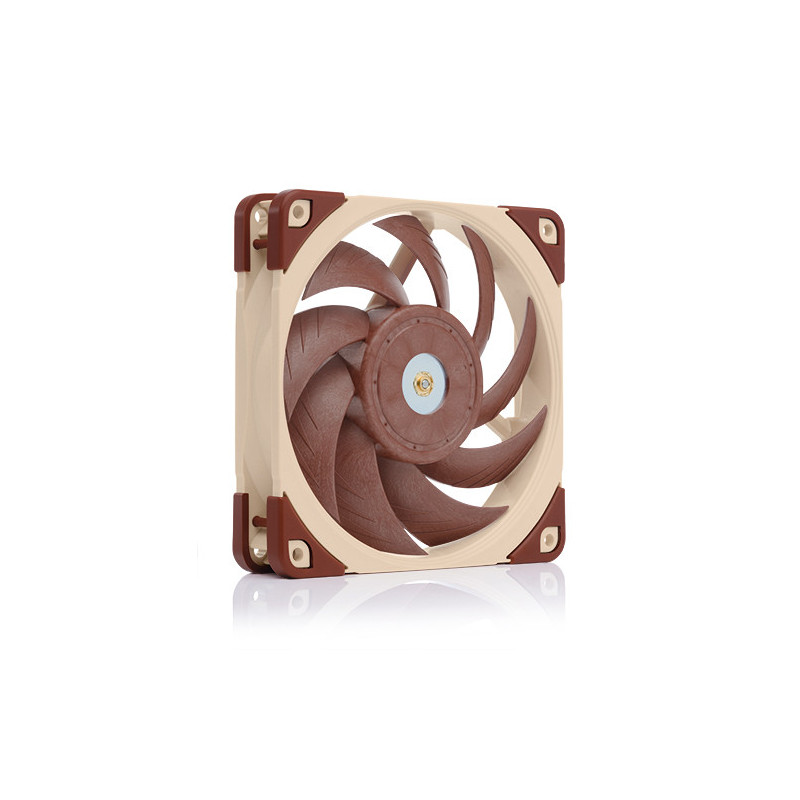

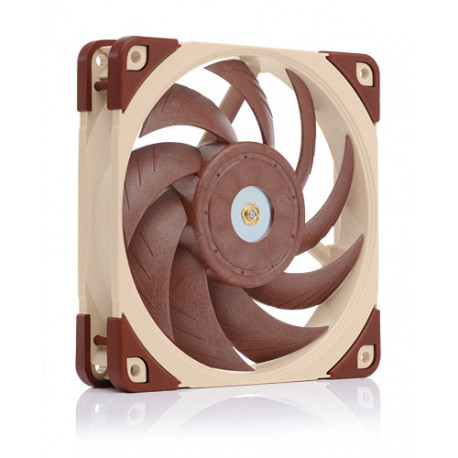

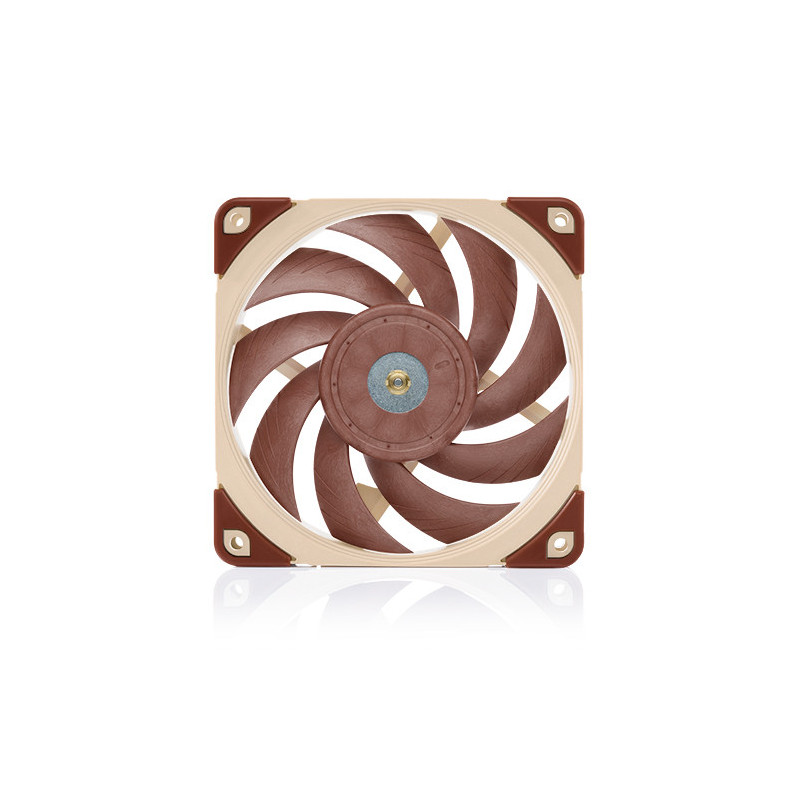

Noctua NF-A12x25 PWM

9010018100396

Novi proizvod

Dobavljivo 16 kom kod dobavljača

Isporuka: 10 - 12 radnih dana

The NF-A12x25 is a highly optimised next-generation 120mm fan that integrates Noctua’s latest innovations in aerodynamic engineering in order to achieve an unprecedented level of quiet cooling performance.

Vaša prava iz zakonskog jamstva

Uplata na račun

38,88 €s PDV-omCijena na 10.9.2026.: 38,50 €

Plaćanje karticama

42,77 €

Cijena na 10.9.2026.: 42,35 €
12 × 3,56 € 6 × 7,13 € 3 × 14,26 €

Okvirna cijena po ratama karticama, s PDV-om

Isporuka: 10 - 12 radnih dana

Besplatno preuzimanje u Zagrebu: Mail Boxes Etc., Radnička cesta 20

Dodaj u listu želja

  • Diners Club International
  • Discover
  • Dinacard
  • WSPay
  • Google Pay
  • Visa
  • Mastercard
  • Maestro
  • Diners
  • Discover
  • DinaCard
  • KEKS Pay
  • PayPal
  • Google Pay
  • Bitcoin

Opis

General
Notes and warnings
NF-A12x25 further reading:
button Performance comparison to NF-F12 and NF-S12A
button Technical backgrounds and manufacturing challenges
button Interview with Lars Strömbäck (Noctua CTO)
button Which 120mm fan is right for me?
FAN Specification
Size
120x120x25 mm
Mounting hole spacing
105x105 mm
Connector
4-pin PWM
Bearing
SSO2
Blade Geometry
A-Series with Flow Acceleration Channels
Frame Technology
AAO (Advanced Acoustic Optimisation)
Material
Sterrox® LCP
Rotational Speed (+/- 10%)
2000 RPM
Rotational Speed with L.N.A. (+/- 10%)
1700 RPM
Min. Rotational Speed (PWM, +/-20%)
450 RPM
Airflow
102,1 m³/h
Airflow with L.N.A.
84,5 m³/h
Acoustical Noise
22,6 dB(A)
Acoustical Noise with L.N.A.
18,8 dB(A)
Static Pressure
2,34 mm H₂O
Static Pressure with L.N.A.
1,65 mm H₂O
Max. Input Power
1,68 W
Max. Input Current
0,14 A
Voltage
12 V
Voltage PWM signal
5 V
MTTF
> 150.000 h

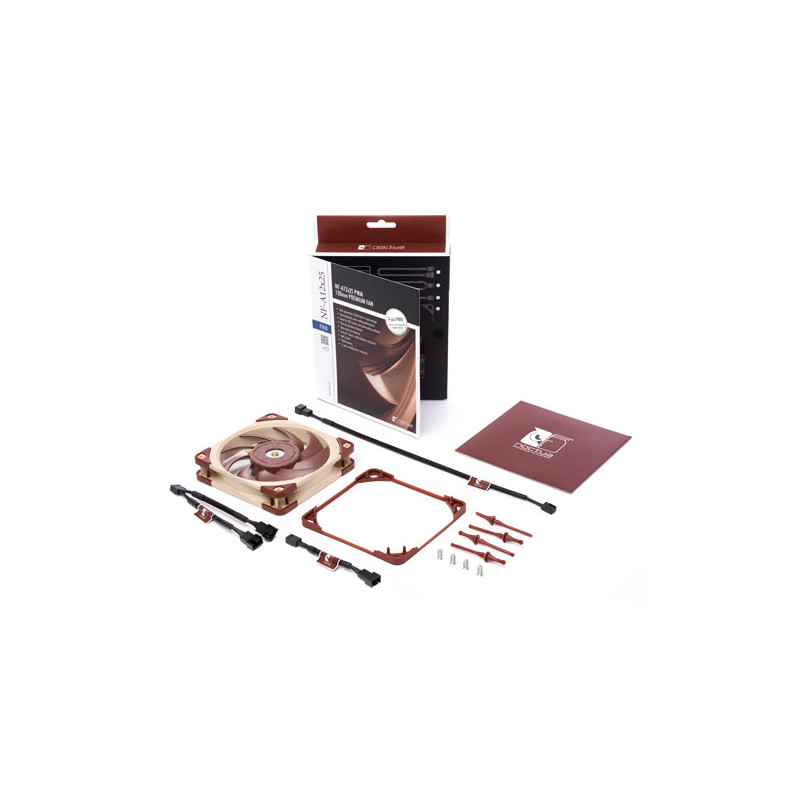

Scope of delivery
  • Low-Noise Adaptor (L.N.A.)
  • 4-pin y-cable
  • 30cm extension cable
  • NA-AV2 anti-vibration mounts
  • Anti-vibration gasket for water cooling radiators
  • Fan screws
