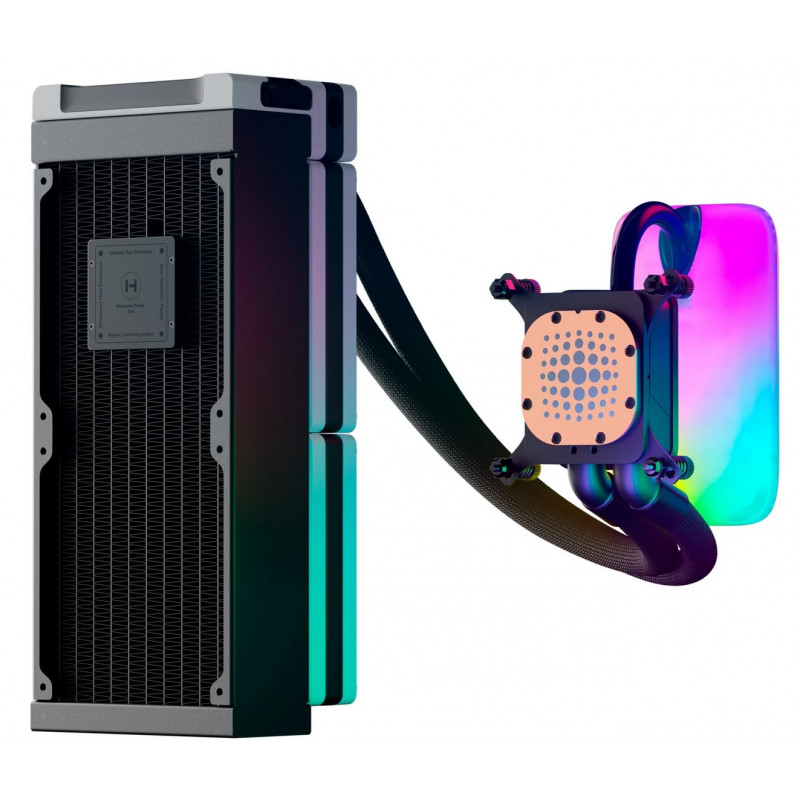

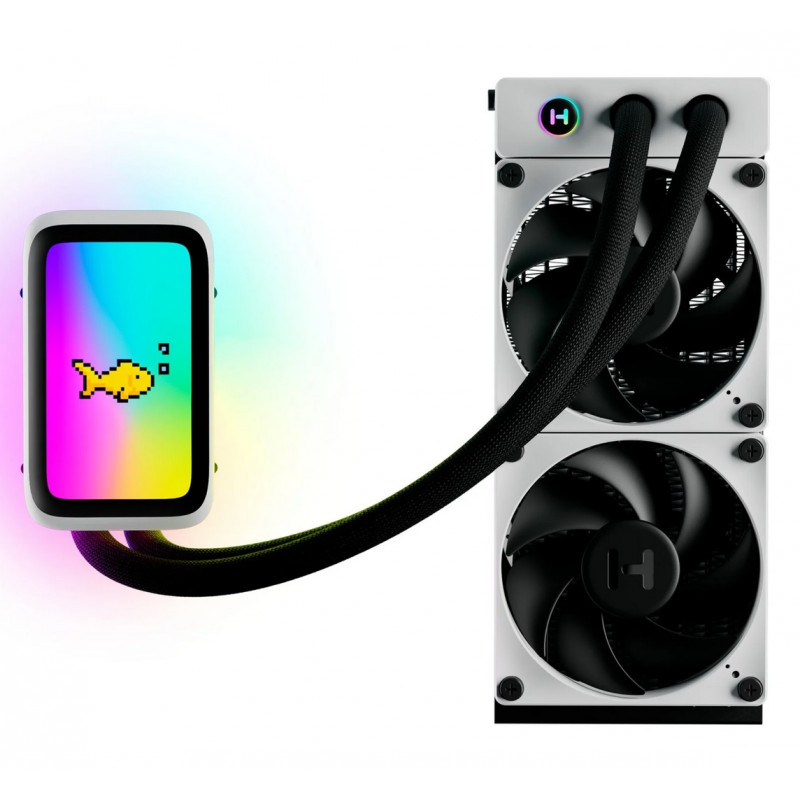

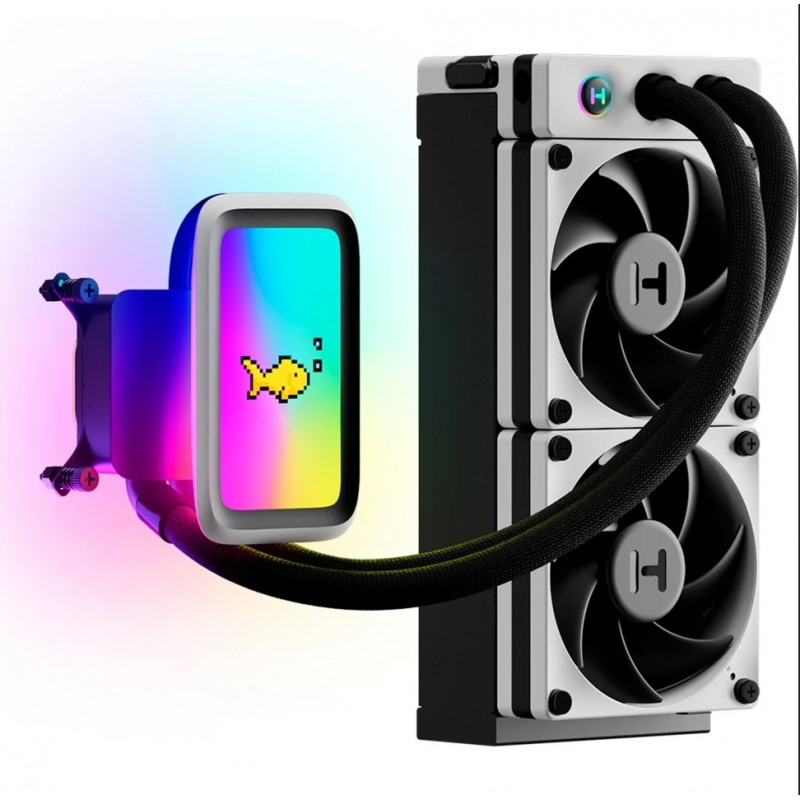

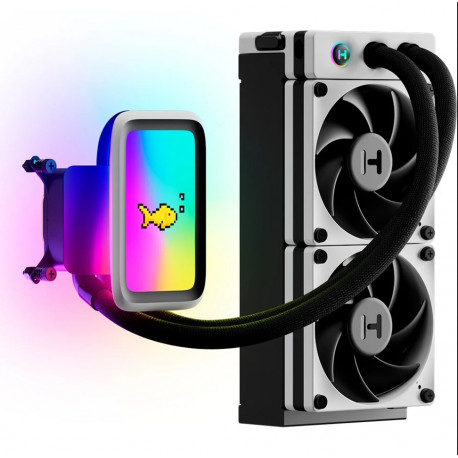

HYTE Q60 THICC 240mm AIO, water cooling (black/white)

Weight - 5.1 lbs

CPU Compatibility - Intel Socket LGA 1700, 1200, 115X, 2011*, 2066* - AMD Socket AM5, AM4, TR4* - *Optional brackets, please contact support

Heat Exchanger Dimensions - 120 x 288 x 52 mm

Heat Exchanger Material - Aluminum

Heat Exchanger Technology - Parallel Dual Pass

Cold Plate Dimensions - 56 x 56 x 1.5 mm

Cold Plate Material - Copper

Cold Plate Technology - Micro-Skived Fin

Magnetic Interchangeable Cold Plate Cover - Anodized Aluminum

Tube Length - 400 mm

Tube Material - CIIR Rubber with Nylon Sleeving

Total CPU Block + LCD Screen Height - 105 mm

Fans - THICC FP12 x 2

Fan Dimensions - 120 x 120 x 32 mm

Fan Speed - 0 – 3,000 RPM

Air Flow - 105.8 CFM

Static Pressure - 8.14 mm-H2O

Noise Level -  <10.0* - 47.3 dBA - *Measuring below 10 dBA was not possible in our test chamber due to the noise floor

Bearings - Fluid Dynamic Bearing

Fan Blade Material - Fiberglass Reinforced Liquid Crystal Polymer (LCP)

Fan Frame Material - Polycarbonate

Fan Connector - Nexus Link Type-M

Nexus-Link Channels - 1x Type-C, 1x Type-M

Maximum Devices – Single Channel - 18

Maximum Devices – All Channels - 34

Maximum Current – Single Channel - 8A/12V

Maximum Current – All Channels - 15A/12V

Maximum PSU Power Draw - Up to 180W depending on the number of connected Nexus Link devices

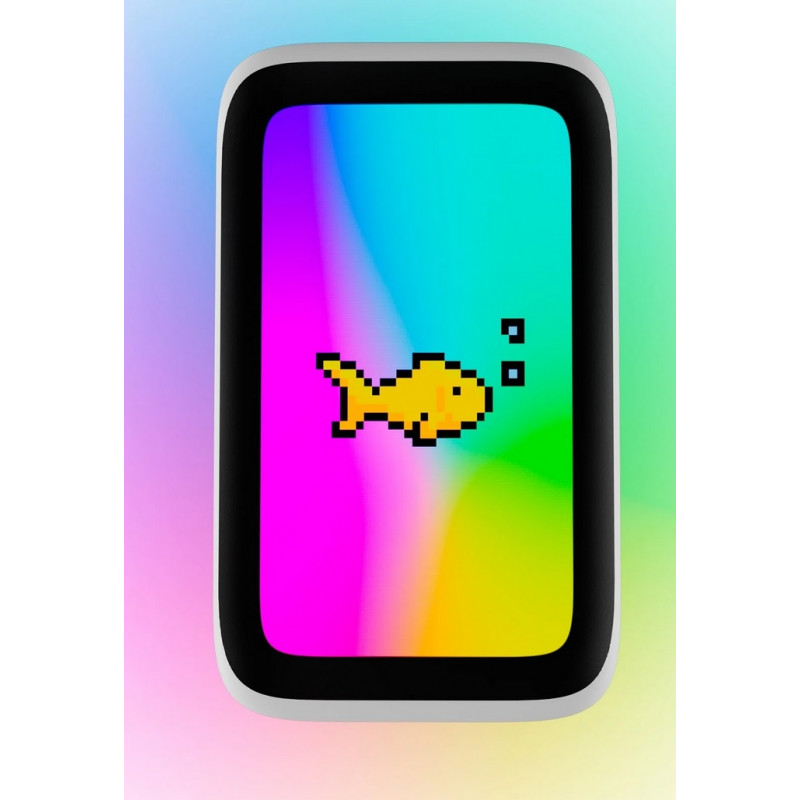

LCD Size - 5 Inches

LCD Mounting Orientation - Portrait Only

LCD Resolution - 720 x 1280 (293 PPI)

LCD Panel Type - IPS

LCD Hinge - Double-Hinged Floating Spout

LCD Refresh Rate - 60 Hz

LCD Brightness - 300 nits

Bias Lighting - 42-Pixel qRGB Array

Logo Lighting - 4-Pixel qRGB Array

Pump RPM - 2,000 – 4,500 RPM

Pump Bearing - Ceramic

Pump Impeller Diameter - 24 mm

Coolant Operation Temperatures - -10 to 60 C

Processor - Quad-Core 64-bit ARM Cortex

Speed - 1.3 GHz

RAM - 2GB DDR4 @2666 MT/s

Storage - 32GB eMMC

Graphics Engine - 500 MHz

Co-Processor - 32-Bit ARM Cortex-M4

Input Connections - USB 2.0 Header, PWM, 6-Pin PCIe Power

Included Accessories - Intel Mounting Kit + AMD Mounting Kit + Fan Screws

Thermal Paste - Yes, Pre-Applied

Nexus Powered - Yes

Warranty - 6 years

Sku - FAN-HYTE-Q60-BW
