ASRock

ASRock B550 Phantom Gaming 4

90-MXBCY0-A0UAYZ

4710483931499

Novi proizvod

Dobavljivo 17 kom kod dobavljača

Isporuka: 10 - 12 radnih dana

The ASRock B550 B550 Phantom Gaming 4 is based on the AMD-B550 chipset and supports AMD processors for the AM4 socket. It has four DDR4 slots for up to 128 GB of RAM.

Sve specifikacije

Vaša prava iz zakonskog jamstva

Uplata na račun

105,51 €s PDV-omCijena na 10.9.2026.: 102,52 €

Plaćanje karticama

116,06 €

Cijena na 10.9.2026.: 112,77 €
12 × 9,67 € 6 × 19,34 € 3 × 38,69 €

Okvirna cijena po ratama karticama, s PDV-om

Isporuka: 10 - 12 radnih dana

Besplatno preuzimanje u Zagrebu: Mail Boxes Etc., Radnička cesta 20

Dodaj u listu želja

  • Diners Club International
  • Discover
  • Dinacard
  • WSPay
  • Google Pay
  • Visa
  • Mastercard
  • Maestro
  • Diners
  • Discover
  • DinaCard
  • KEKS Pay
  • PayPal
  • Google Pay
  • Bitcoin

Specifikacije

Utor za procesor
Priključnice AM4

Opis

Detailed details
Type Motherboard
EAN 4710483931499
Manufacturer No. 90-MXBCY0-A0UAYZ
base AT 4
Max. Supported CPUs 1
operating system support Windows 10 ready
processor Supported models 3rd generation AMD AM4 processors.
Chipset AMD B550
Slots PCIe x16 2nd
PCIe x1 2nd
BIOS 256 MBit AMI UEFI BIOS
Form factor ATX
use PC
power adapter ATX12V (24-pin + 8-pin + 4-pin)
Storage maximum 128 GB
Number of sockets 4x DDR4
supported storage type SDRAM-DDR4
supported standards DDR4-4533 (OC) / 4466 (OC) / 4400 (OC) / 4333 (OC) / 4266 (OC) / 4200 (OC) / 4133 (OC) / 4000 (OC) / 3866 (OC) / 3800 (OC ) / 3733 (OC) / 3600 (OC) / 3466 (OC) / 3200/2933/2667/2400/2133 MHz
channels 2nd
Maximum storage ranks 8th
ECC is supported Yes
Memory controller in CPU Yes
Maximum data density 8192 Mbit

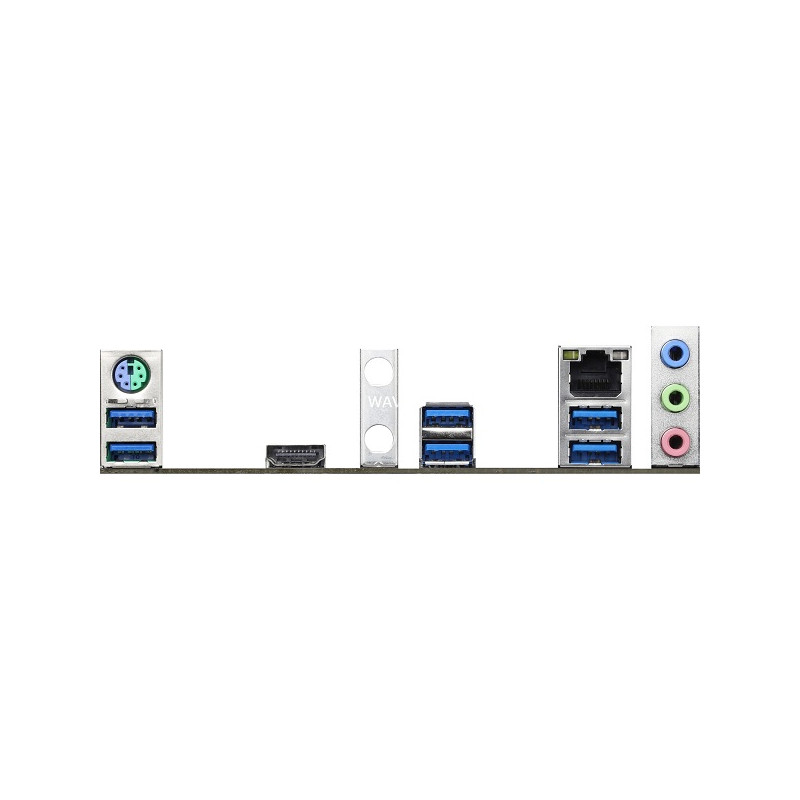

Connections (external) Mouse / keyboard combo (PS / 2) 1
USB-A 3.2 Gen 1 (5 Gbit / s) 6
The name USB 3.2 Gen 1 corresponds to the earlier names USB 3.1 Gen 1 or USB 3.0.
HDMI 1
microphone 1
Line-in 1
Line-out 1
RJ-45 1
Connections (internal) SATA 6
M.2 2nd
M.2 module key M
M.2 WiFi 1
M.2 interface PCIe
M.2 length 42 - 110 mm
RGB LED header 2nd
addressable RGB LED header 2nd
4-pin PWM fan 6
Connections (optional) USB 3.2 Gen 1 (5 GbIt / s) 2nd
USB 2.0 4th
Serial 1
TPM Yes
RGB standard RGB LED
SATA controller AMD B550
directly usable RAID level 0, 1, 10
USB controller AMD B550
Onboard graphics The graphics connections on the mainboard can only be used when using a CPU with an integrated graphics chip
Sound Realtek ALC1220
LAN Dragon RTL8111H GbE LAN
Features CrossFireX
Further information A BIOS update may be required to support the latest processor cores.

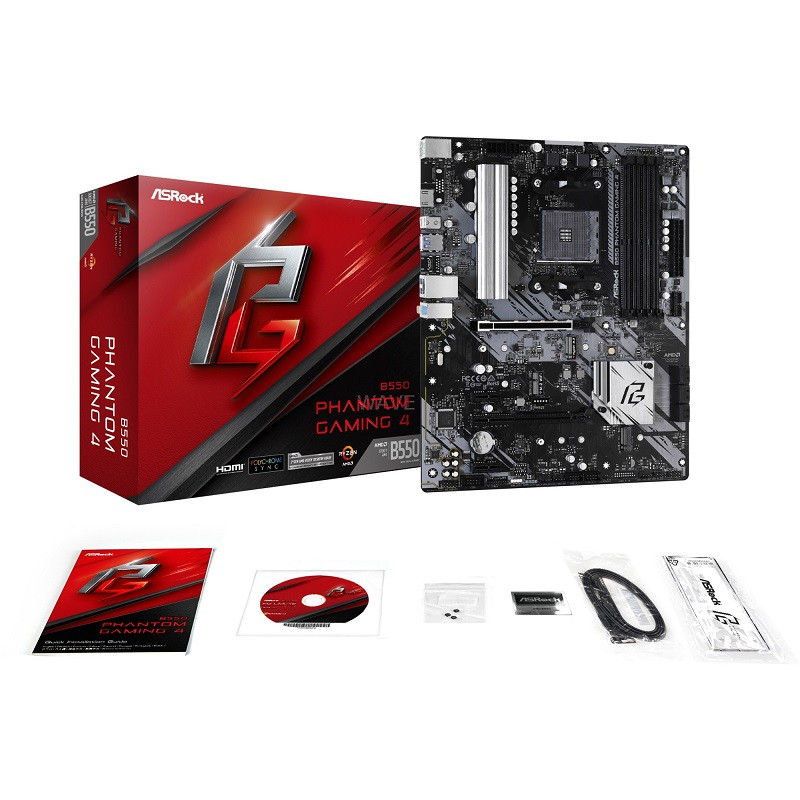

equipment available 2x SATA cable, 3x screws for M.2 socket, 1x spacer for M.2 socket

Recenzije

Trenutno nema recenzija korisnika.

Napiši osvrt

ASRock B550 Phantom Gaming 4

ASRock B550 Phantom Gaming 4

The ASRock B550 B550 Phantom Gaming 4 is based on the AMD-B550 chipset and supports AMD processors for the AM4 socket. It has four DDR4 slots for up to 128 GB of RAM.
